Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the molding to the vehicle.

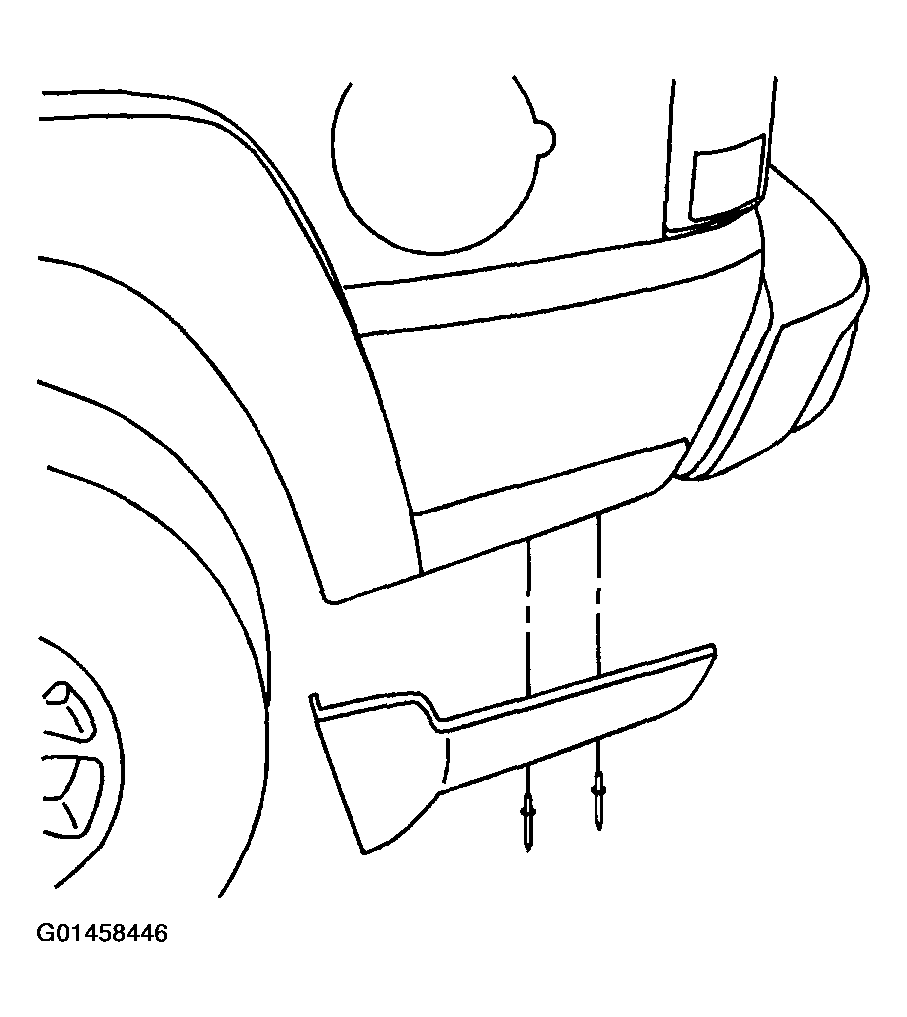

    2. Fig 1: Installing Rear Body Side Lower Rear (Molding Z-71)
    G01458446Courtesy of GENERAL MOTORS CORP.
  2. Install the 3 push-pins to the lower rear body molding.
