Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Compress the retaining clips from the inside edge of the hood while pulling on the molding.
  3. Remove the hood molding.

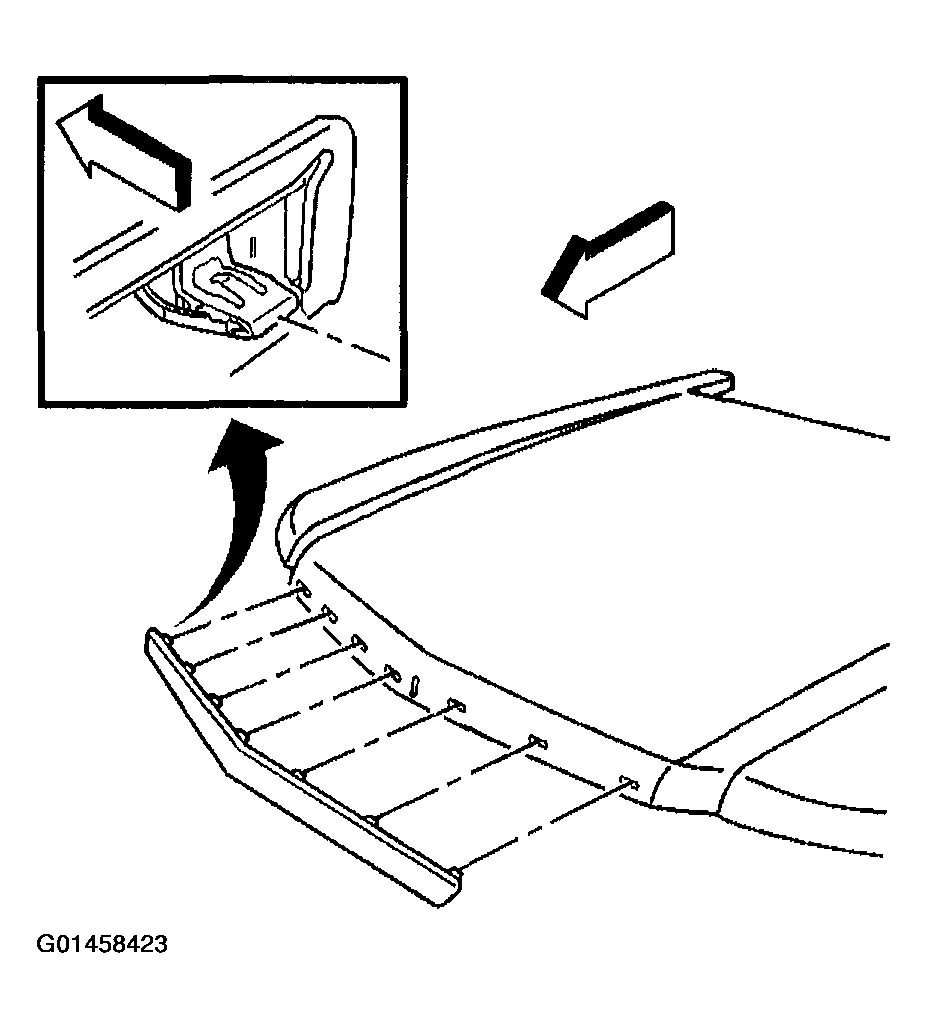

    4. Fig 1: Removing Molding - Hood Front
    G01458423Courtesy of GENERAL MOTORS CORP.
