Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use a 3M™ scotch brite molding adhesive remover disk P/N 07501 or equivalent to remove any adhesive tape on the body panel.

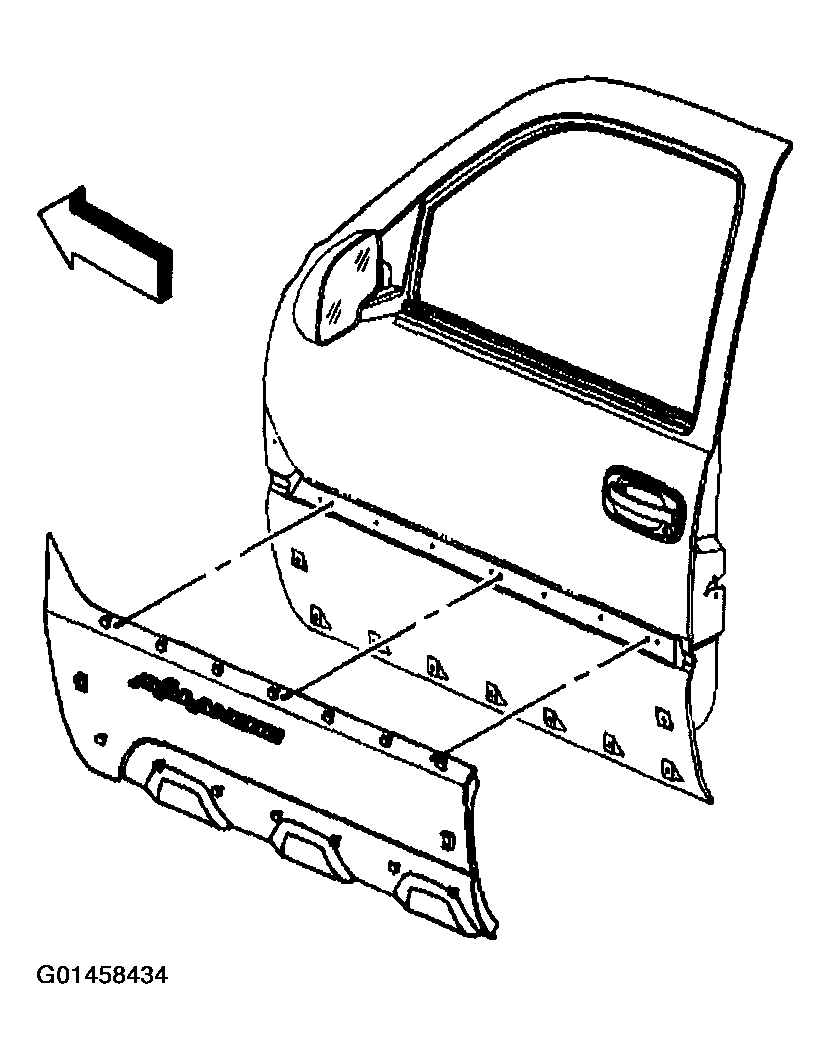

    2. Fig 1: Installing Front Door Body Side Molding
    G01458434Courtesy of GENERAL MOTORS CORP.
  2. Peel off the adhesive tape protective lining.
  3. Align the retaining clips in their respective holes.
  4. Press firmly on the molding until all the retaining clips are fully seated.
  5. Press on the top part of the molding so that the tape adheres to the body panel.
