Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert the grille lower tabs into the belt loops in the lamp support bracket.
  2. Press in the retaining clips (2) in order to secure the grille to the lamp support bracket.

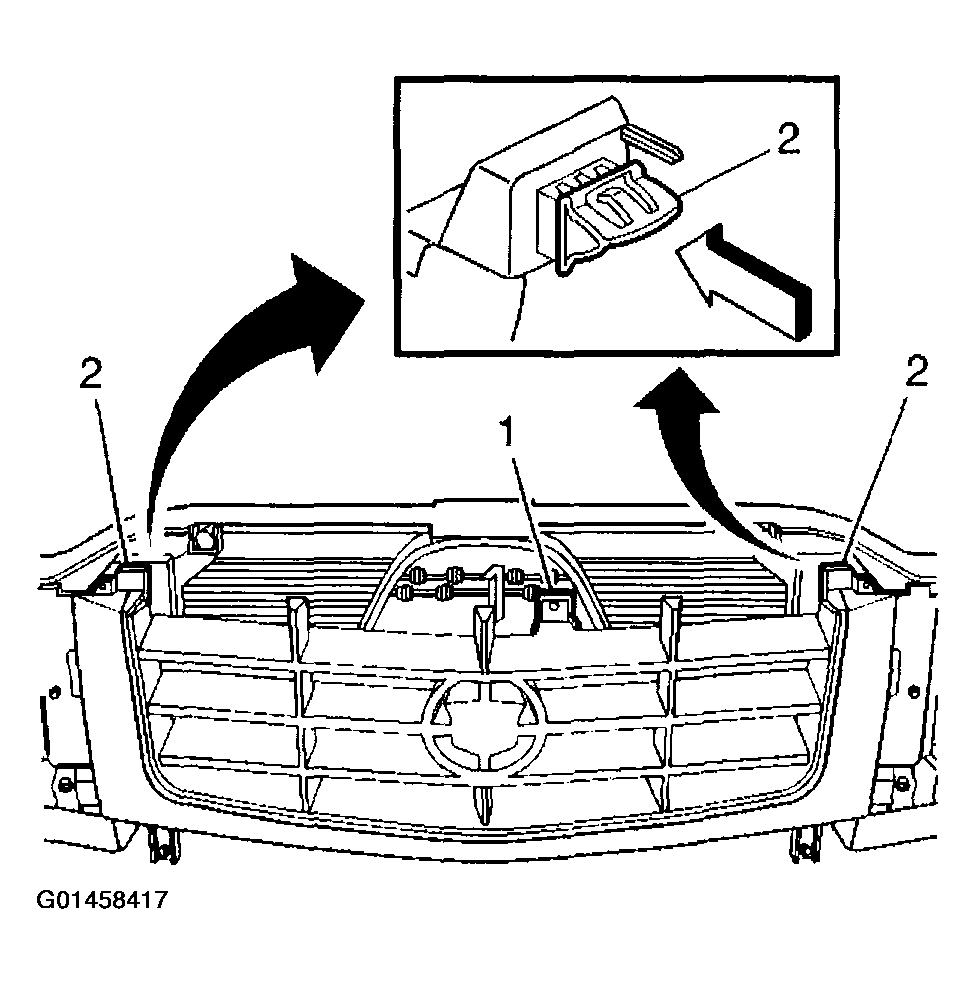

    3. Fig 1: Installing Grille Retaining Screw & Retaining Clips
    G01458417Courtesy of GENERAL MOTORS CORP.
  3. Install the grille retainer screw (1).
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

    Tighten

    1. Tighten the grille retainer screw to 9 N.m (80 lb in).
  4. Install the upper grille baffle to the vehicle.

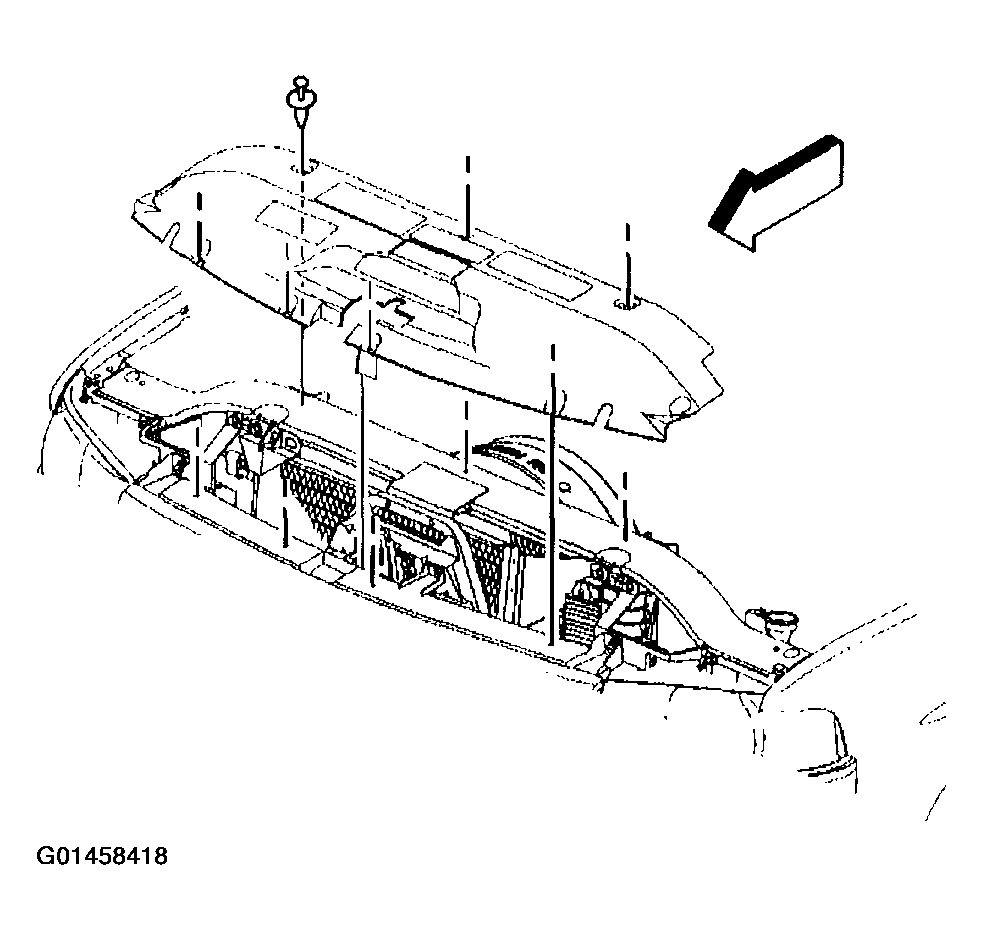

    5. Fig 2: Installing Upper Grille Baffle Push-Pin Retainers
    G01458418Courtesy of GENERAL MOTORS CORP.
  5. Install the push-pin retainers.
  6. For diesel only, install the winter cover, if removed.
  7. Close the hood.
