Range Reference

WARNING: This page is about a different car, the 2003 GMC Yukon XL, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

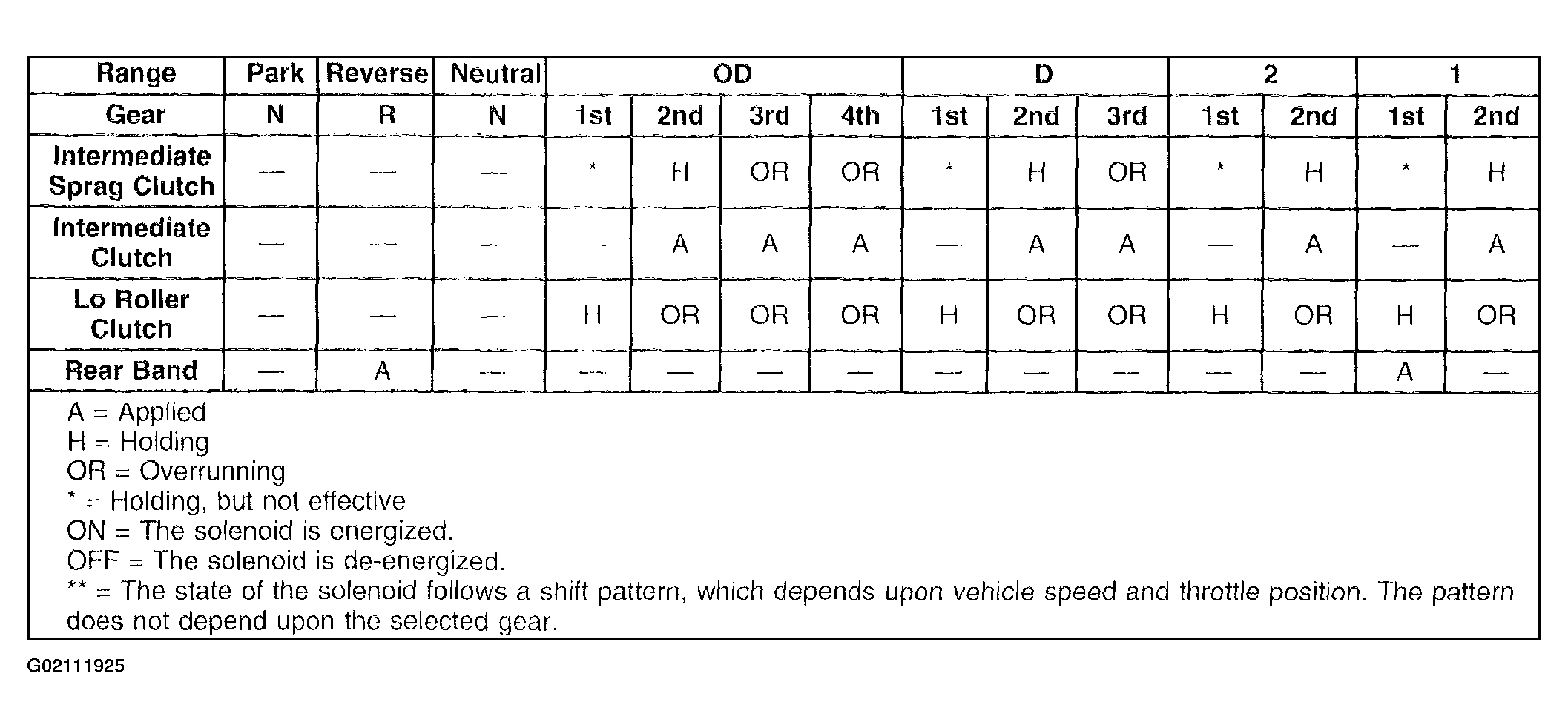

Fig 1: Range Reference Table (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

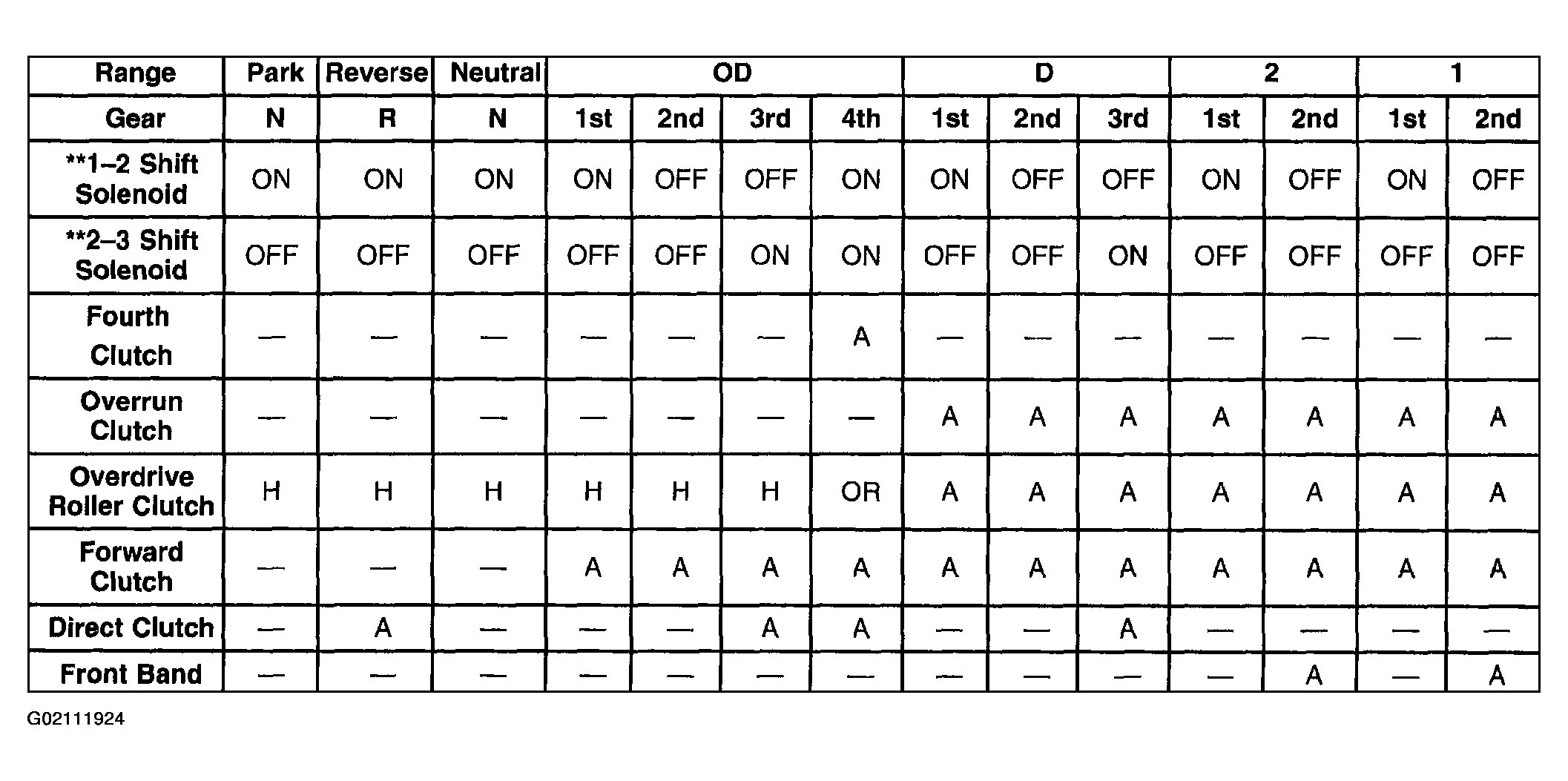

Fig 2: Range Reference Table (2 Of 2)

Courtesy of GENERAL MOTORS CORP.
