Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Yukon XL, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the output speed sensor seal with automatic transmission fluid.
  2. Install the output speed sensor (2).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the output speed sensor bolt.

    Tighten

    Tighten the bolt to 11 N.m (96 lb in).

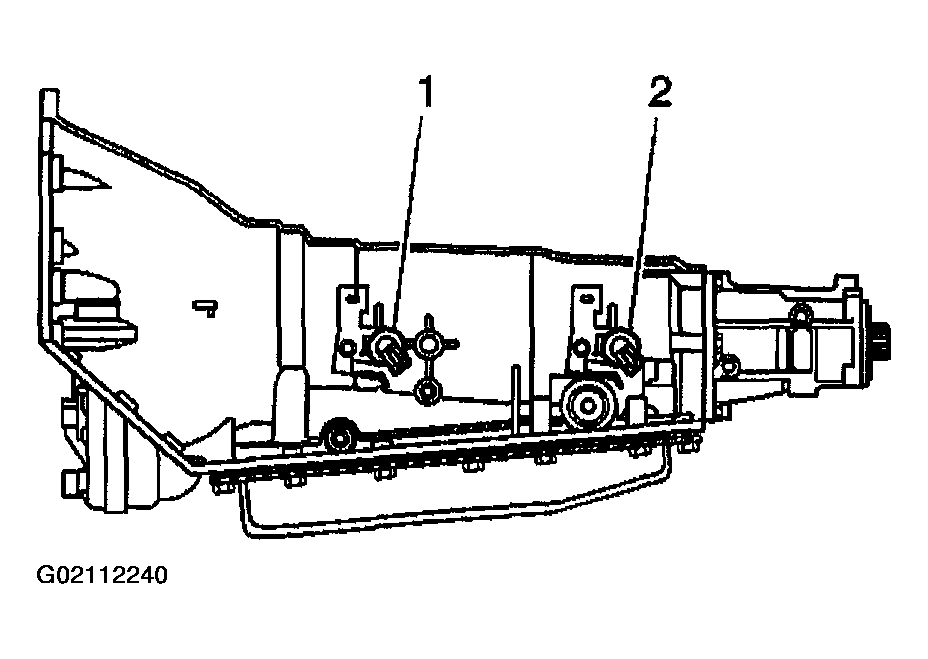

    Fig 1: Installing Output Speed Sensor & Bolt
    G02112240Courtesy of GENERAL MOTORS CORP.
  4. Connect the output speed sensor (2) electrical connector.
  5. Lower the vehicle.

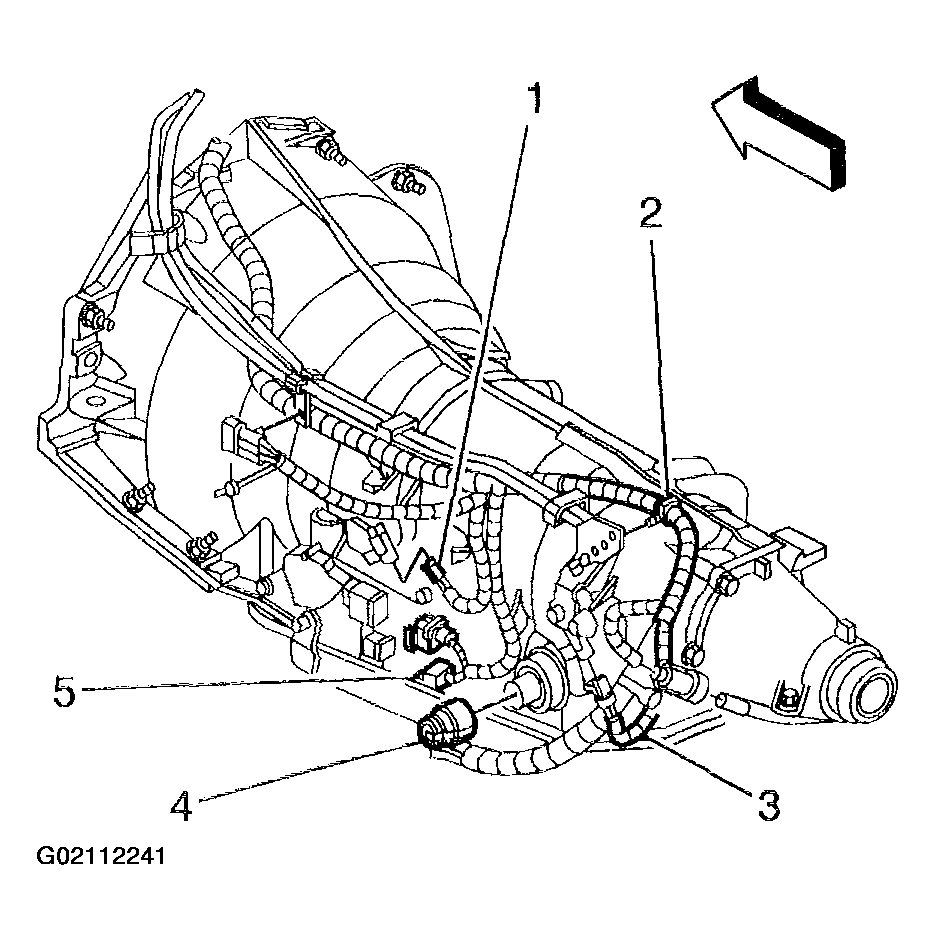

    Fig 2: Connecting Output Speed Sensor Electrical Connector
    G02112241Courtesy of GENERAL MOTORS CORP.
