Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Yukon XL, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the input speed sensor seal with automatic transmission fluid.
  2. Install the input speed sensor (1).
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the input speed sensor bolt.

    Tighten

    Tighten the bolt to 11 N.m (96 lb in).

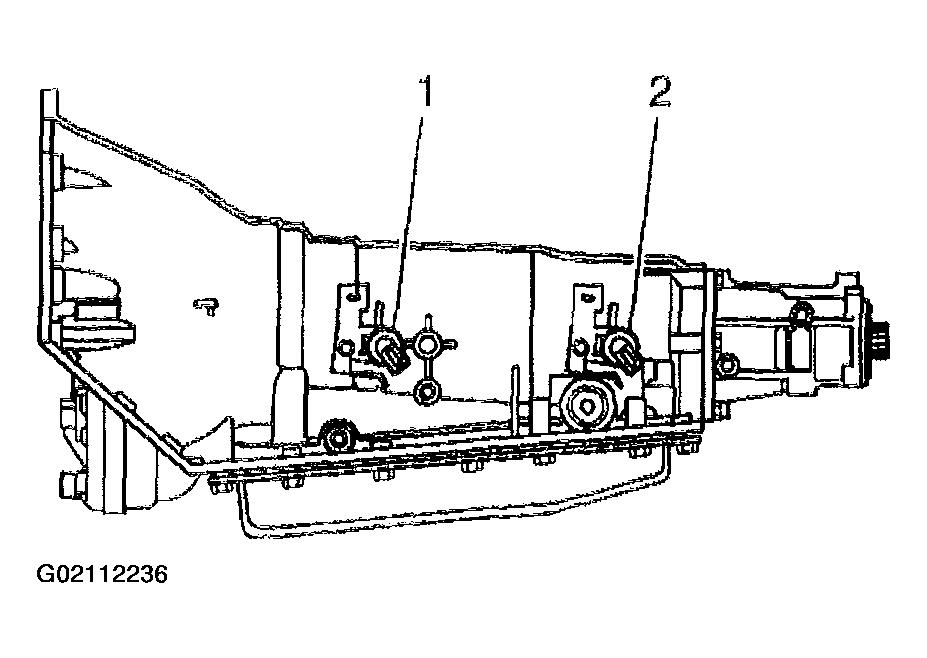

    Fig 1: Installing Input Speed Sensor & Bolt
    G02112236Courtesy of GENERAL MOTORS CORP.
  4. Connect the input speed sensor electrical connector (1).
  5. Lower the vehicle.

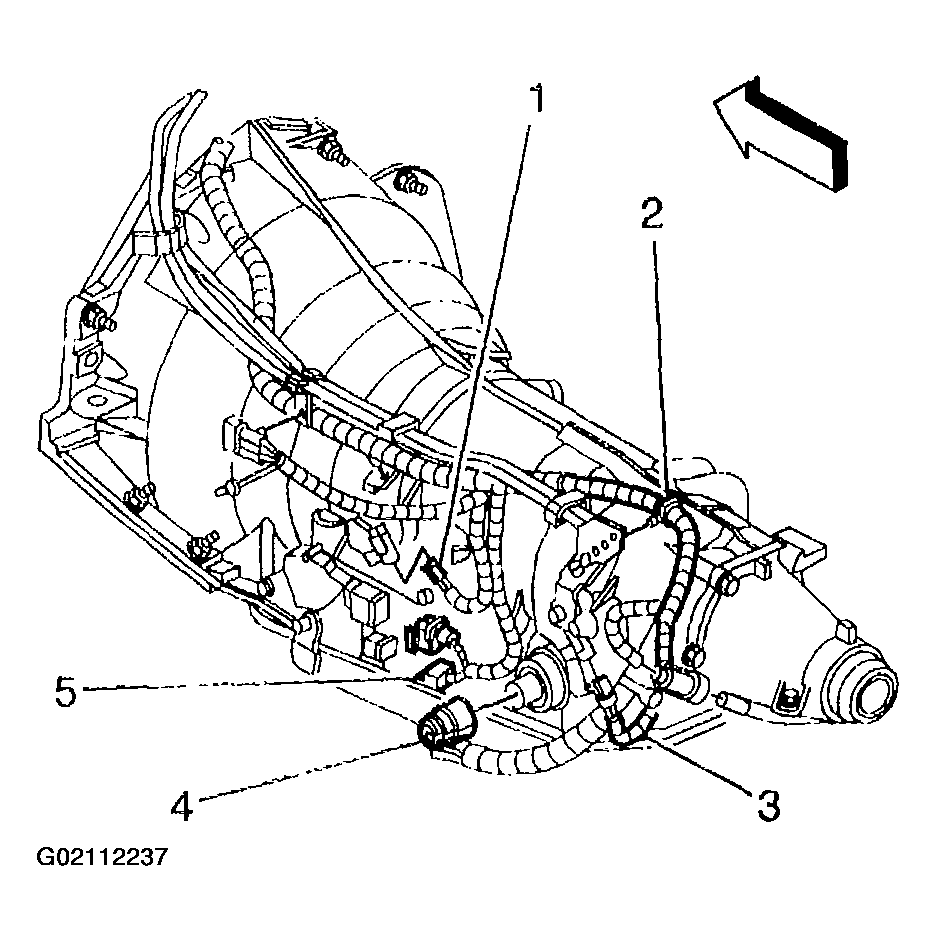

    Fig 2: Connecting Input Speed Sensor Electrical Connector
    G02112237Courtesy of GENERAL MOTORS CORP.
