Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Yukon XL, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the following parts:
    • Piston spring (1)
    • Retainer (2)
    • Servo piston (3)
    • O-ring seal (4)
    • Forward servo piston pin (5)
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the forward servo gasket, cover, and bolts.

    Tighten

    Tighten the bolts to 24 N.m (18 lb ft).

  3. Install the transmission filter. Refer to AUTOMATIC TRANSMISSION FLUID/FILTER REPLACEMENT  .

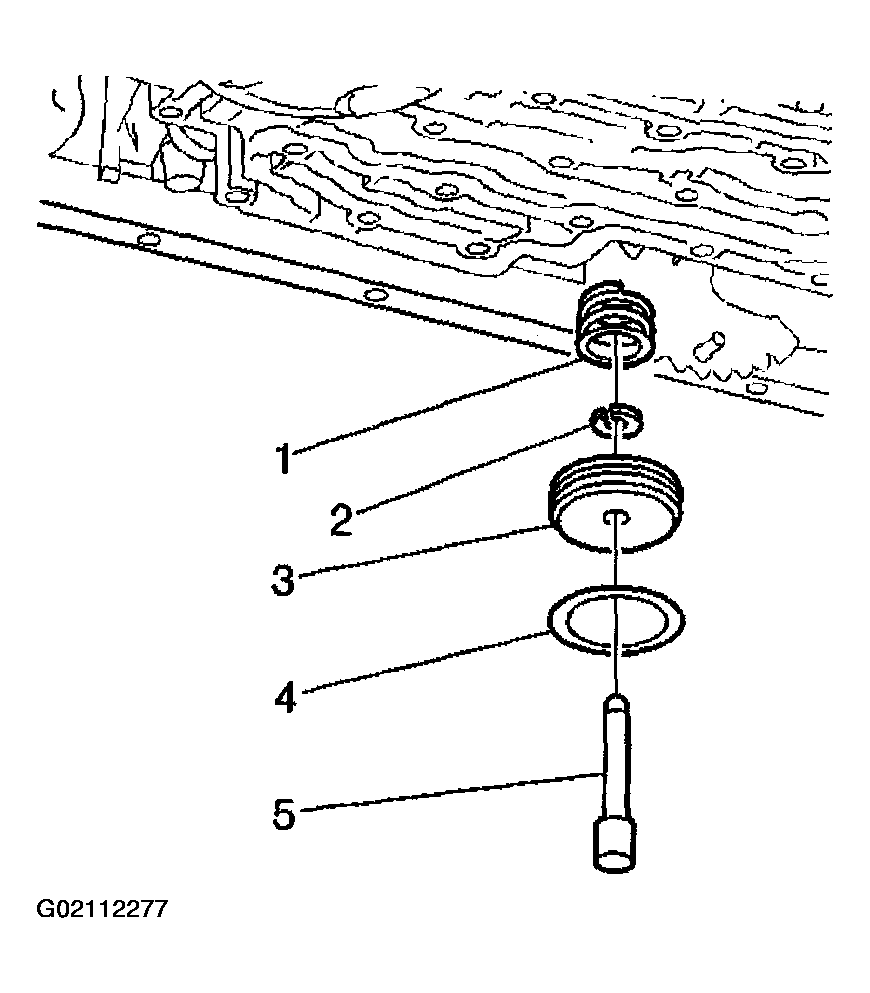

    Fig 1: Installing Forward Servo
    G02112277Courtesy of GENERAL MOTORS CORP.
