Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Yukon XL, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil level indicator.
  2. Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  3. Remove the fill tube bracket nut.
  4. Place a drain pan under the transmission.
    Fig 1: Removing Fill Tube Bracket Nut
    G02112230Courtesy of GENERAL MOTORS CORP.
  5. Remove the fill tube.
  6. Remove the transmission fill tube seal.

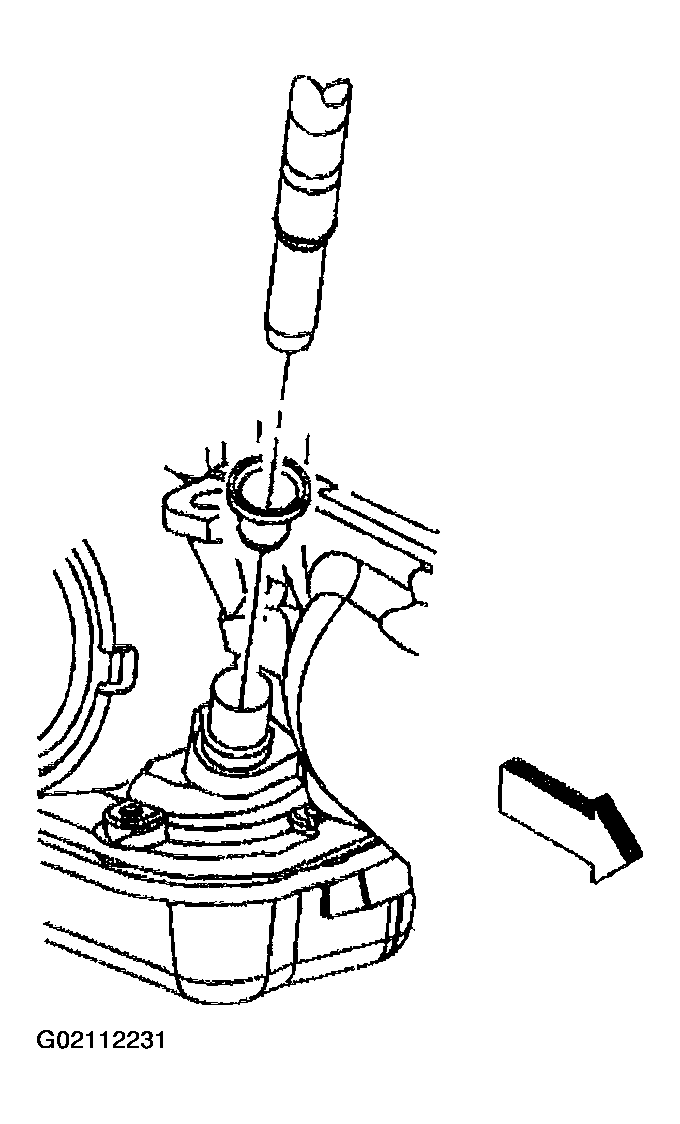

    Fig 2: Removing Transmission Fill Tube Seal
    G02112231Courtesy of GENERAL MOTORS CORP.
