Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Yukon XL, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ensure that the transmission manual shaft lever is in the mechanical park position.
  2. Align and install the cable to the bracket.
  3. Install the range selector cable end (2) to the transmission range selector lever ball stud (1).
  4. Install the cable clip on the transfer case, if equipped.

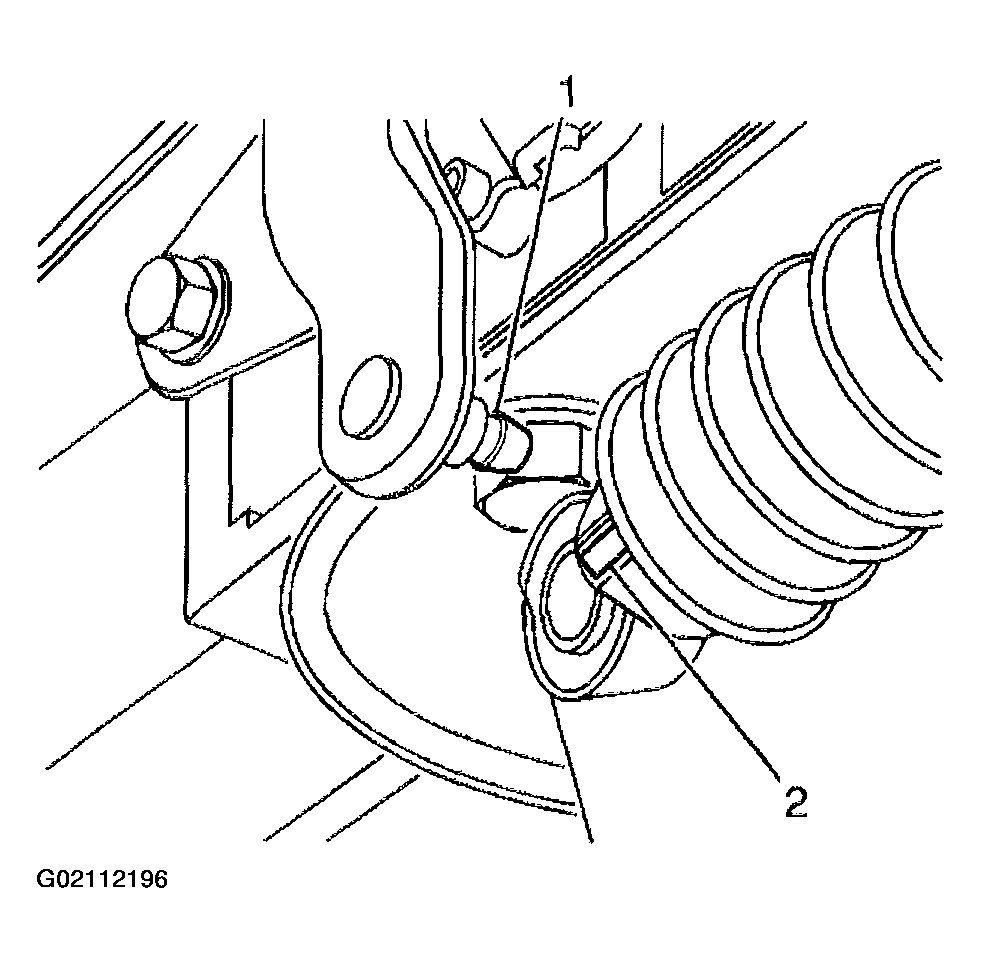

    Fig 1: Installing Range Selector Cable End To Transmission Range Selector Lever Ball Stud
    G02112196Courtesy of GENERAL MOTORS CORP.
  5. Install the retainer that secures the cable to the bracket.

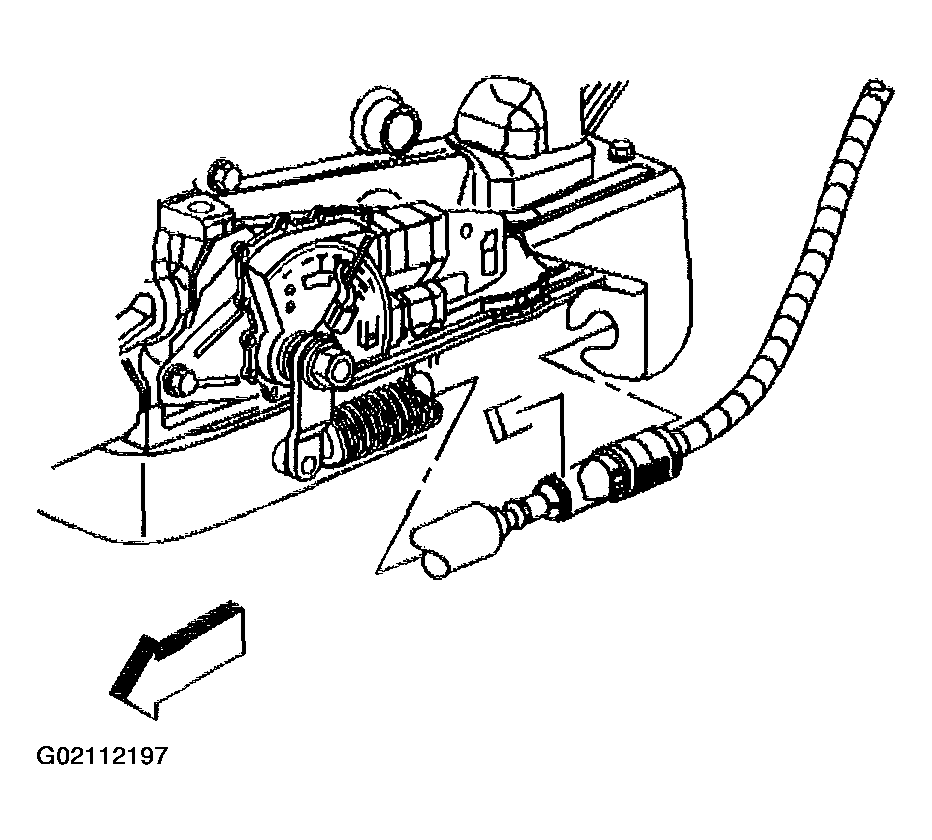

    Fig 2: Installing Retainer That Secures Cable To Bracket
    G02112197Courtesy of GENERAL MOTORS CORP.
  6. Install the clips on the cable to the floor panel reinforcement.
  7. Lower the vehicle.

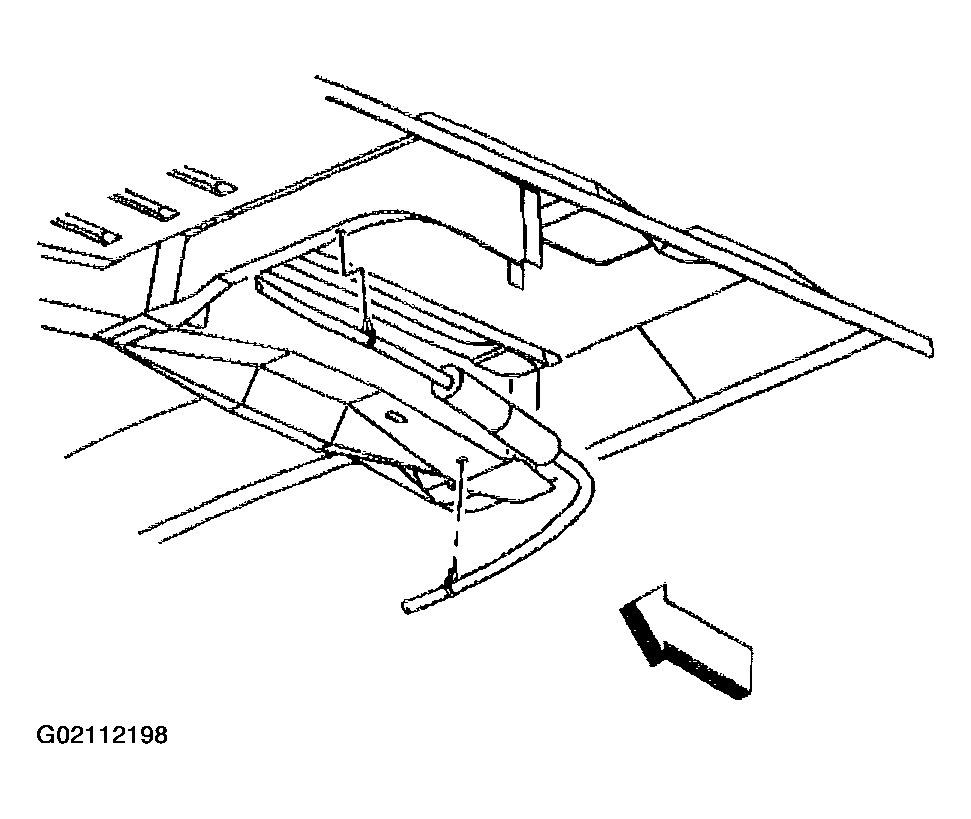

    Fig 3: Installing Clips On Cable To Floor Panel Reinforcement
    G02112198Courtesy of GENERAL MOTORS CORP.
  8. Install the cable grommet to the floor panel.

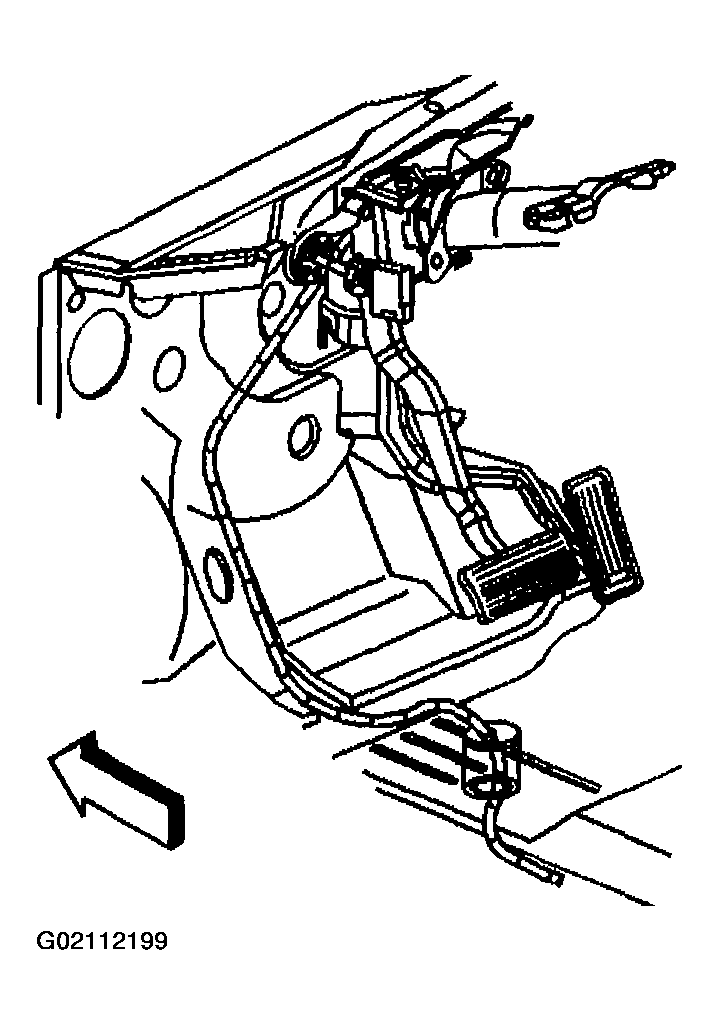

    Fig 4: Installing Cable Grommet From Floor Panel
    G02112199Courtesy of GENERAL MOTORS CORP.

    Important:  Avoid unnecessary twisting/bending of the range selector cable when installing the cable to the support.

  9. Install the range selector cable to the support.

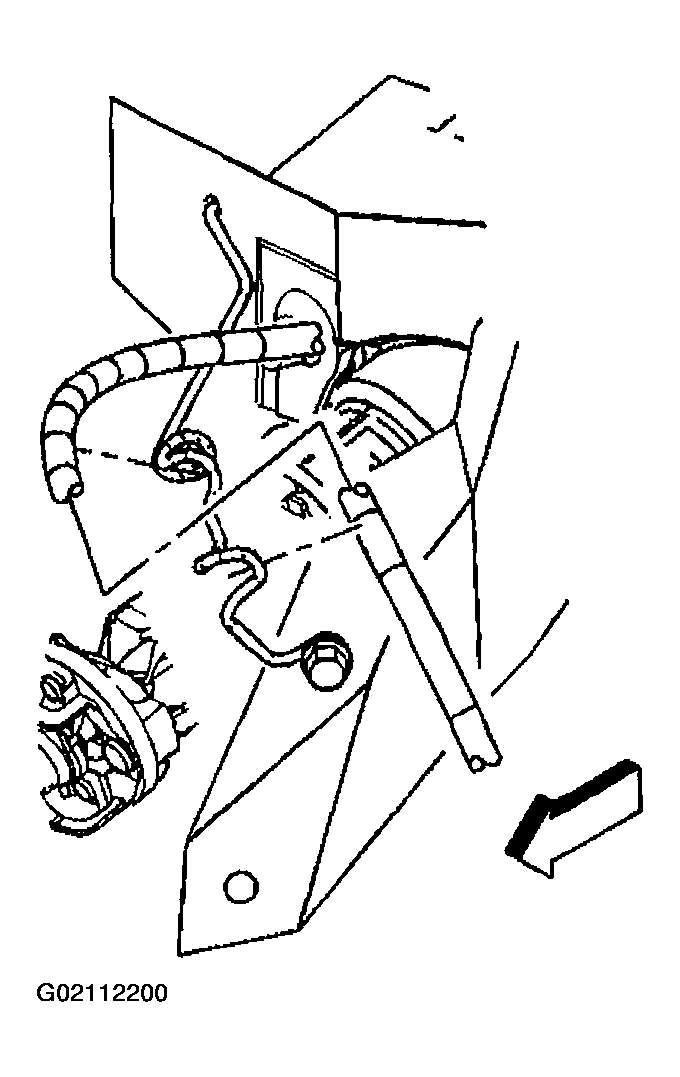

    Fig 5: Installing Range Selector Cable To Support
    G02112200Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  10. Install the bolt securing the cable support to the brace.

    Tighten

    Tighten the bolt to 10 N.m (89 lb in).

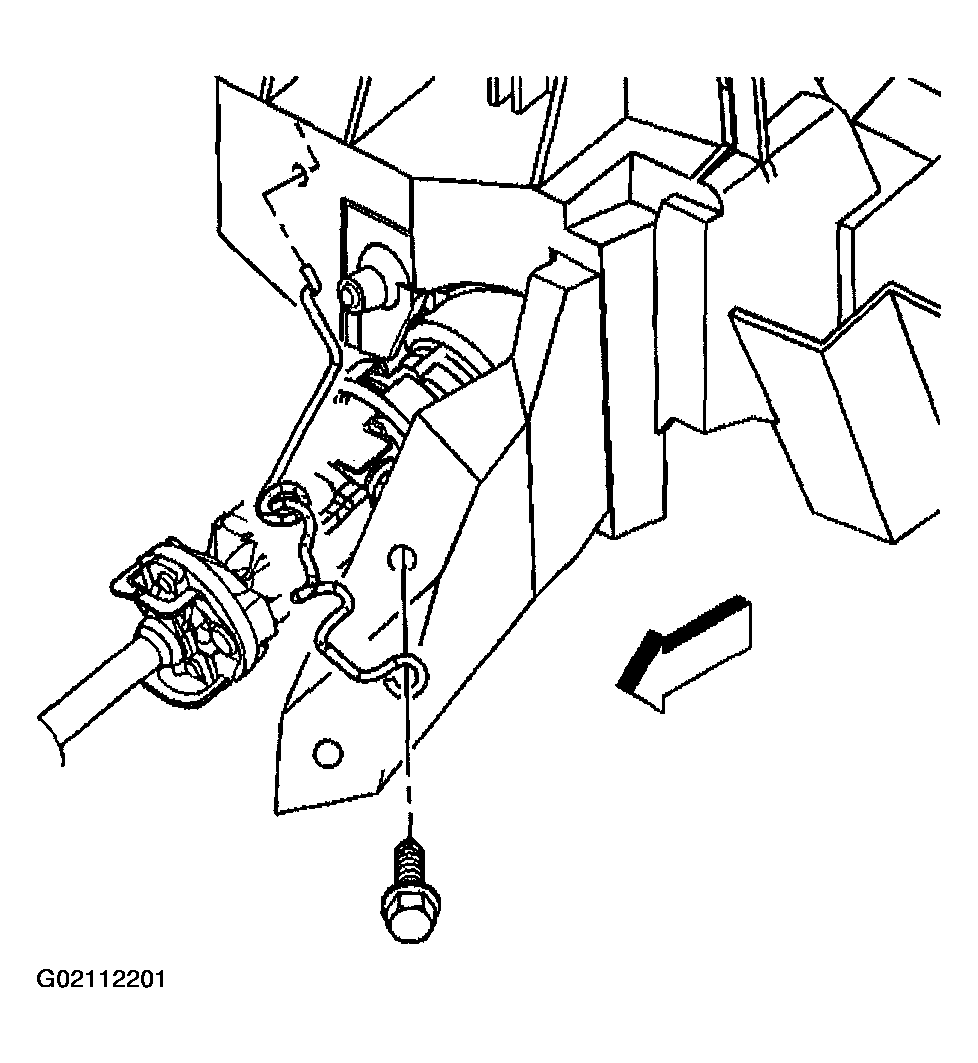

    Fig 6: Installing Bolt Securing Cable Support To Brace
    G02112201Courtesy of GENERAL MOTORS CORP.
  11. Install the cable to the steering column bracket.
  12. Ensure the tangs fully seat (snap) into the steering column bracket.
  13. Install the cable end to the steering column ball stud.

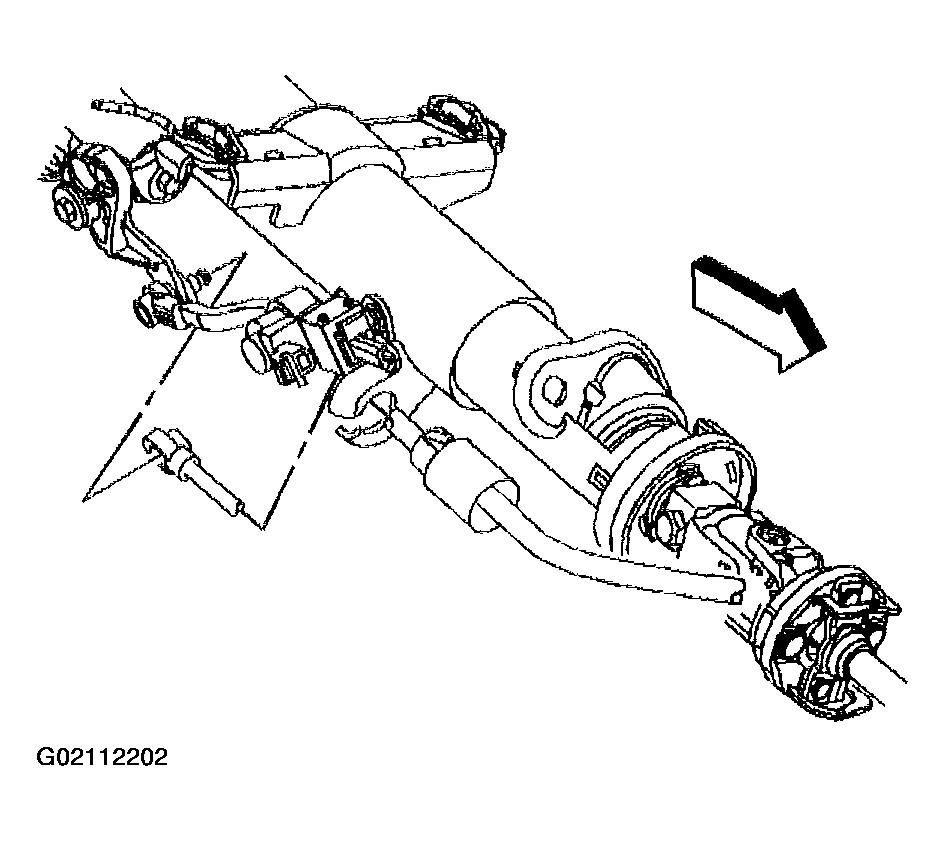

    Fig 7: Installing Cable End To Steering Column Ball Stud
    G02112202Courtesy of GENERAL MOTORS CORP.
  14. Install the retainer securing the cable to the steering column.
  15. Position the carpet and insulation around the driver's area.
  16. Install the driver's seat. Refer to SEAT REPLACEMENT - FRONT BUCKET in Seats.
  17. Install the instrument panel knee bolster. Refer to KNEE BOLSTER REPLACEMENT in Instrument Panel, Gages, and Console.
  18. Test the transmission for proper shift operation.
  19. If all of the gear positions cannot be achieved, adjust the cable. Refer to AUTOMATIC TRANSMISSION RANGE SELECTOR CABLE ADJUSTMENT  .

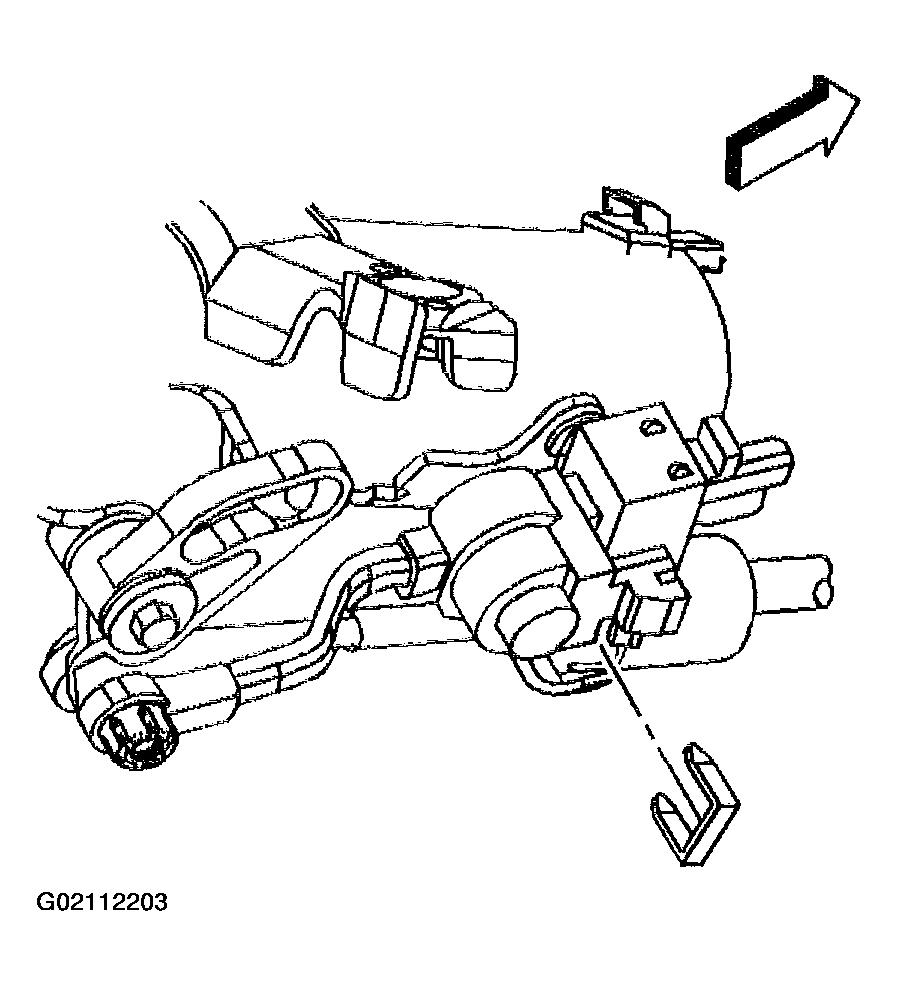

    Fig 8: Installing Retainer Securing Cable To Steering Column
    G02112203Courtesy of GENERAL MOTORS CORP.
