Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Yukon XL, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the transmission range selector cable bracket.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the transmission range selector cable bracket bolts (1).

    Tighten

    Tighten the bolts to 25 N.m (18 lb ft).

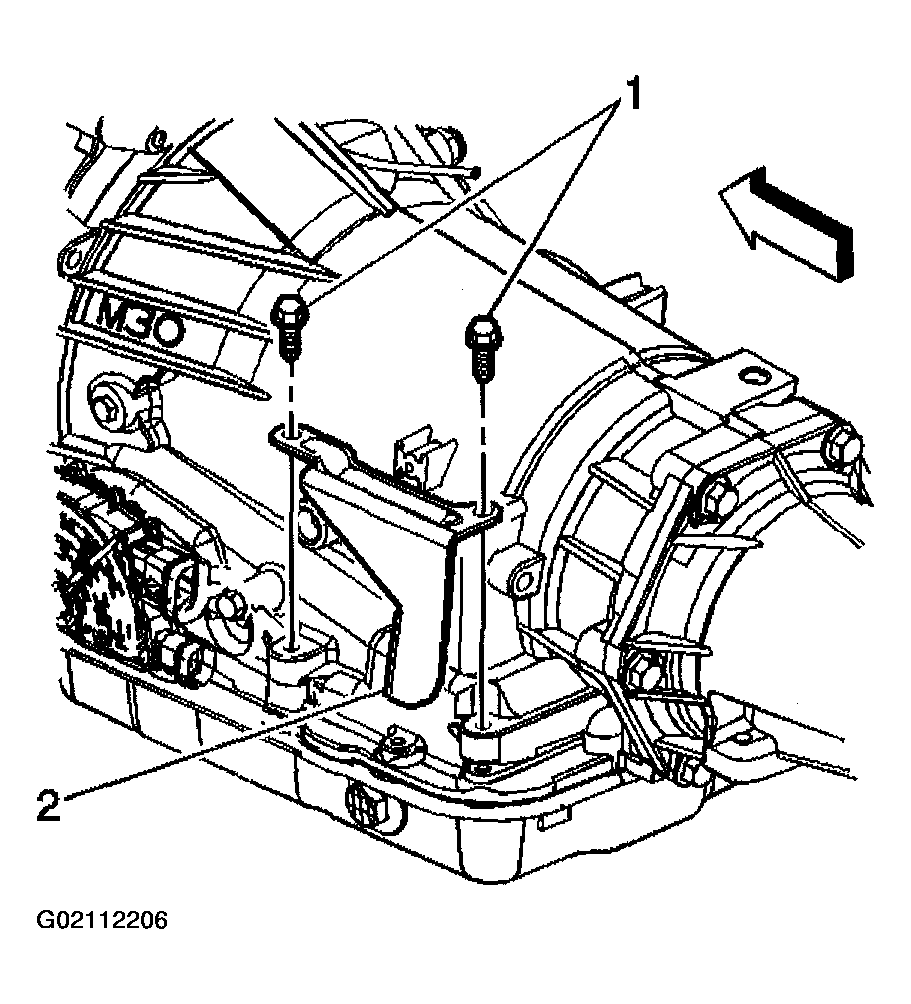

    Fig 1: Installing Bolts Securing Transmission Range Selector Cable Bracket To Transmission
    G02112206Courtesy of GENERAL MOTORS CORP.
  3. Align and install the cable to the bracket.
  4. Install the retainer that secures the cable to the bracket.
  5. Lower the vehicle.
  6. Check the vehicle for proper operation. If cable adjustment is necessary, refer to AUTOMATIC TRANSMISSION RANGE SELECTOR CABLE ADJUSTMENT  .

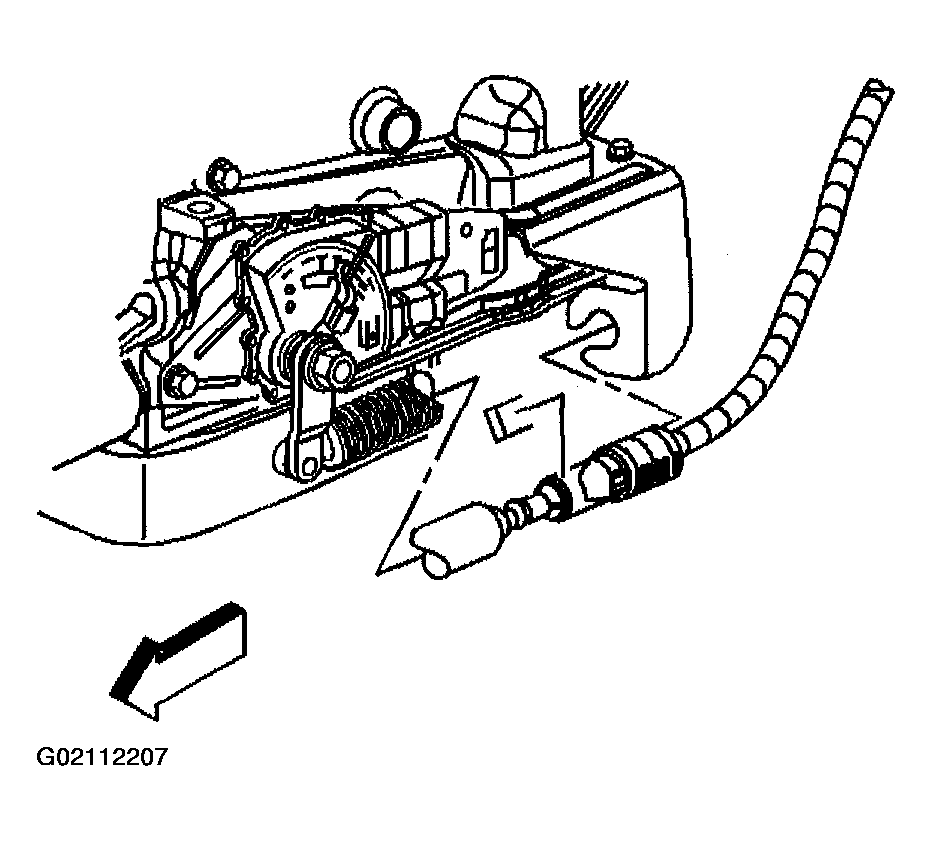

    Fig 2: Installing Cable From Bracket
    G02112207Courtesy of GENERAL MOTORS CORP.
