Test Description

WARNING: This page is about a different car, the 2003 GMC Yukon XL, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

  1. 2. This step tests for a faulty tow/haul switch.
  2. 3. This step tests for voltage input from the BCM to the tow/haul switch.
  3. 6. This step tests for ground integrity.

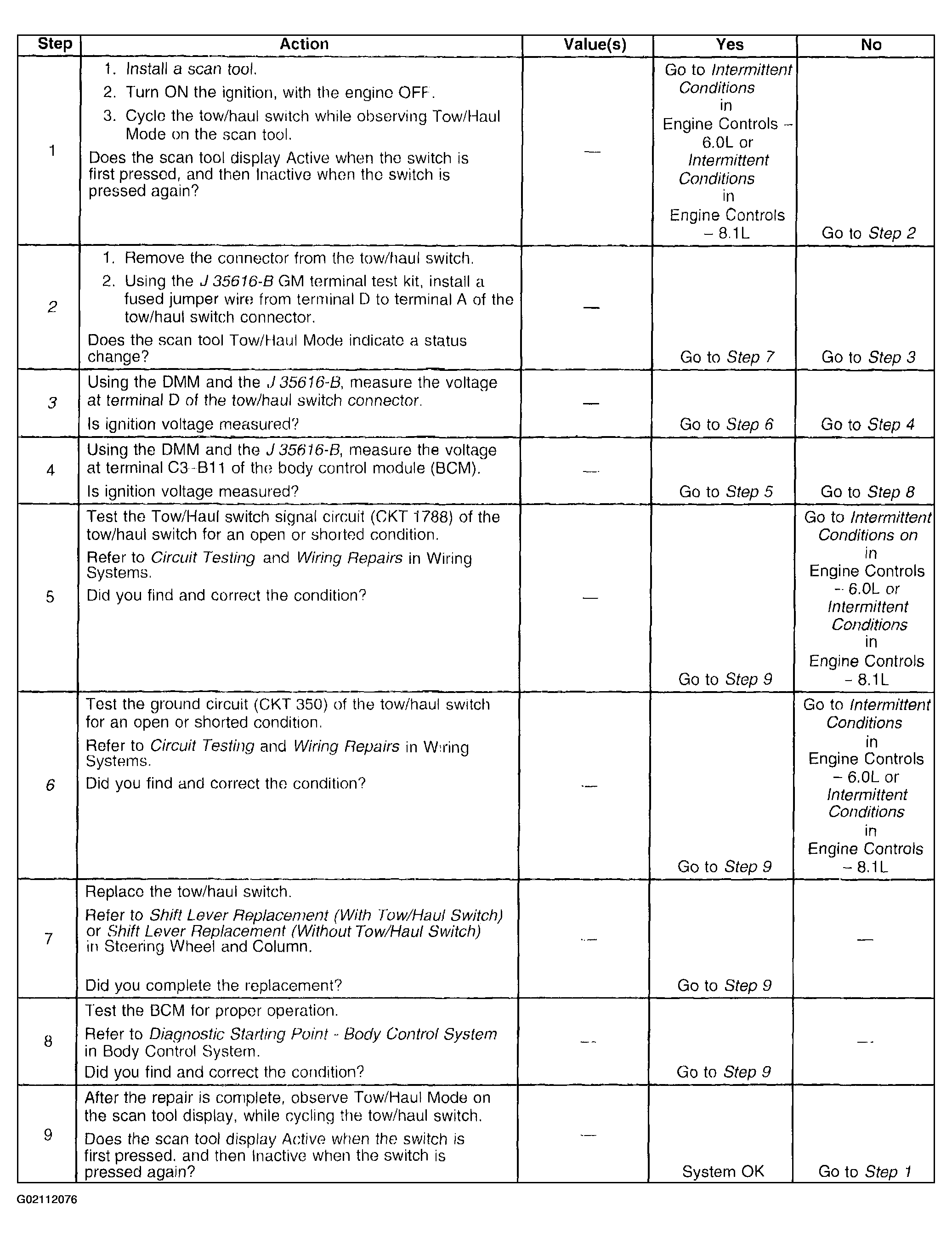

    Fig 1: Tow/Haul Switch/Indicator Always On Or Inoperative Description Diagram
    G02112076Courtesy of GENERAL MOTORS CORP.
