Test Description

WARNING: This page is about a different car, the 2003 GMC Yukon XL, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table.

  1. 3. This step tests the mechanical state of the TCC. When the PCM commands the TCC solenoid OFF, the slip speed should increase.

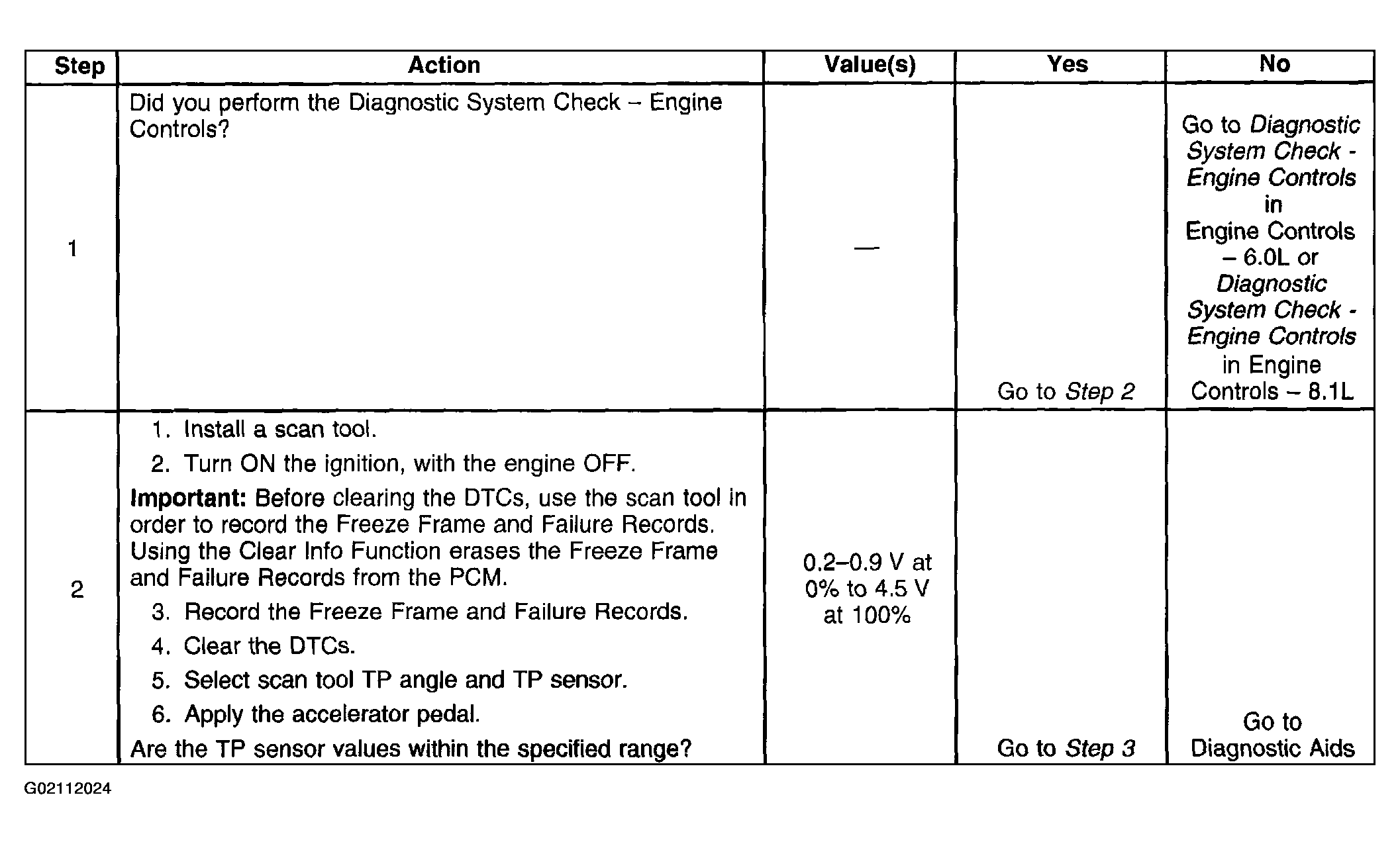

    Fig 1: Diagnostic Trouble Code (DTC P0742) Table (Step 1-2)
    G02112024Courtesy of GENERAL MOTORS CORP.

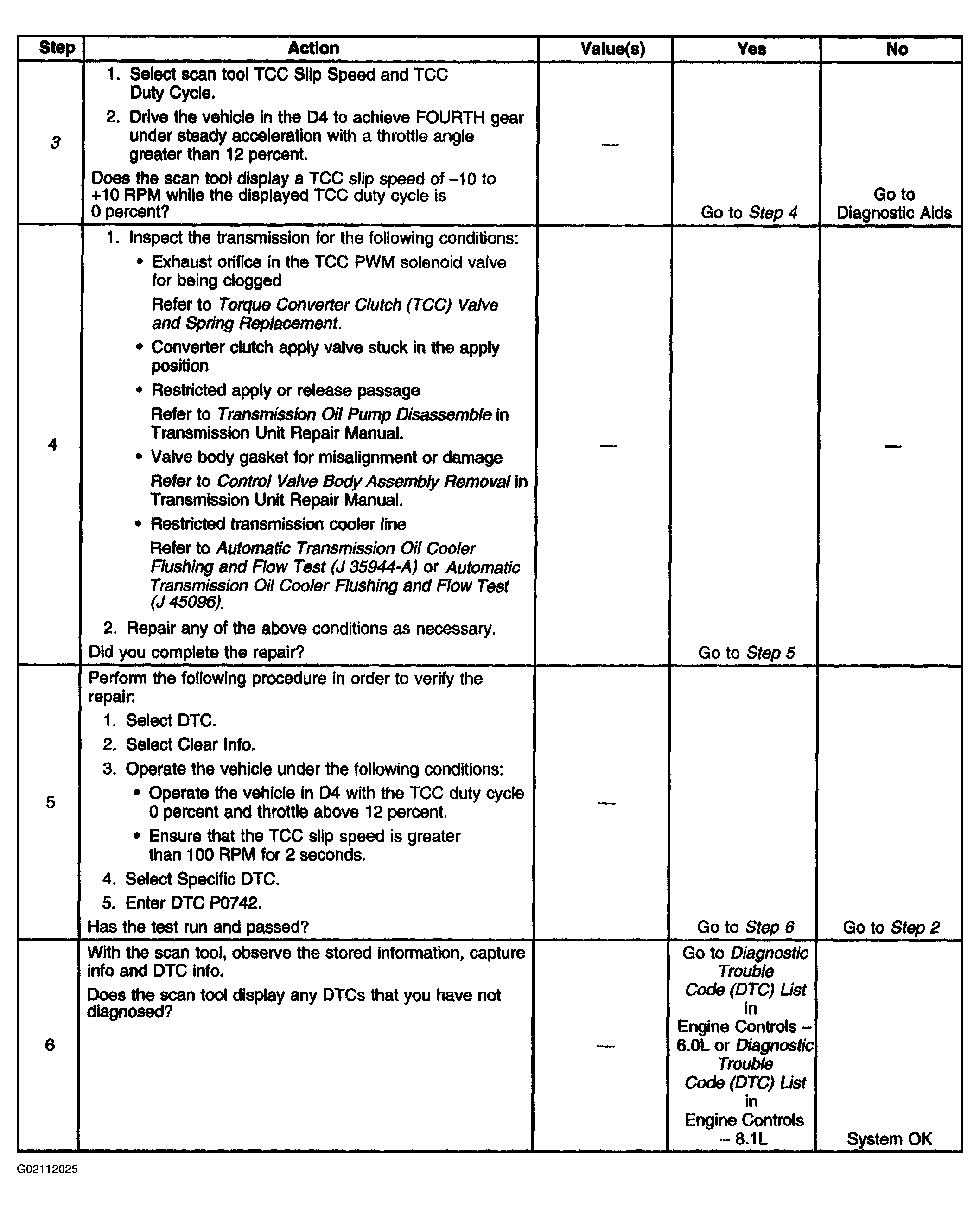

    Fig 2: Diagnostic Trouble Code (DTC P0742) Table (Step 3-6)
    G02112025Courtesy of GENERAL MOTORS CORP.
