Forward Flush

WARNING: This page is about a different car, the 2003 GMC Yukon XL, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

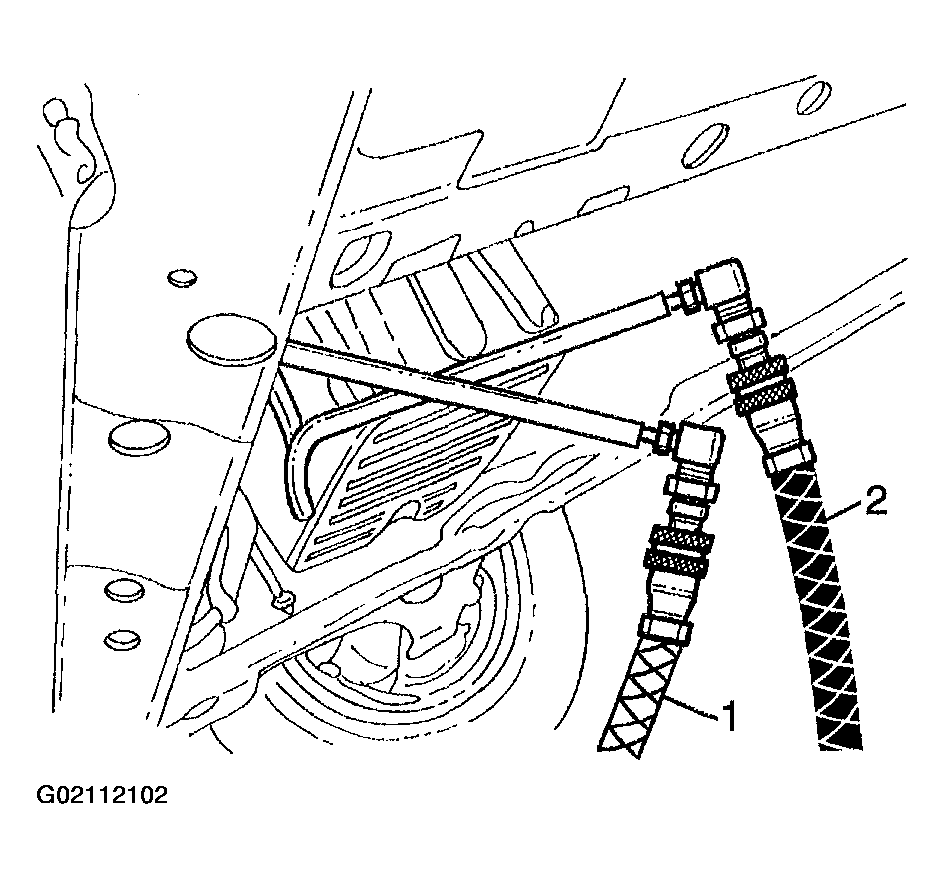

Fig 1: Identifying Forward Flush (1 Of 2)
G02112102Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the supply and waste hoses from the vehicle cooler lines. Reverse the supply and waste hoses to provide a normal flow direction.

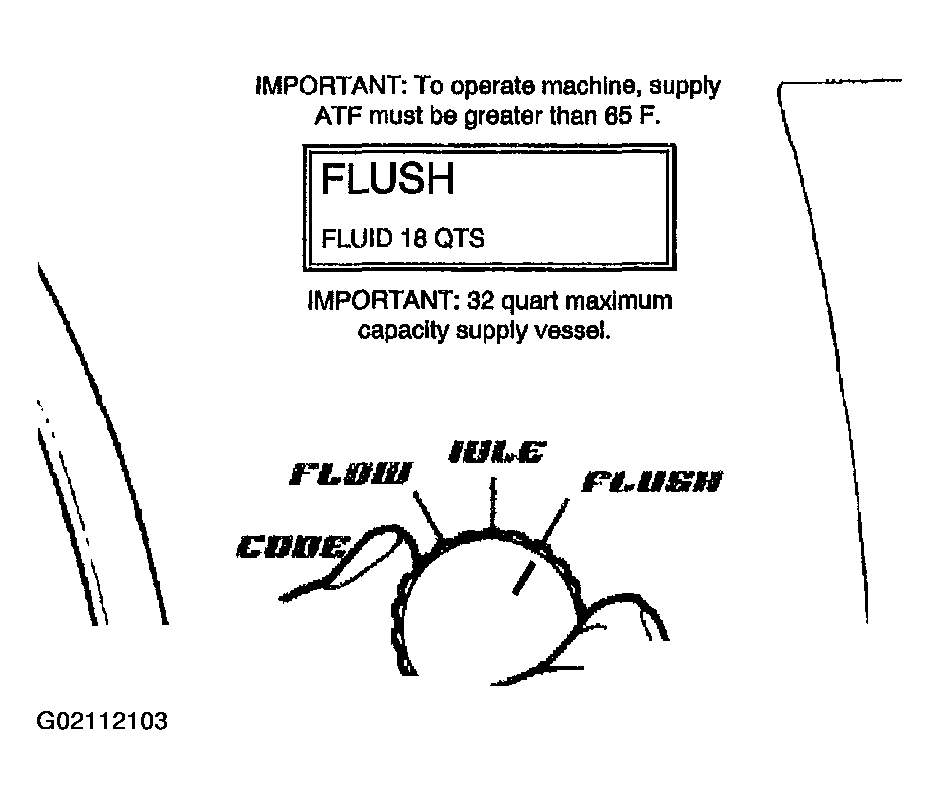

    Fig 2: Identifying Forward Flush (2 Of 2)
    G02112103Courtesy of GENERAL MOTORS CORP.
  2. Turn the main function switch to the FLUSH position and allow machine to operate for 30 seconds.
