Automatic Transmission Oil Cooler Flushing and Flow Test (J 45096): Clean-up

WARNING: This page is about a different car, the 2003 GMC Yukon XL, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

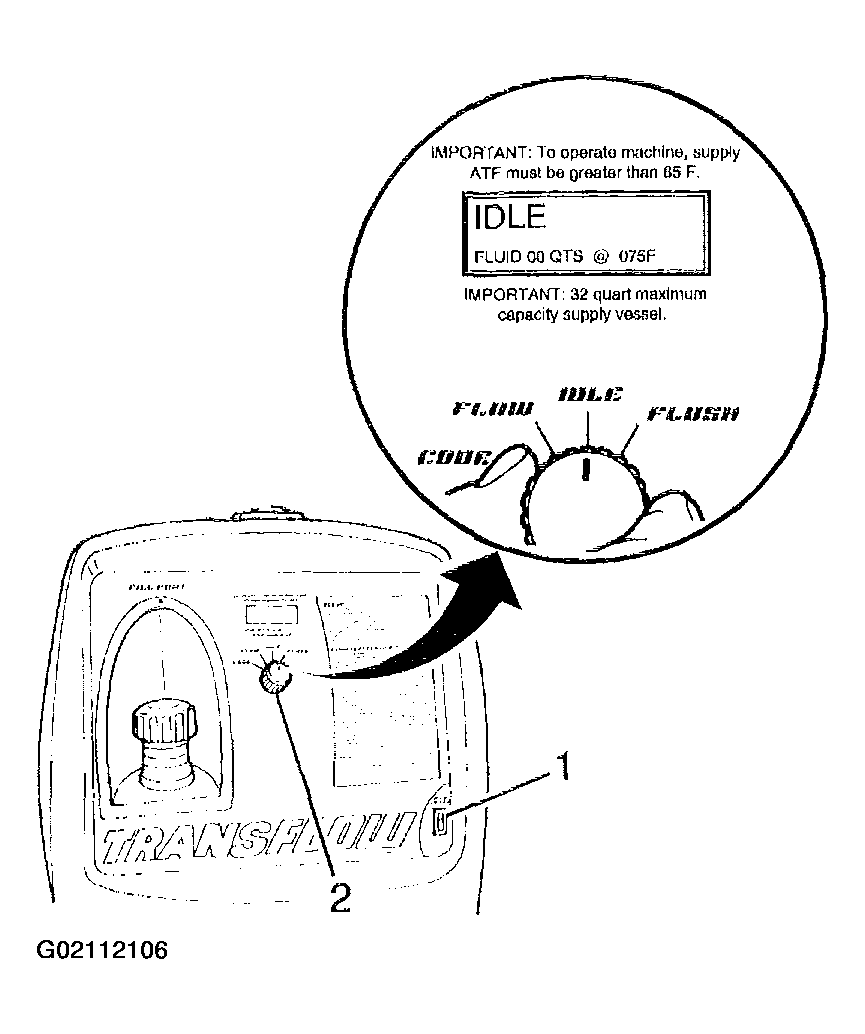

Fig 1: Identifying Clean Up (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

Turn the main function switch to the IDLE position and allow the supply vessel pressure to dissipate.
Turn the main power switch to the OFF position.
Important: A small amount of water may drain from the bottom of the unit when the air supply is disconnected. This is a normal operation of the built-in water separator.
Disconnect the supply and waste hoses and the 12-volt power source from the vehicle.

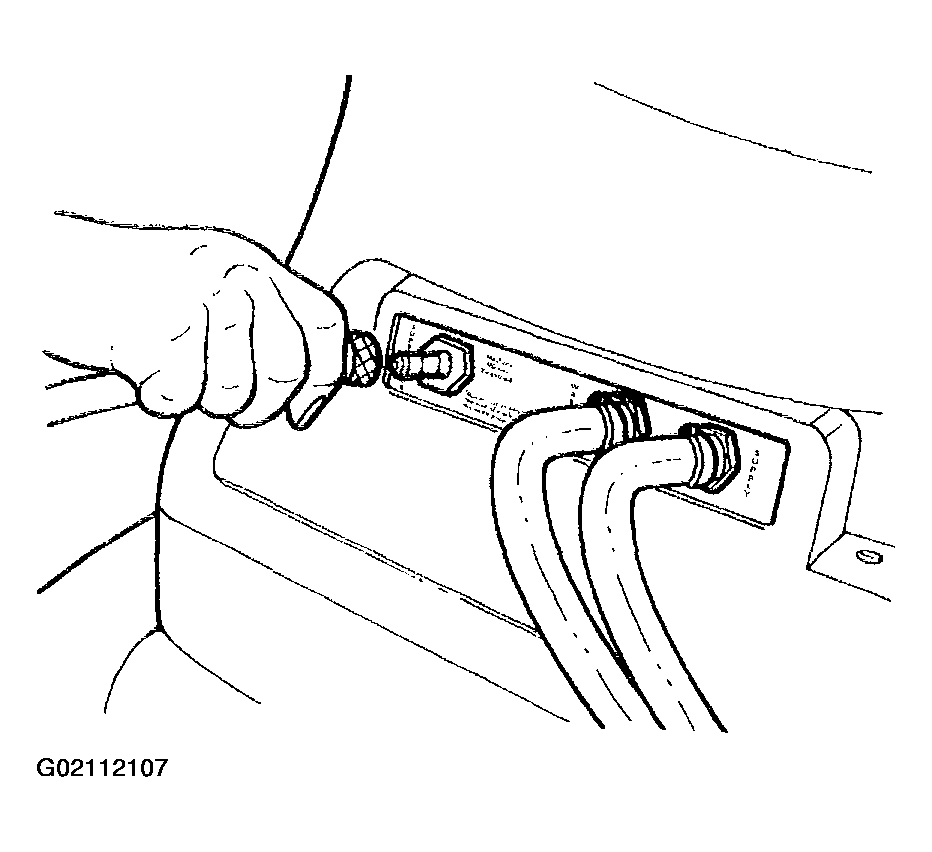

Fig 2: Identifying Clean Up (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Disconnect the air supply hose from J 45096 .
Dispose of the waste ATF in accordance with all applicable federal, state, and local requirements.
