WARNING: This page is about a different car, the 2003 GMC Yukon XL, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

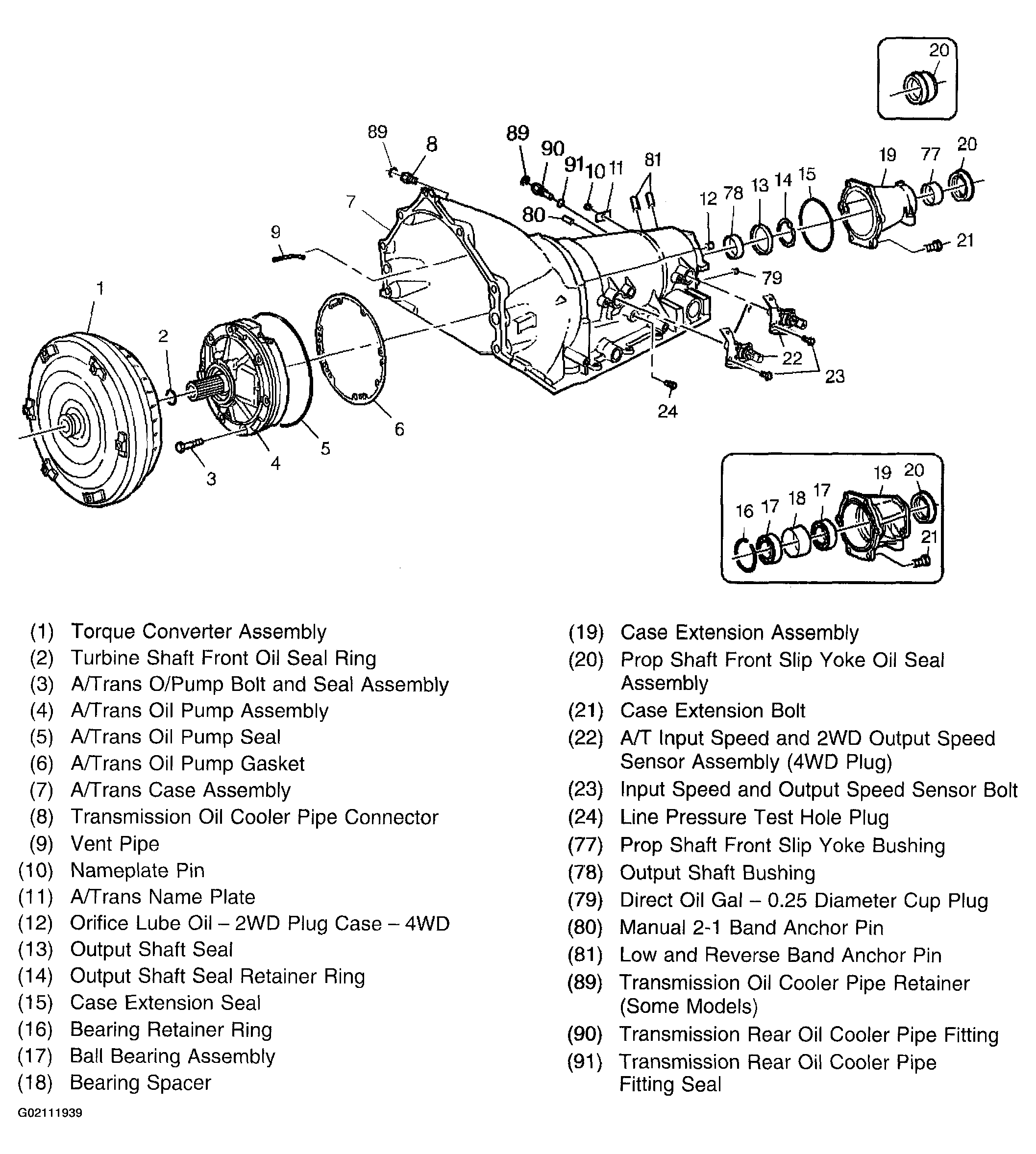

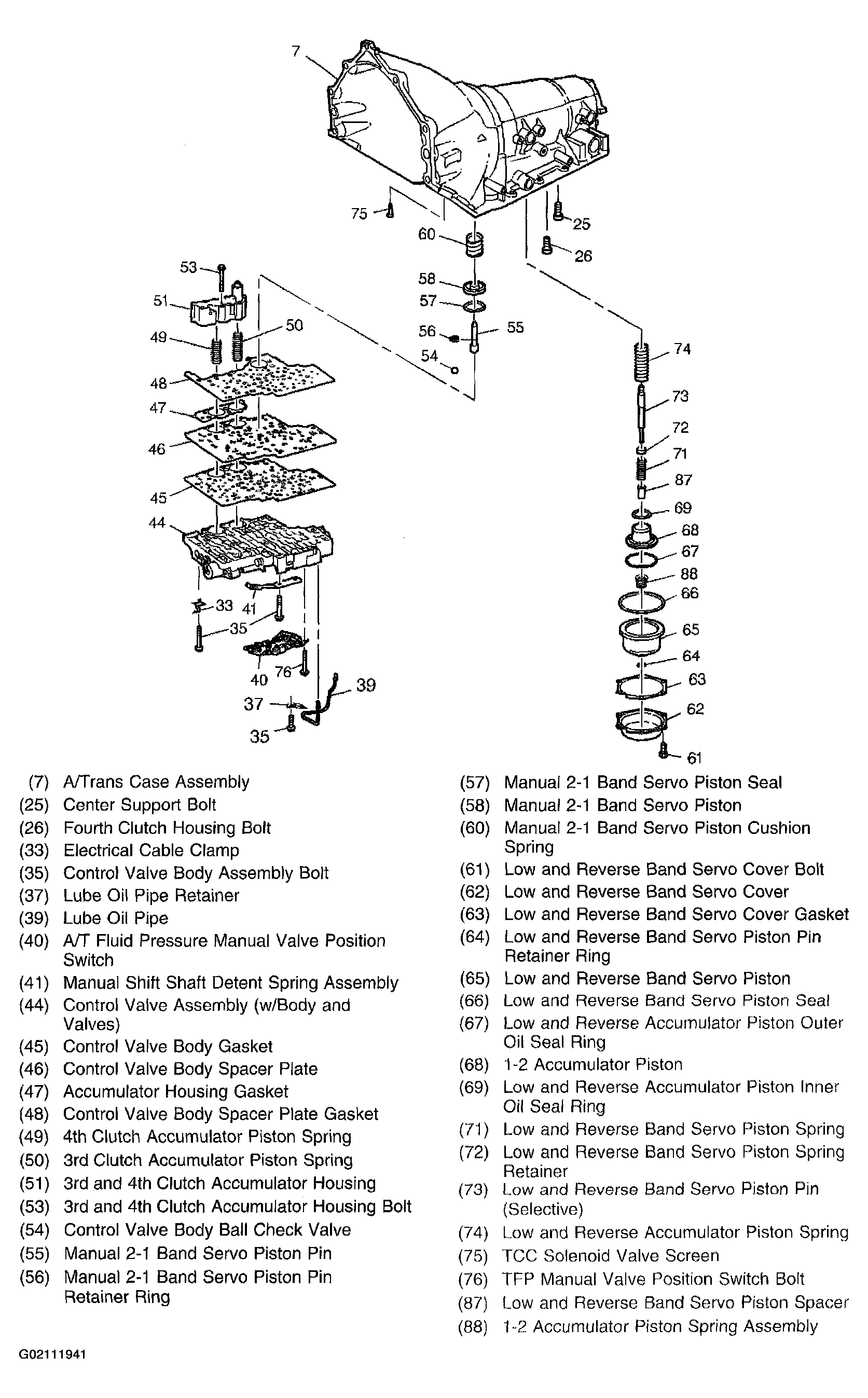

Fig 1: Dissembled View Of Case And Associated Parts (1 Of 3)
Courtesy of GENERAL MOTORS CORP.
Fig 2: Dissembled View Of Case And Associated Parts (2 of 3)
Courtesy of GENERAL MOTORS CORP.

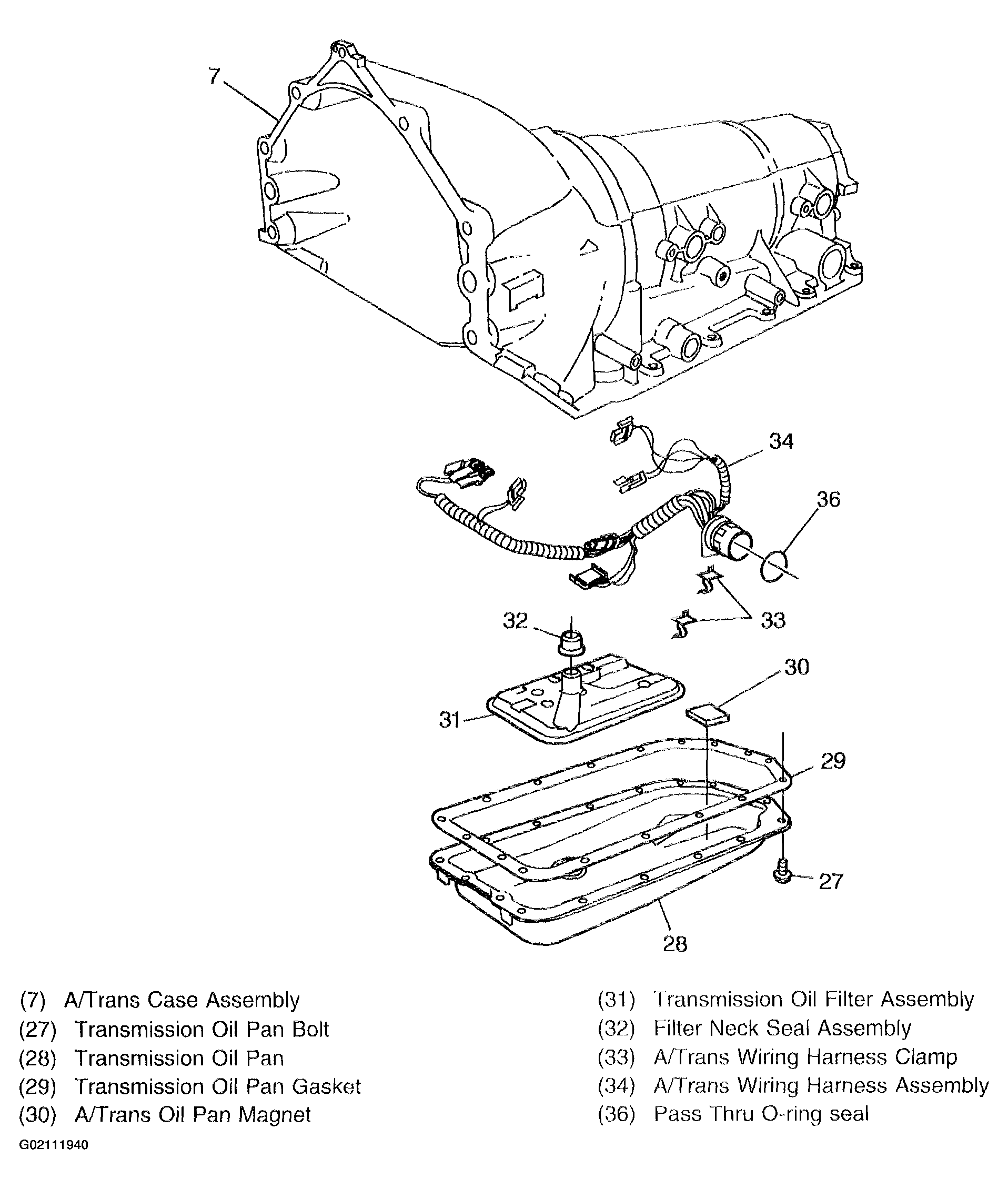

Fig 3: Dissembled View Of Case And Associated Parts (3 of 3)
Courtesy of GENERAL MOTORS CORP.

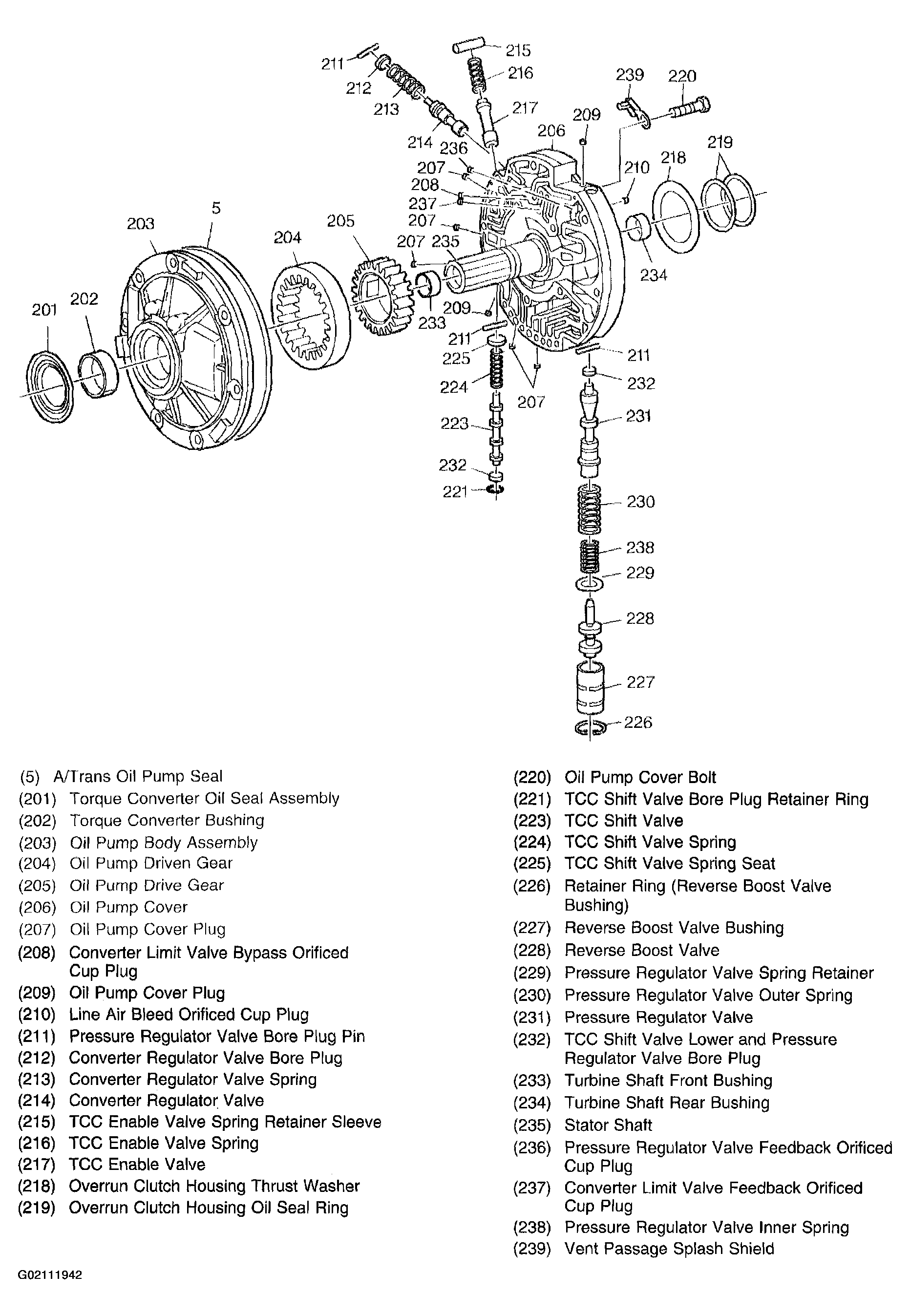

Fig 4: Exploded View Of Oil Pump Assembly
Courtesy of GENERAL MOTORS CORP.

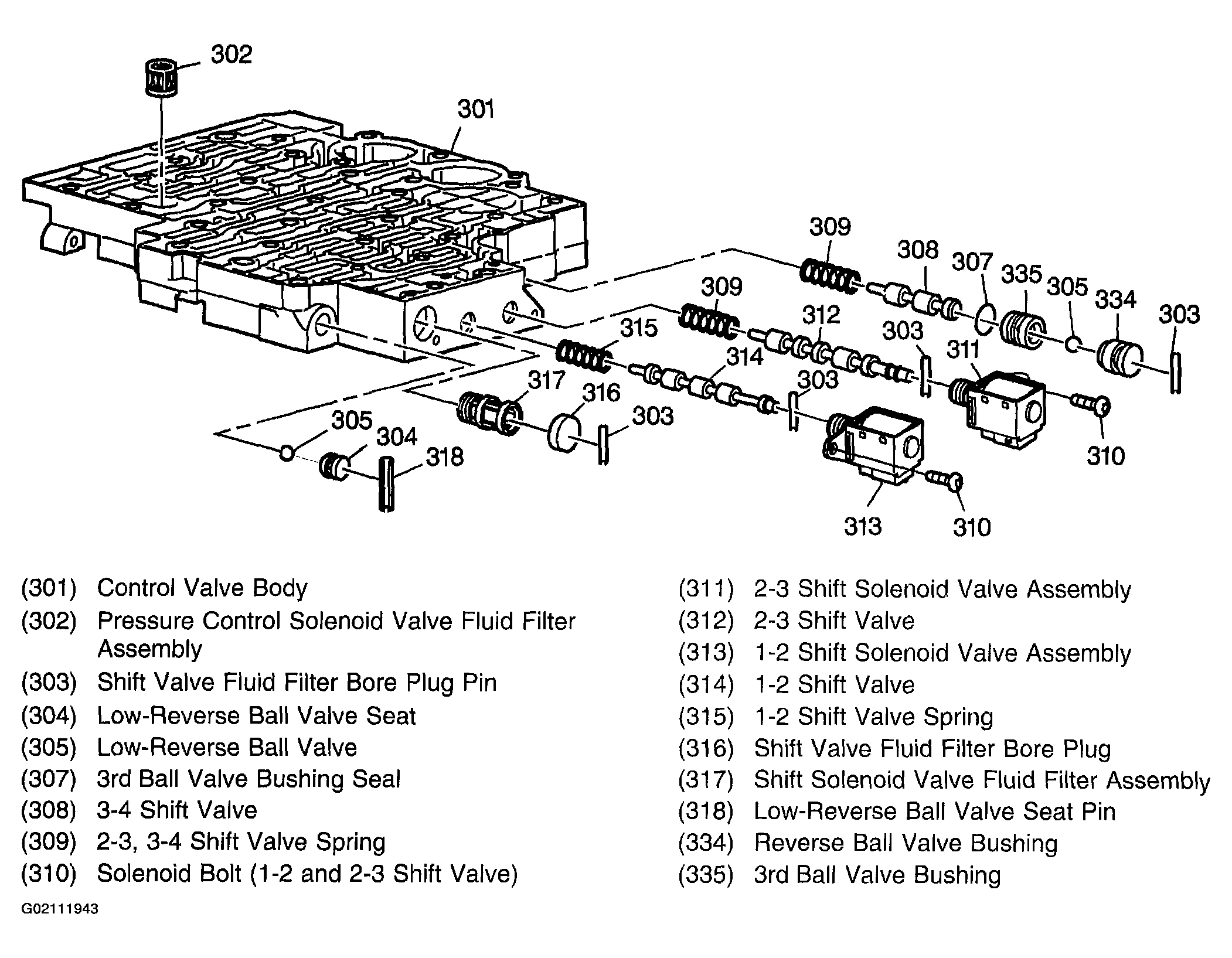

Fig 5: Exploded View Of Control Valve Body Assembly (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

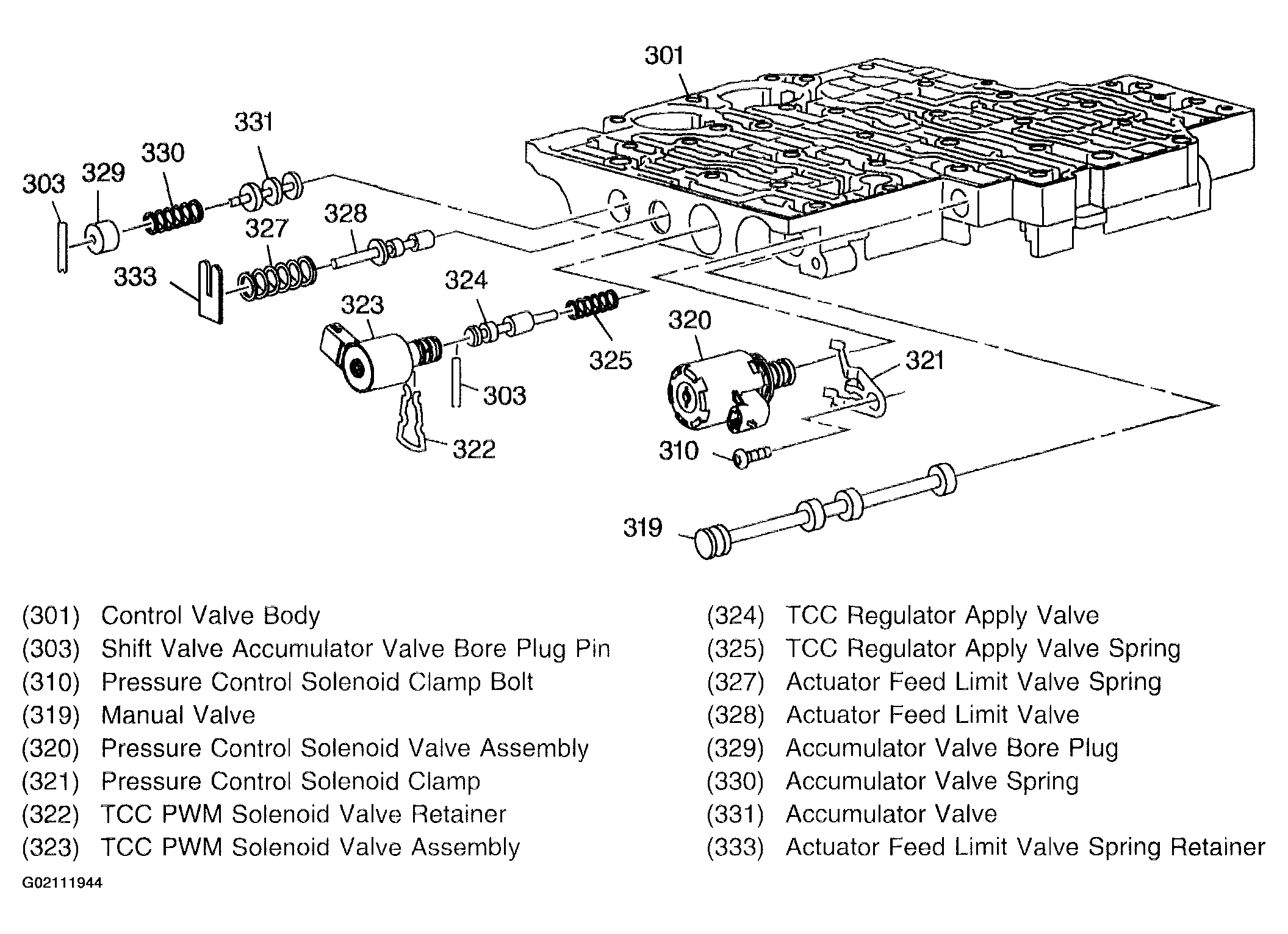

Fig 6: Exploded View Of Control Valve Body Assembly (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

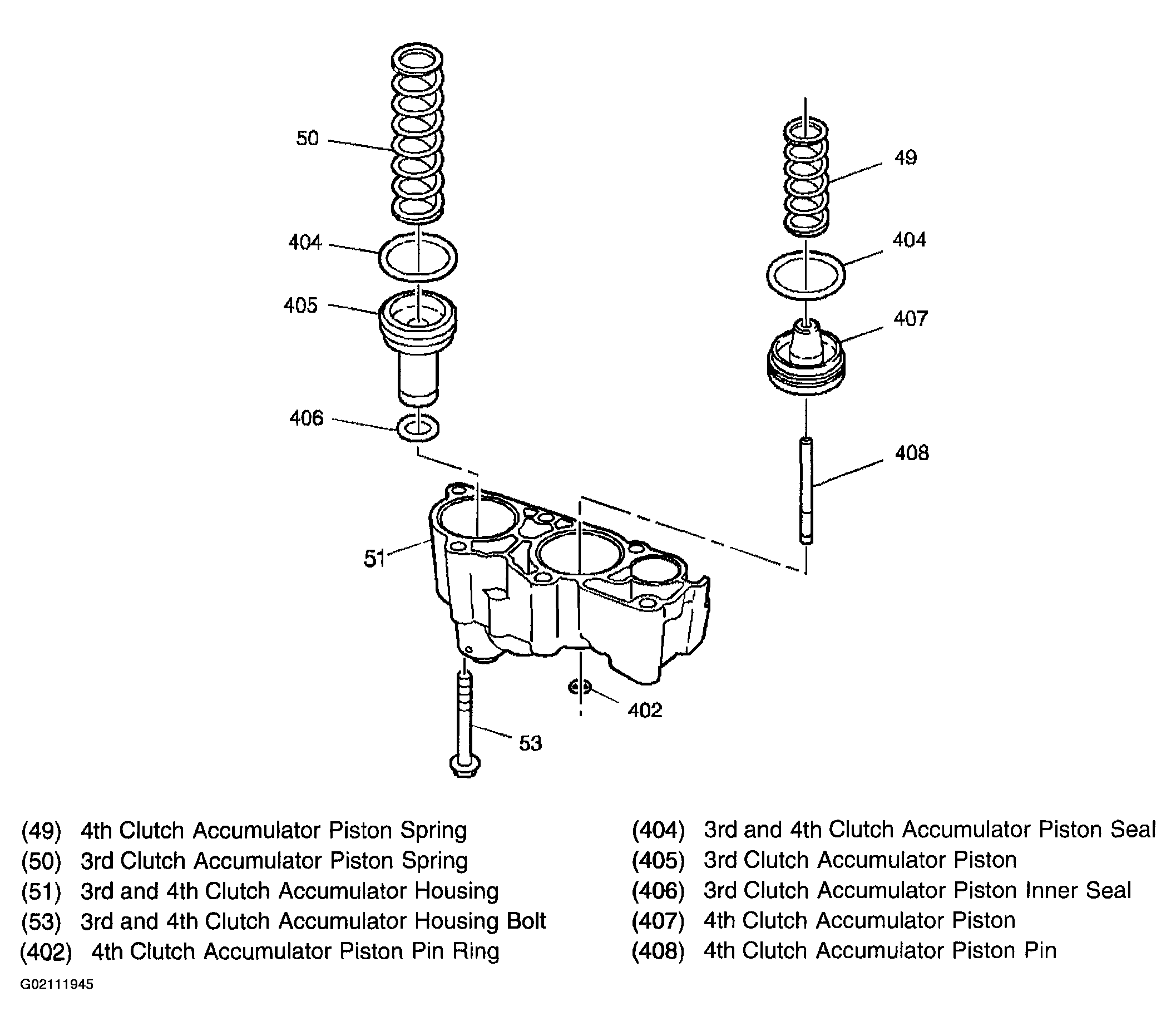

Fig 7: Exploded View Of Accumulator Assembly
Courtesy of GENERAL MOTORS CORP.

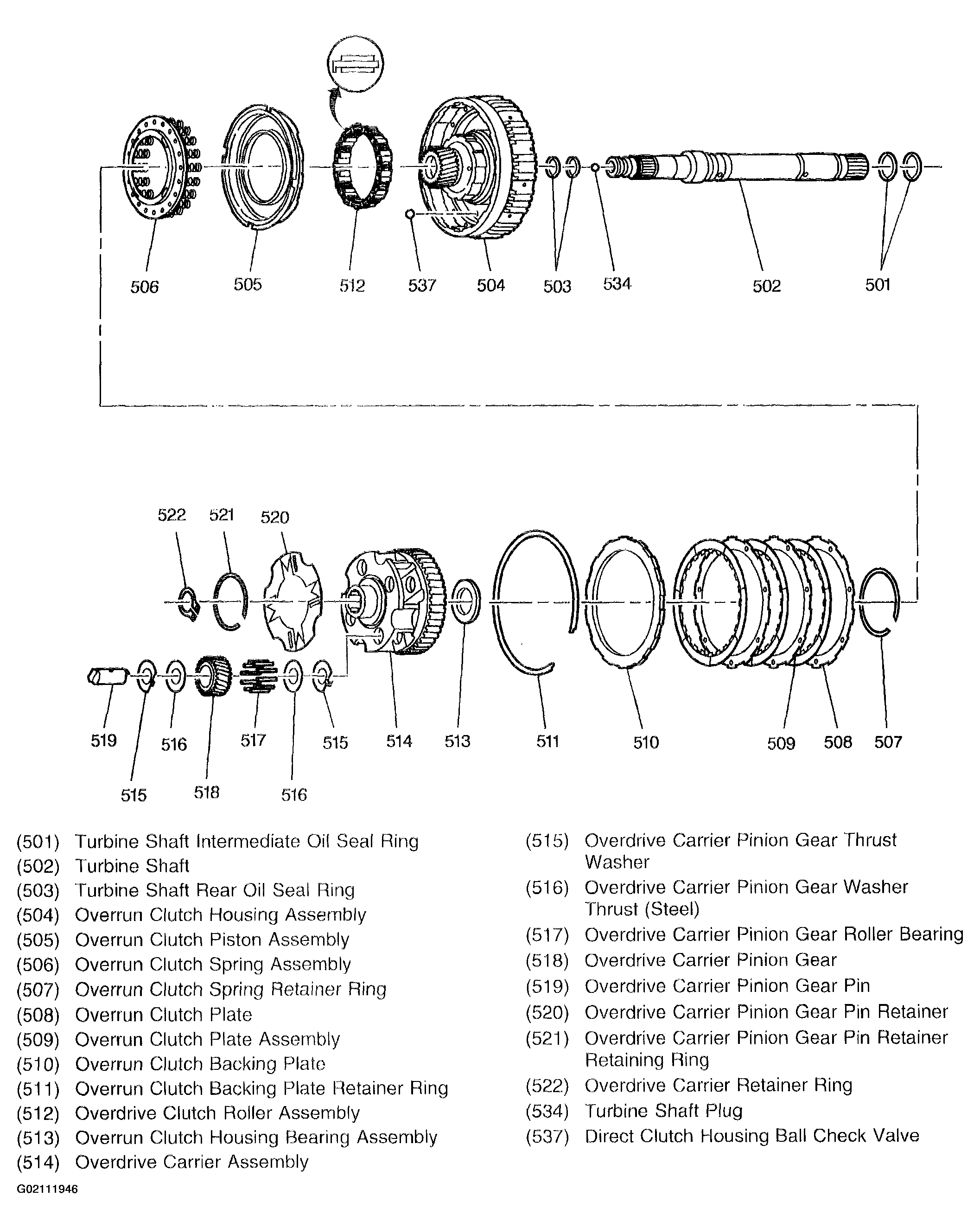

Fig 8: Exploded View Of Overrun Clutch Assembly
Courtesy of GENERAL MOTORS CORP.

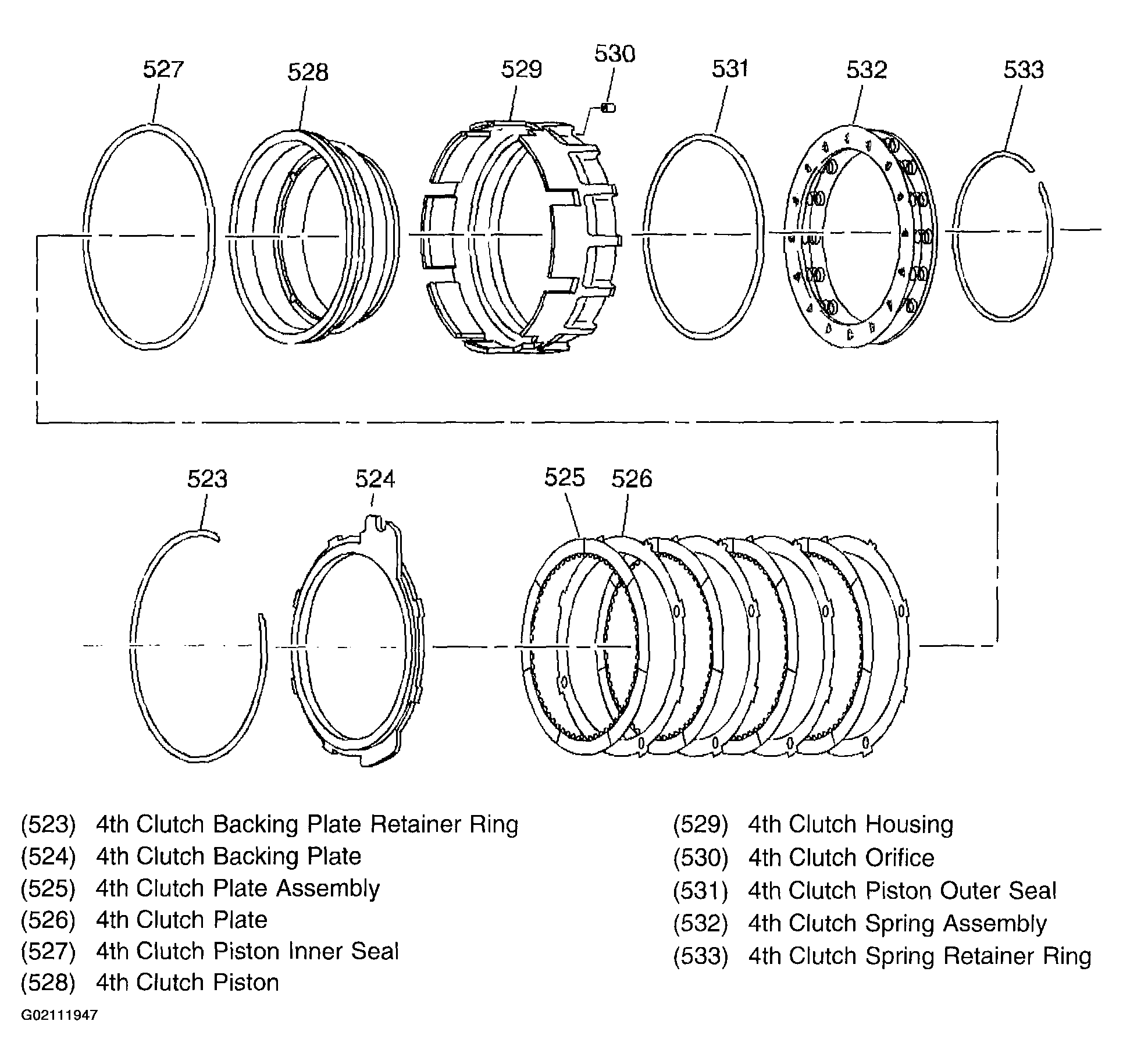

Fig 9: Exploded View Of Fourth Clutch Assembly
Courtesy of GENERAL MOTORS CORP.

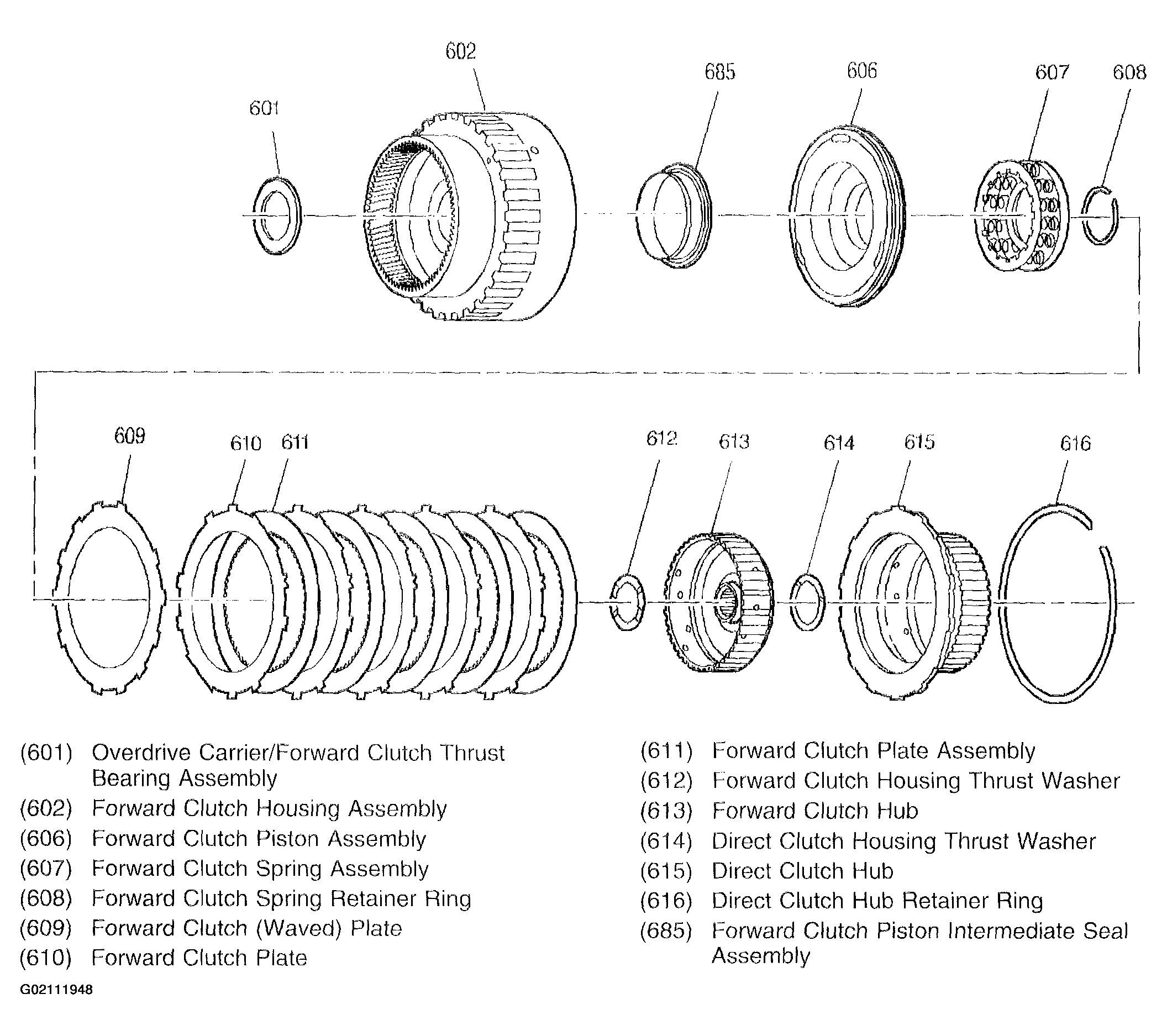

Fig 10: Exploded View Of Forward Clutch Assembly
Courtesy of GENERAL MOTORS CORP.

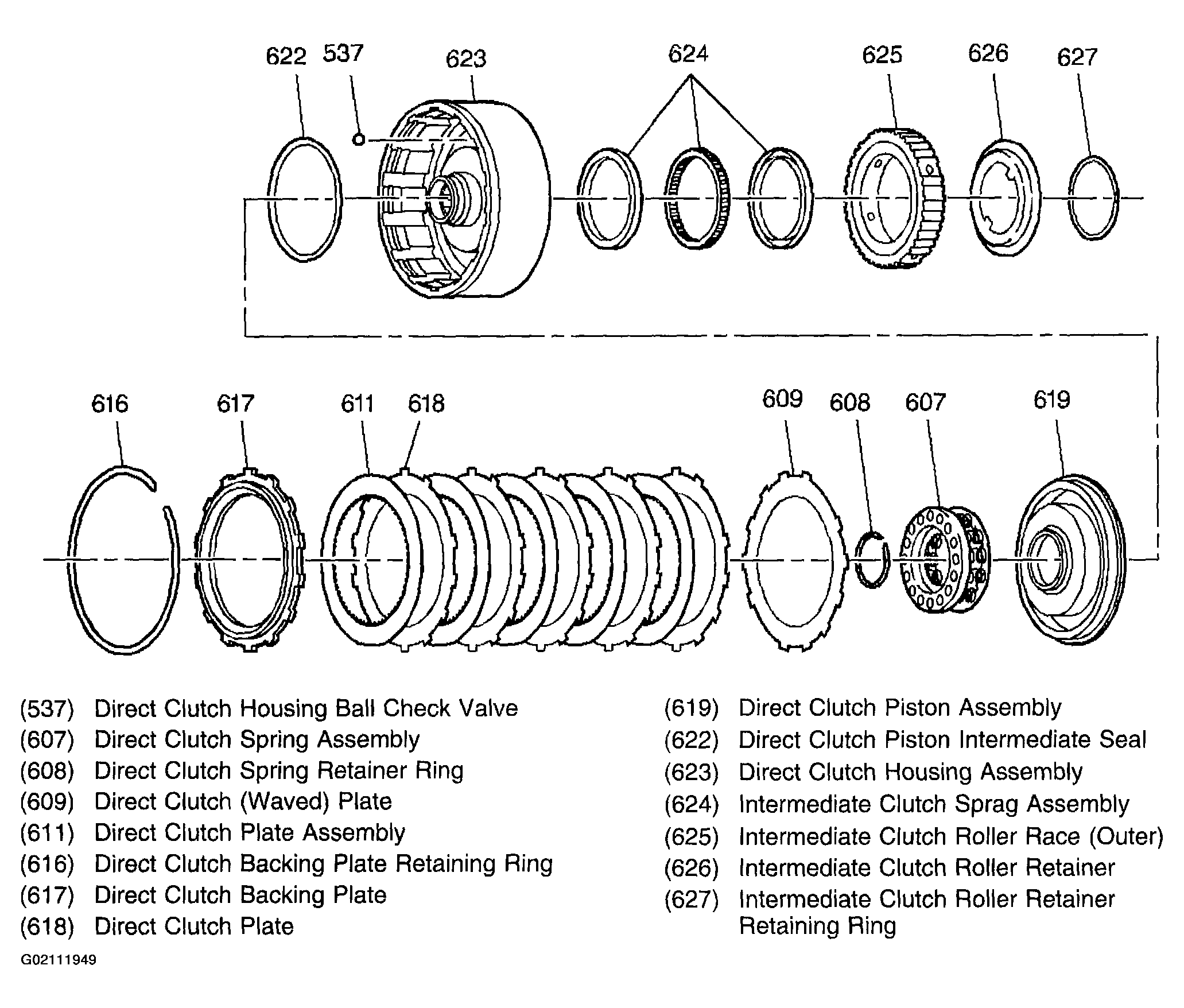

Fig 11: Exploded View Of Direct Clutch And Intermediate Sprag Assembly
Courtesy of GENERAL MOTORS CORP.

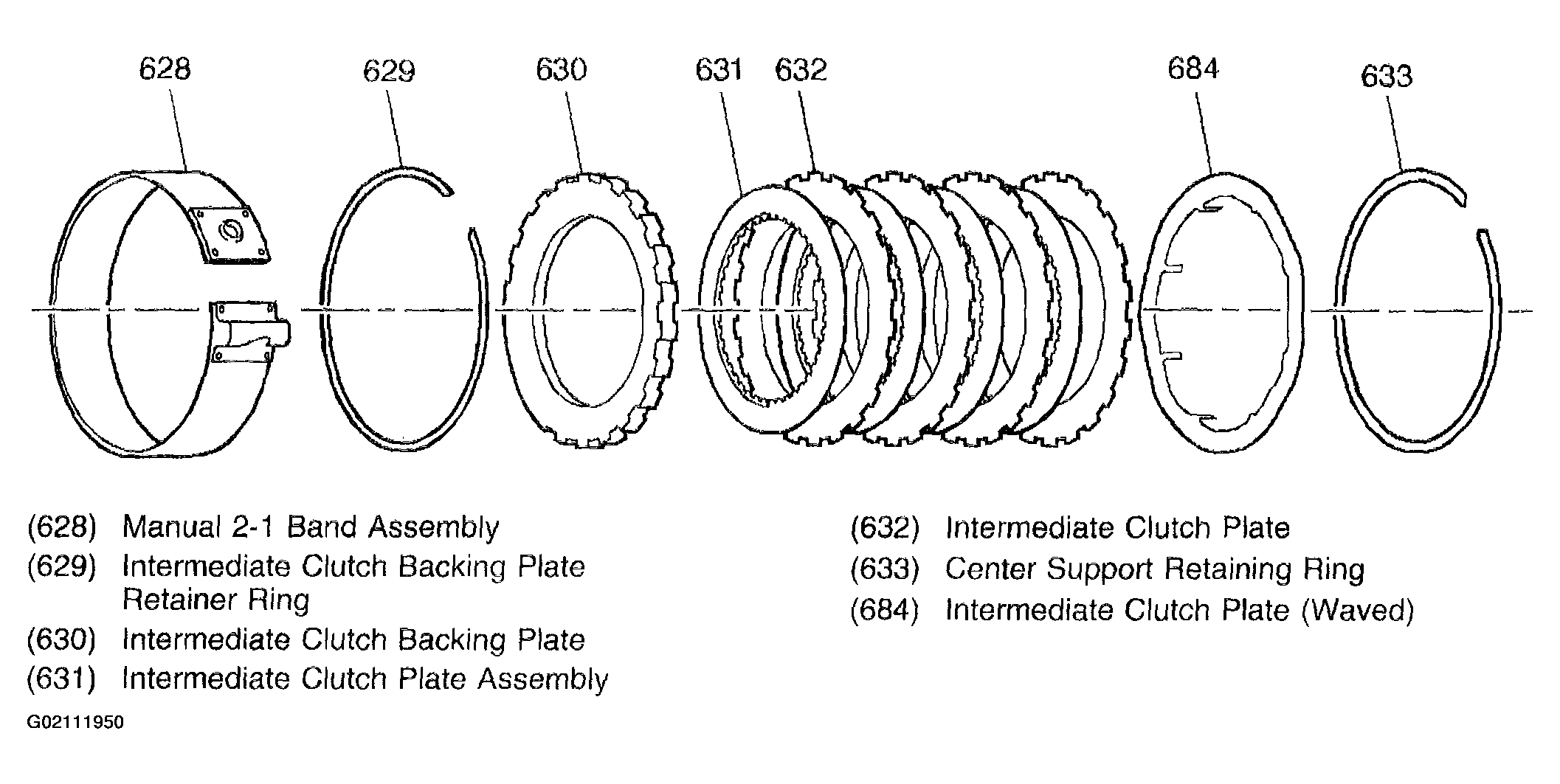

Fig 12: Exploded View Of Intermediate Clutch Plates And Manual 2 - 1 Band Assembly
Courtesy of GENERAL MOTORS CORP.

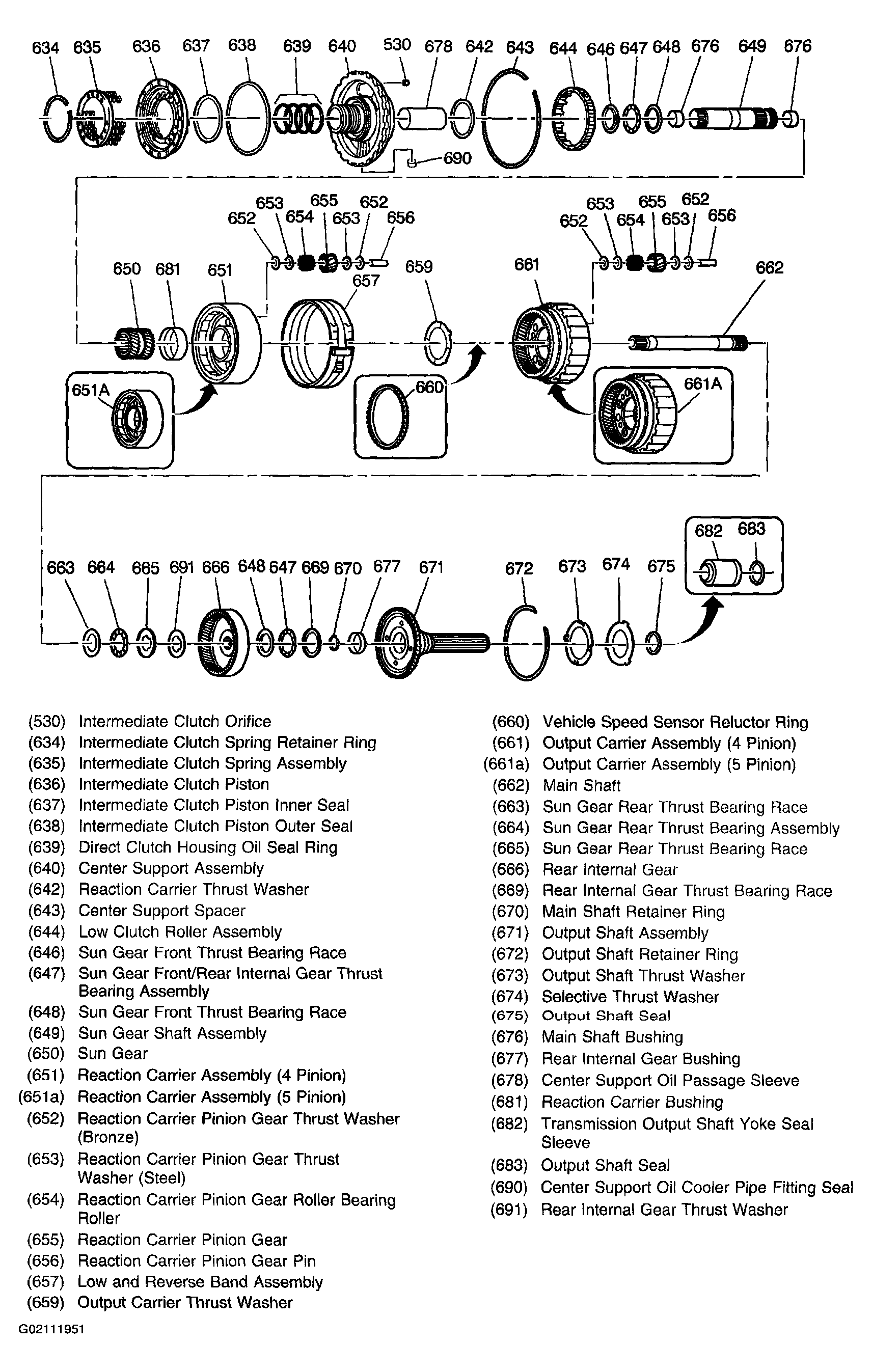

Fig 13: Exploded View Of Center Support And Gear Unit Assembly
Courtesy of GENERAL MOTORS CORP.

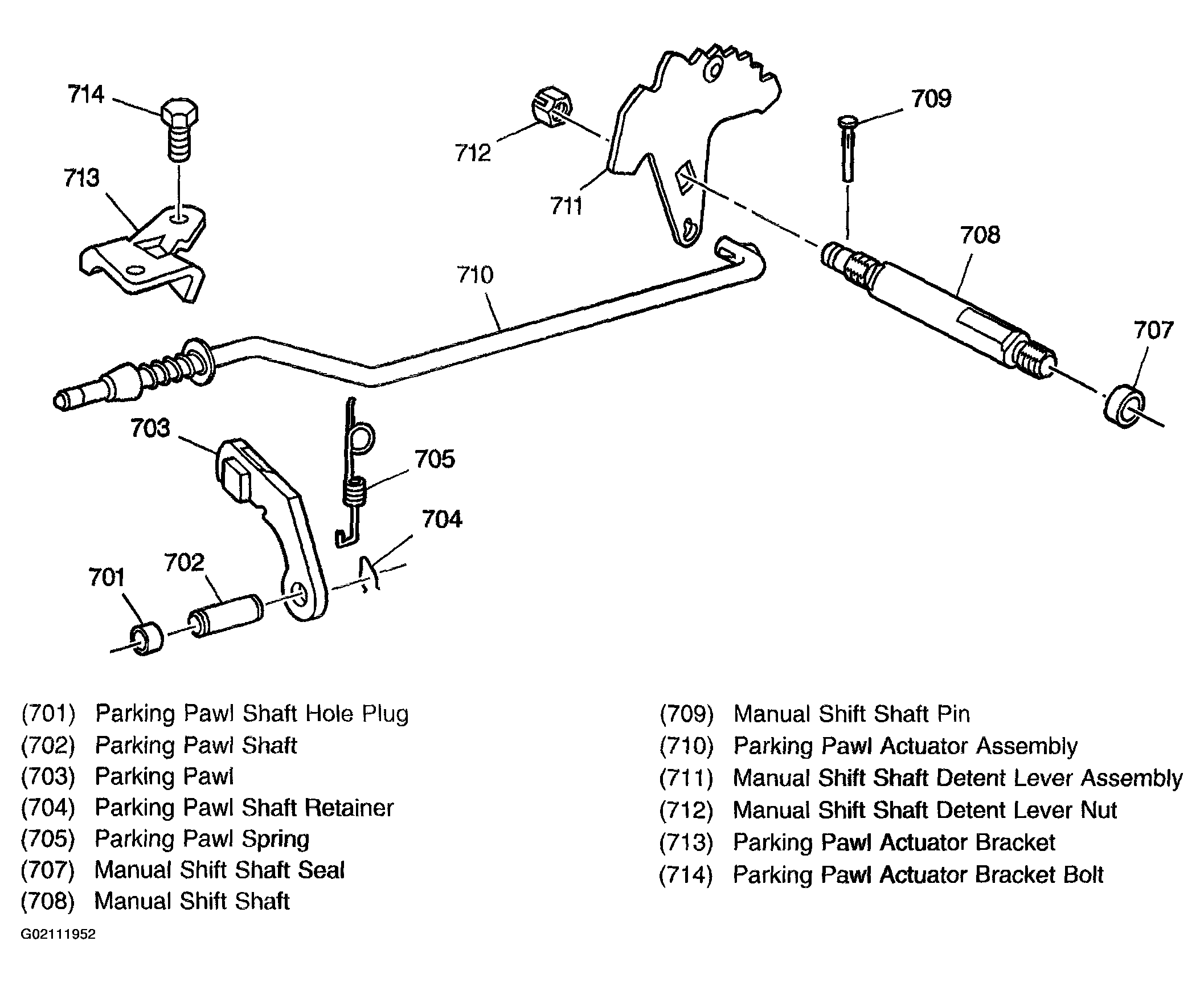

Fig 14: Exploded View Of Parking Lock And Actuator Assembly
