Automatic Transmission Related connector End Views

WARNING: This page is about a different car, the 2003 GMC Yukon XL, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

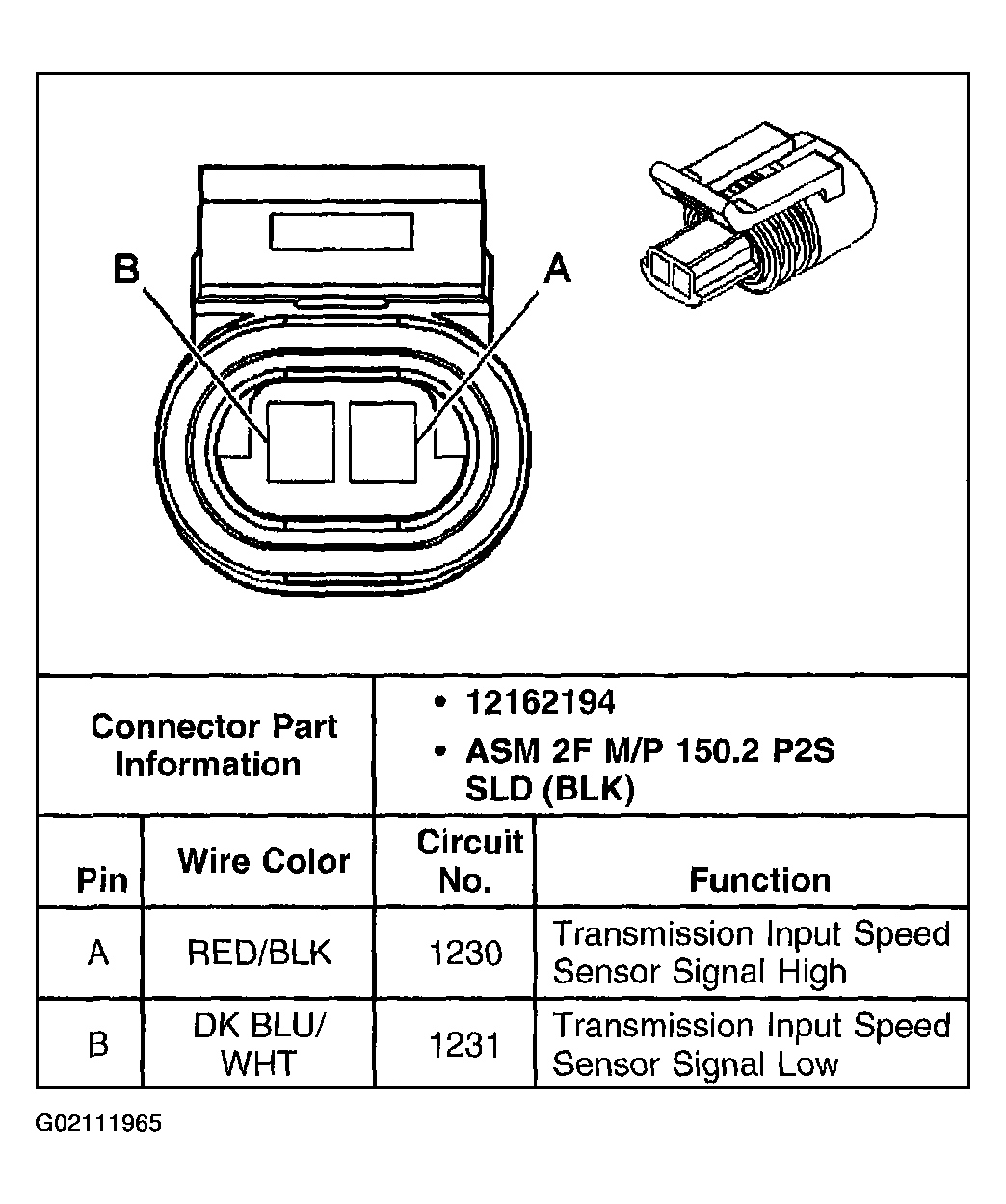

Fig 1: Identifying Automatic Transmission Input Shaft Speed (AT ISS) Sensor Connector

Courtesy of GENERAL MOTORS CORP.

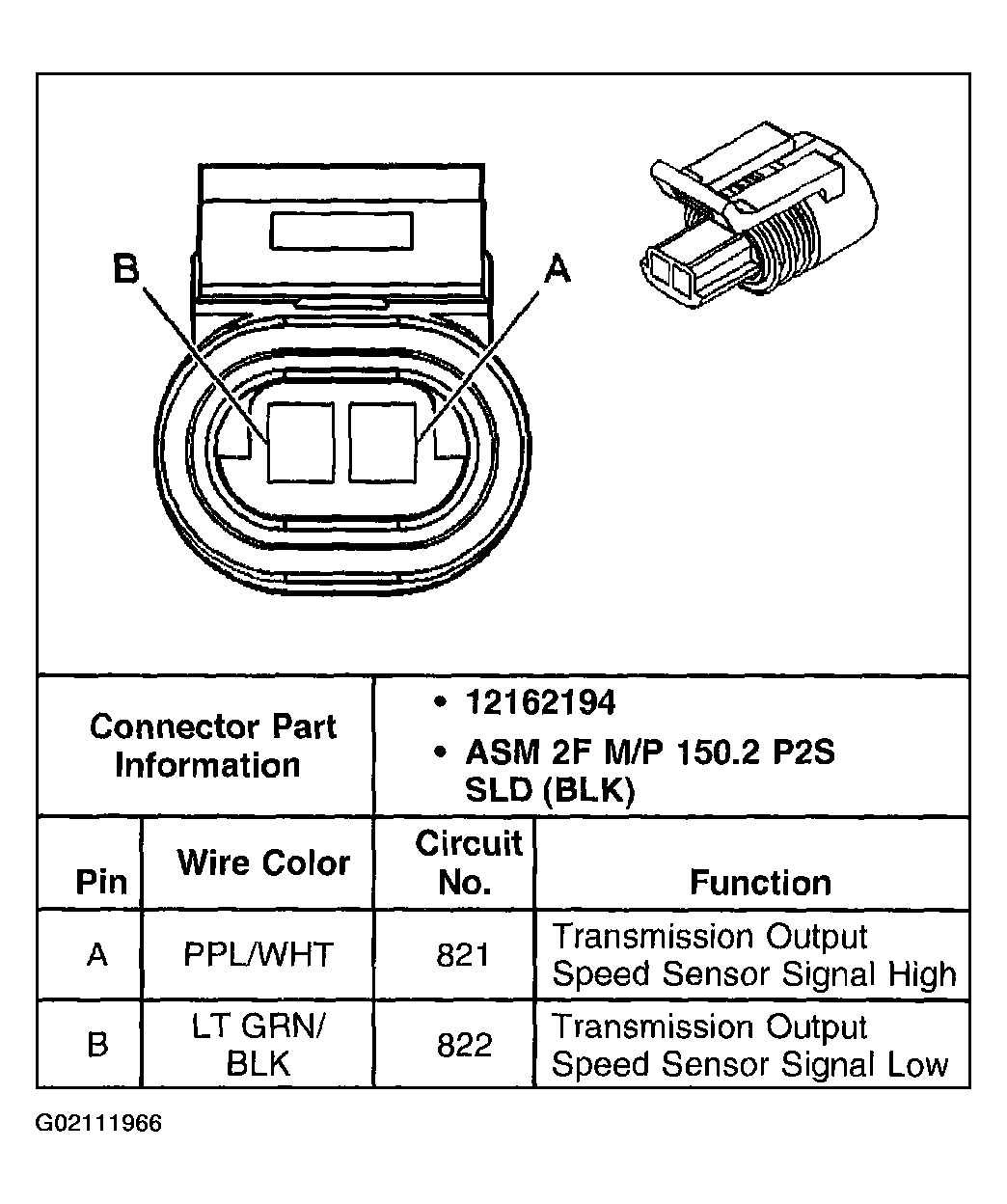

Fig 2: Identifying Automatic Transmission Output Shaft Speed (AT OSS) Sensor Connector

Courtesy of GENERAL MOTORS CORP.

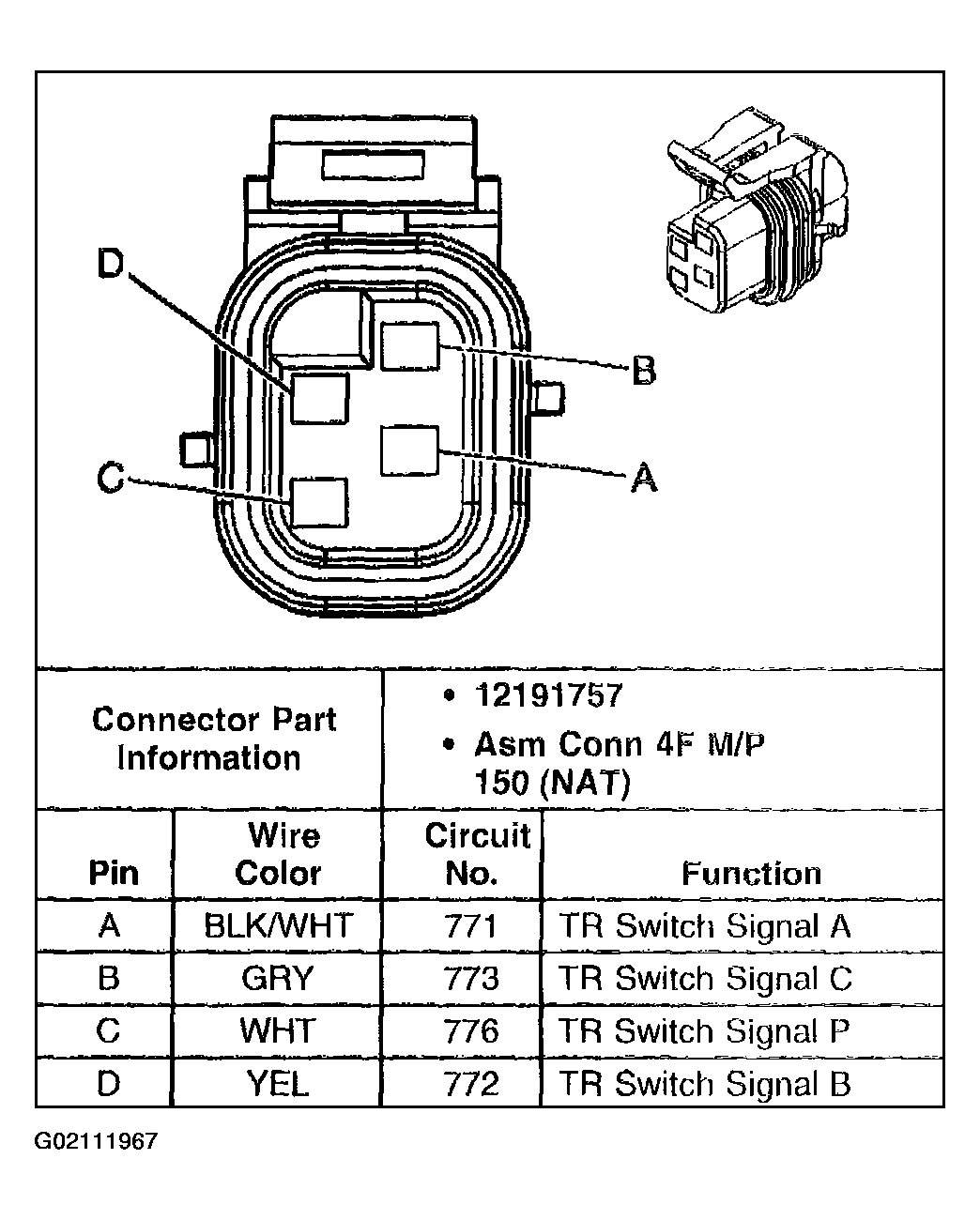

Fig 3: Identifying Transmission Range Switch Connector, Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.

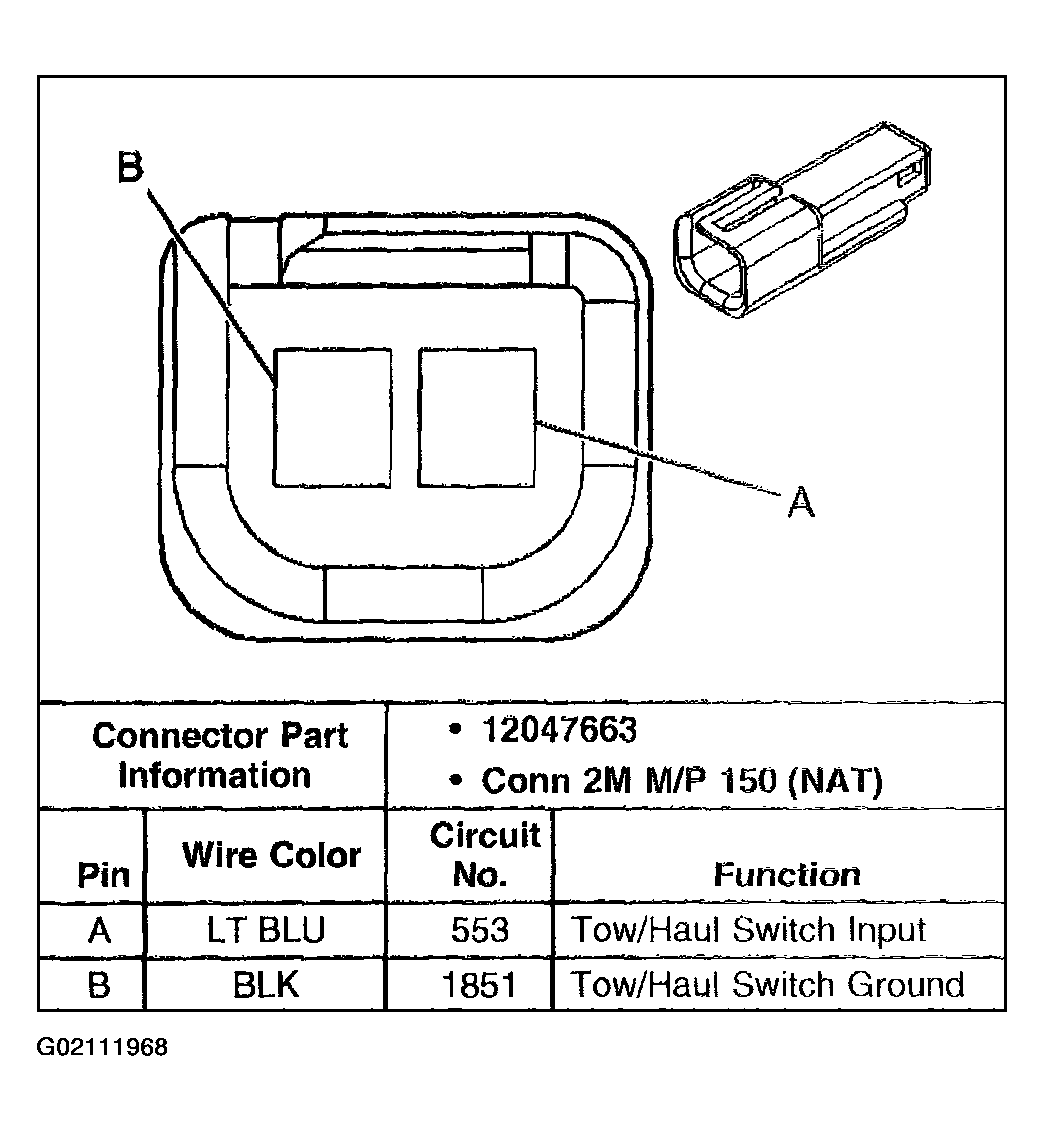

Fig 4: Identifying Tow/Switch Connector, Column Wiring Harness Side

Courtesy of GENERAL MOTORS CORP.
