Automatic Transmission Inline 20-Way Connector End View

WARNING: This page is about a different car, the 2003 GMC Yukon XL, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

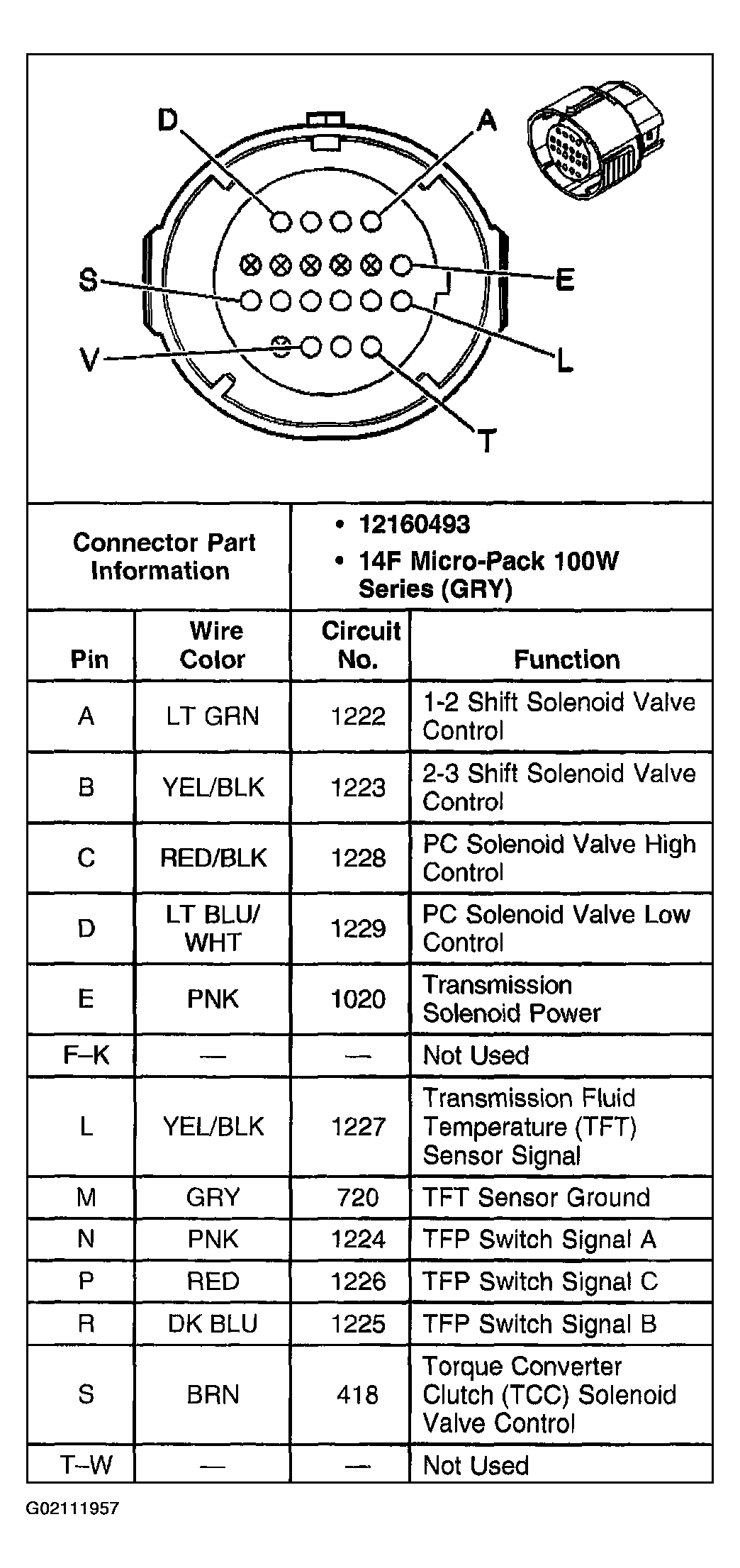

Fig 1: Identifying Inline Harness Connector C103, Engine Side
G02111957Courtesy of GENERAL MOTORS CORP.

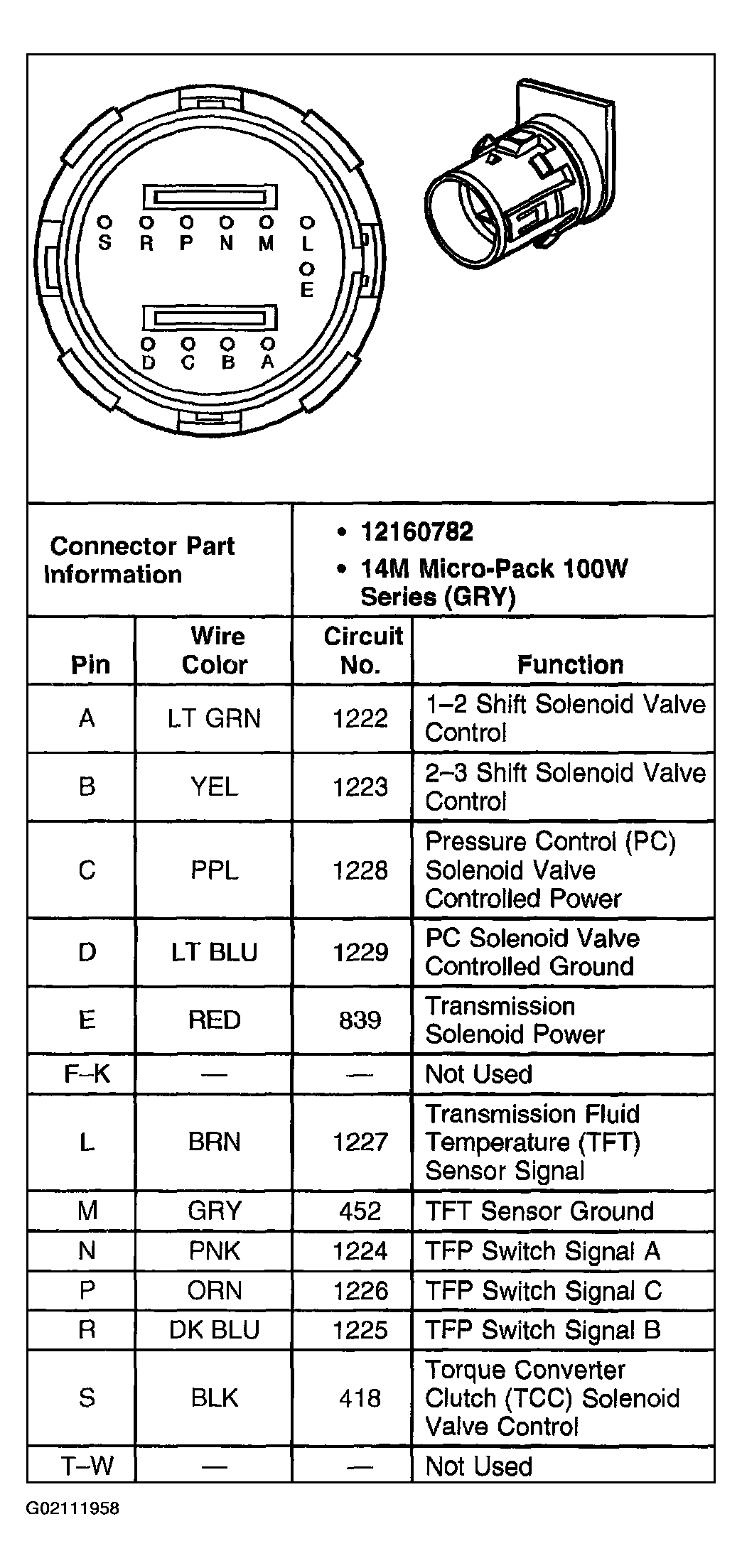

Fig 2: Identifying Inline Harness Connector - Transmission Side
G02111958Courtesy of GENERAL MOTORS CORP.
