Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. If the vehicle is a 1500 series, remove the transfer case shield bolts, if equipped.
  3. Remove the transfer case shield, if equipped.
    Fig 1: Removing Transfer Case Shield Bolts
    G01456496Courtesy of GENERAL MOTORS CORP.
  4. If the vehicle is a 2500 series, remove the transfer case shield screws, if equipped.
  5. Remove the transfer case shield, if equipped.

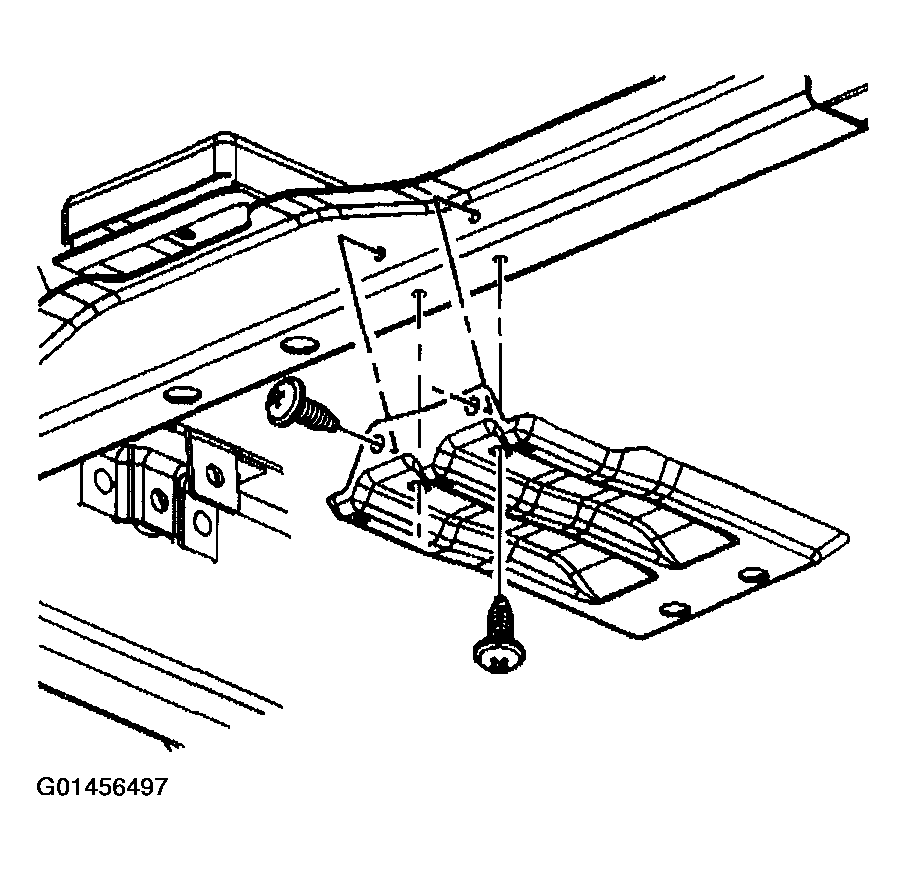

    Fig 2: Removing Transfer Case Shield
    G01456497Courtesy of GENERAL MOTORS CORP.
