Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.
  1. If the vehicle is a 2500 series, position the transfer case shield, if equipped.
  2. Install the transfer case shield screws, if equipped.

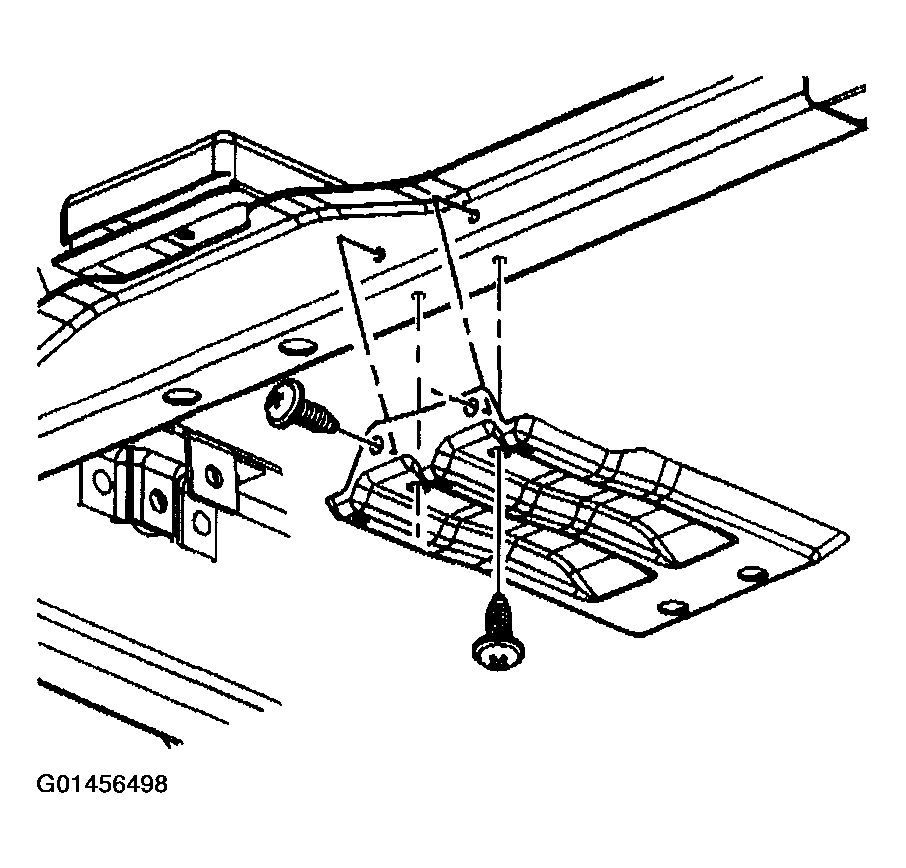

    Fig 1: Installing Transfer Case Shield
    G01456498Courtesy of GENERAL MOTORS CORP.
  3. If the vehicle is a 1500 series, position the transfer case shield, if equipped.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Install the transfer case shield bolts, if equipped.

    Tighten

    Tighten the bolts/screws to 20 N.m (15 lb ft).

  5. Lower the vehicle.
    Fig 2: Installing Transfer Case Shield Bolts
    G01456499Courtesy of GENERAL MOTORS CORP.
