Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transfer case. Refer to TRANSFER CASE ASSEMBLY REPLACEMENT .

    Important:  It may be necessary to use a sharp punch in order to poke a hole into the seal prior to inserting J 36825.

  2. Using J 23907  (1), and J 36825  (2), remove the input seal.

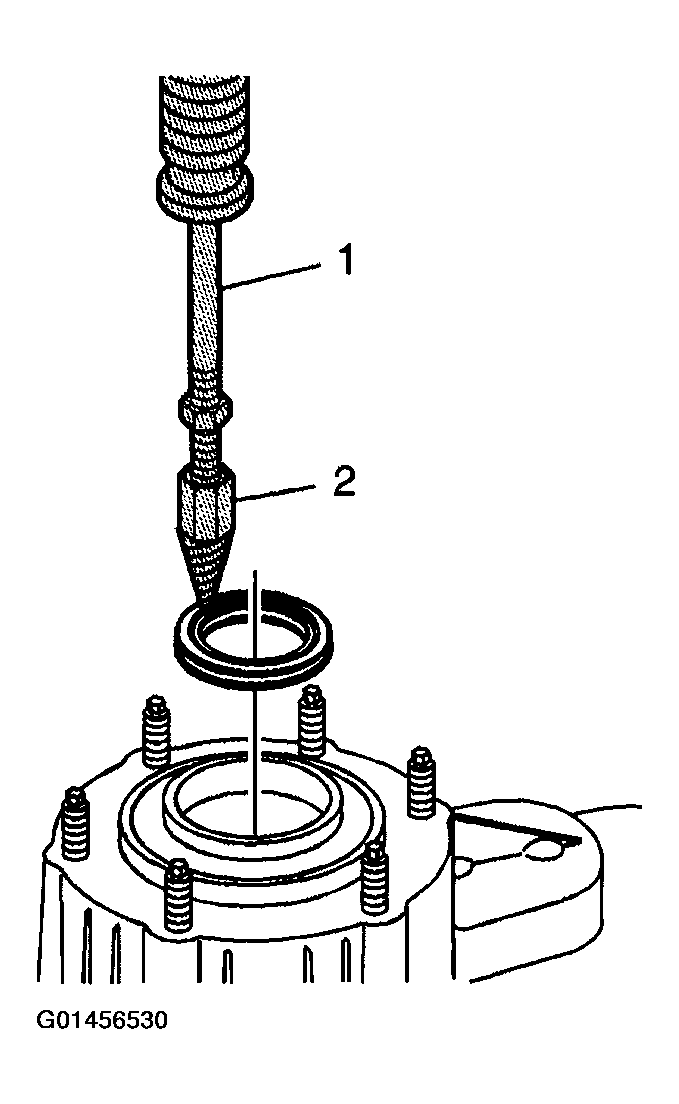

    Fig 1: Removing Input Shaft Seal
    G01456530Courtesy of GENERAL MOTORS CORP.
