Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using J 42738  , install the input shaft seal.
  2. Install the transfer case. Refer to TRANSFER CASE ASSEMBLY REPLACEMENT .

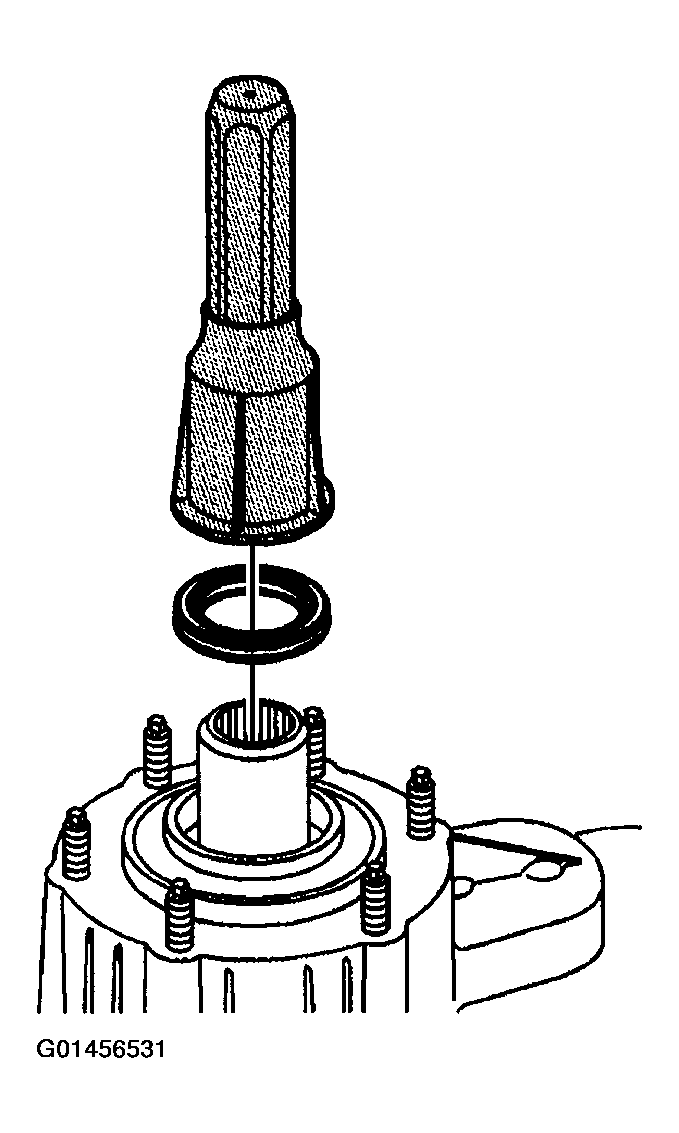

    Fig 1: Installing Input Shaft Seal
    G01456531Courtesy of GENERAL MOTORS CORP.
