Installation Procedure
WARNING: This page is about a different car, the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.
Important: Use only drain and fill plugs that are made from aluminum. Steel or brass plugs are not compatible with the magnesium case.
- Apply sealant, GM P/N 12346004, (Canadian P/N 10953480), or equivalent to the threads on the drain and fill plugs.NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
- Install the drain plug.
Tighten
Tighten the plug to 25 N.m (18 lb ft).

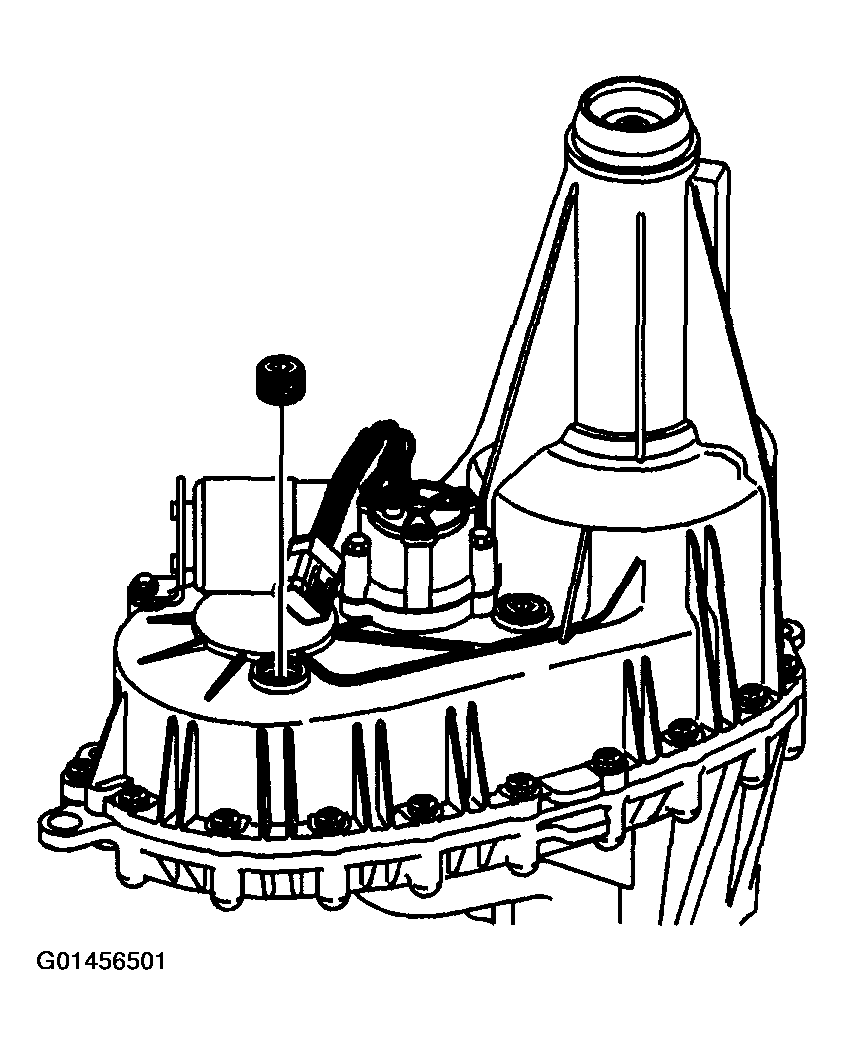

- Fill the transfer case to the bottom of the fill plug hole with the approved fluid.
- Install the fill plug.
Tighten
Tighten the plug to 25 N.m (18 lb ft).
- Install the transfer case shield, if equipped. Refer to TRANSFER CASE SHIELD REPLACEMENT .
