Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transfer case. Refer to TRANSFER CASE ASSEMBLY REPLACEMENT .
  2. Remove the transfer case adapter bolts.
  3. Remove the transfer case adapter.
  4. Remove the transfer case seal.

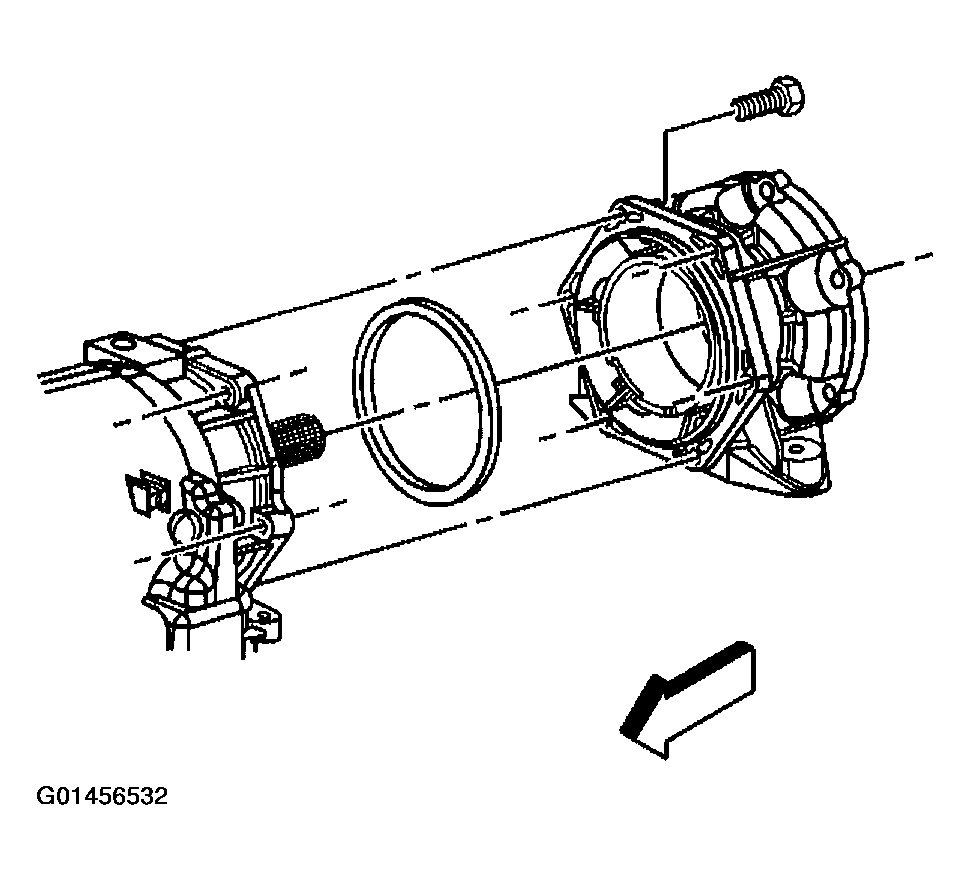

    Fig 1: Removing Transfer Case Adapter
    G01456532Courtesy of GENERAL MOTORS CORP.
