Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Yukon, 2003 Cadillac Escalade EXT, 2003 Cadillac Escalade ESV, and 2003 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the J 43484  (2) to the J 8092  (1).
  2. Install a NEW seal onto J 43484  .
  3. Using J 43484  (2), and J 8092  (1), install the seal.
  4. Install the front propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT -- FRONT in Propeller Shaft.
  5. Check the fluid level. Add fluid, if necessary.
  6. Install the transfer case shield, if equipped. Refer to TRANSFER CASE SHIELD REPLACEMENT  .
  7. Lower the vehicle.

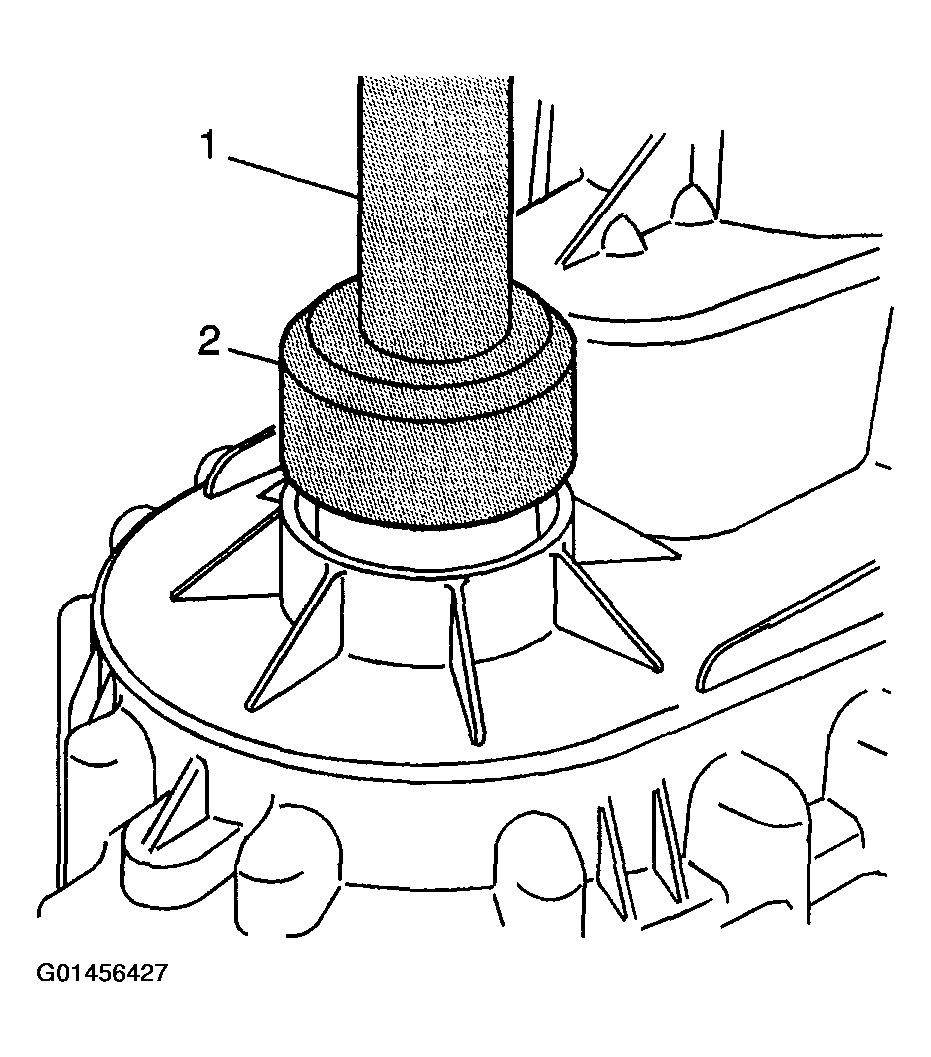

    Fig 1: Installing Seal Onto J43484
    G01456427Courtesy of GENERAL MOTORS CORP.
