Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Yukon, 2003 Cadillac Escalade EXT, 2003 Cadillac Escalade ESV, and 2003 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transfer case. Refer to TRANSFER CASE ASSEMBLY REPLACEMENT  .
  2. Remove the transfer case adapter bolts.
  3. Remove the adapter.
  4. Remove the adapter seal.

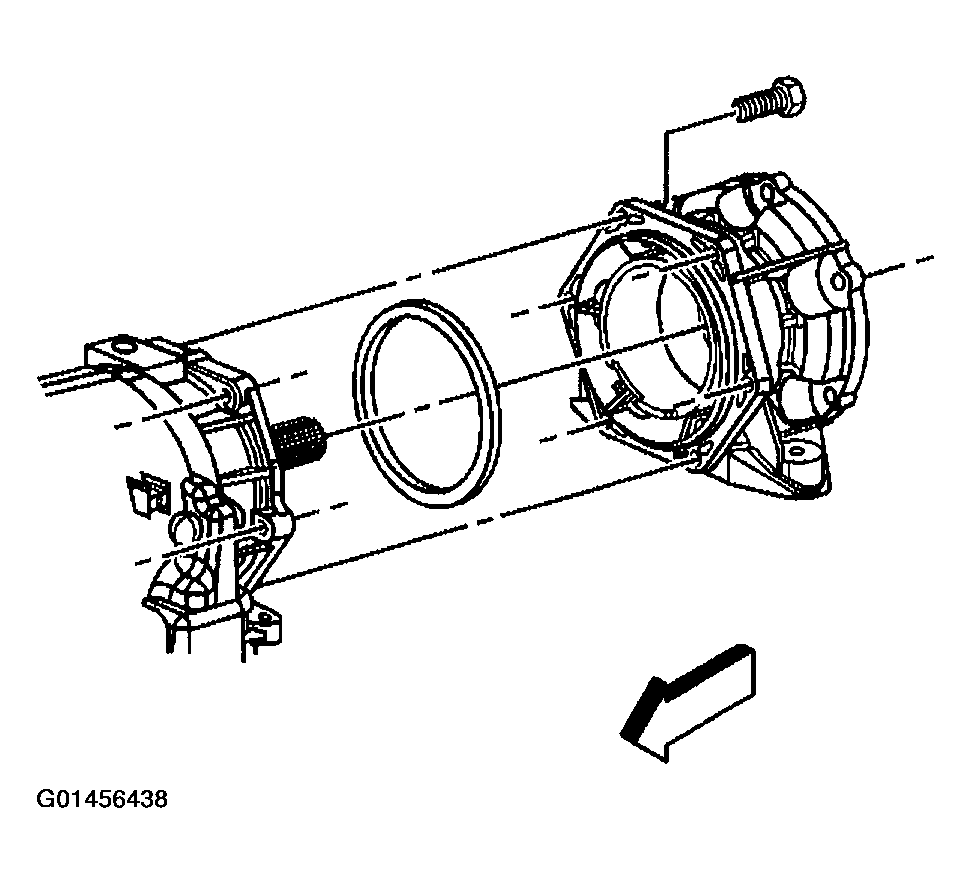

    Fig 1: Removing Transfer Case Adapter
    G01456438Courtesy of GENERAL MOTORS CORP.
