Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the axle shaft.

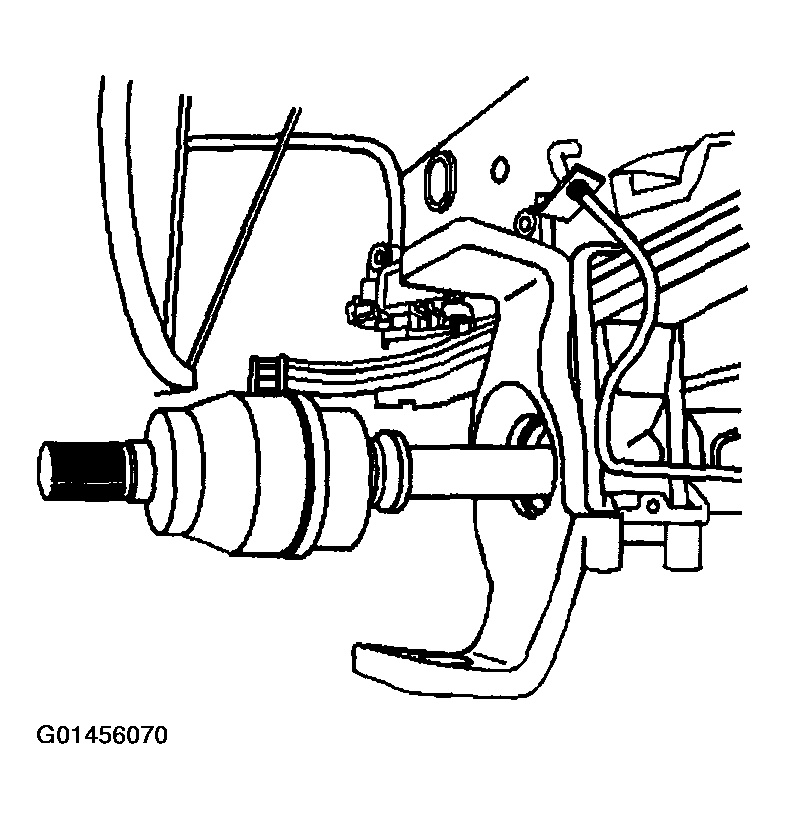

    Fig 1: Installing Rear Axle Shaft - 9.75 Inch Axle (1 Of 2)
    G01456070Courtesy of GENERAL MOTORS CORP.
  2. Install the spring loaded lock clip to the axle shaft end.
  3. Install the steering knuckle assembly. Refer to STEERING KNUCKLE REPLACEMENT in Rear Wheel Steering.
  4. Install the rear steering gear assembly. Refer to STEERING GEAR ACTUATOR AND COVER REPLACEMENT in Rear Wheel Steering.
  5. Install the tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  6. Lower the vehicle.

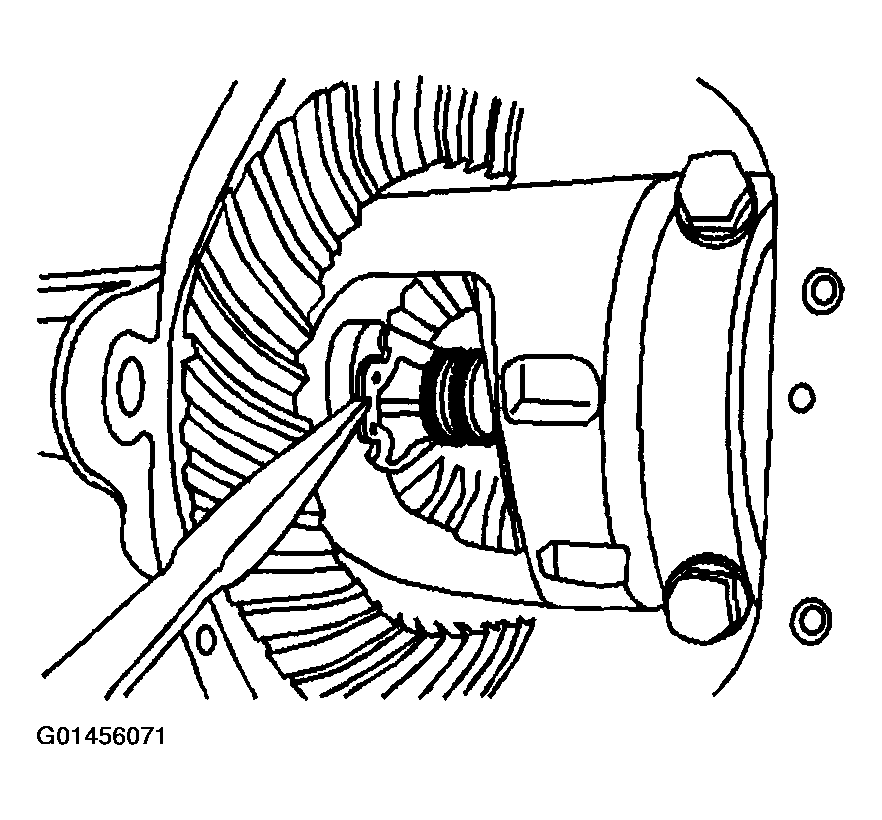

    Fig 2: Installing Rear Axle Shaft - 9.75 Inch Axle (2 Of 2)
    G01456071Courtesy of GENERAL MOTORS CORP.
