Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Drain the rear axle. Refer to LUBRICANT REPLACEMENT - REAR DRIVE AXLE (8.6 INCH AXLE)  or LUBRICANT REPLACEMENT - REAR DRIVE AXLE (9.5, 10.5 INCH AXLE)  or LUBRICANT REPLACEMENT - REAR DRIVE AXLE (9.75 INCH AXLE)
  3. Remove the rear axle housing cover bolts (1). Discard the rear axle housing cover bolts.
  4. Remove the rear axle housing cover (2) from the axle housing.
    1. Catch the oil in a drain pan.
    2. Remove any gasket material from the rear axle housing and/or the rear axle housing cover.

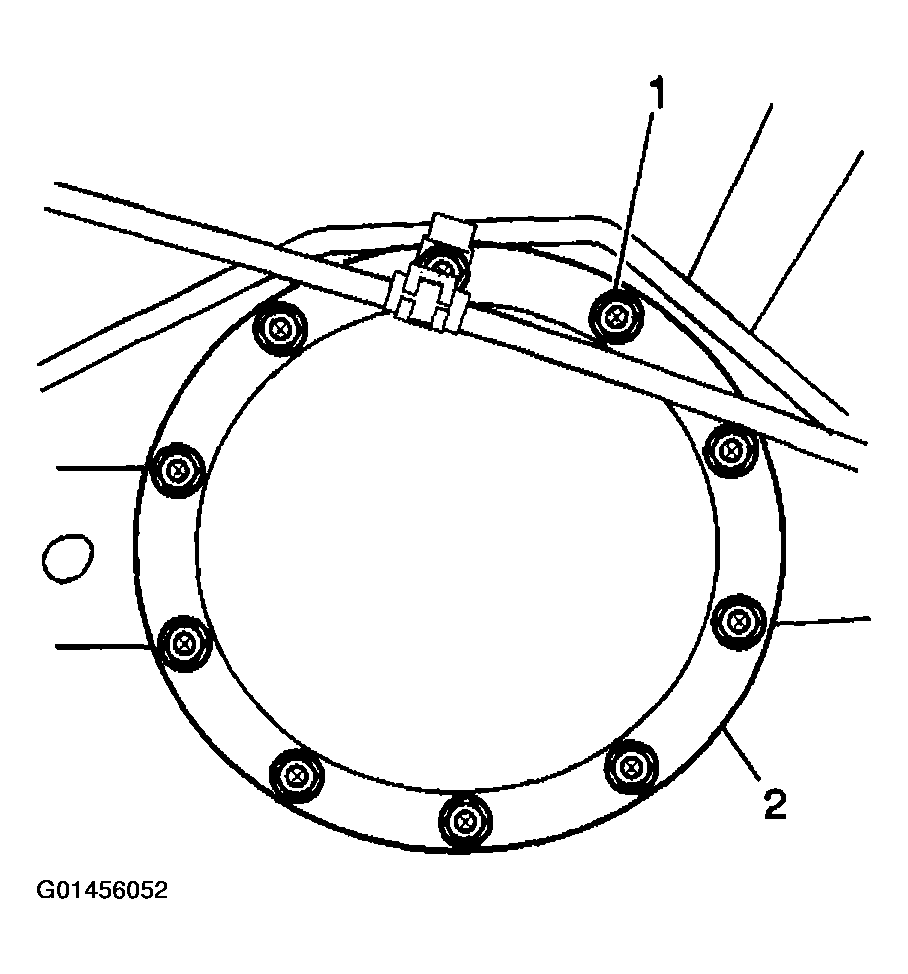

    Fig 1: Removing Rear Axle Housing Cover From Axle Housing
    G01456052Courtesy of GENERAL MOTORS CORP.
