Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the rear axle housing cover (2) and a new gasket.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

    Important:  Do not reuse the rear axle housing cover bolts.

  2. Install the new rear axle housing cover bolts (1).

    Tighten

    Tighten the rear axle housing cover bolts in a crosswise pattern to 40 N.m (30 lb ft).

  3. Fill the rear axle. Use the proper fluid.
  4. Lower the vehicle.

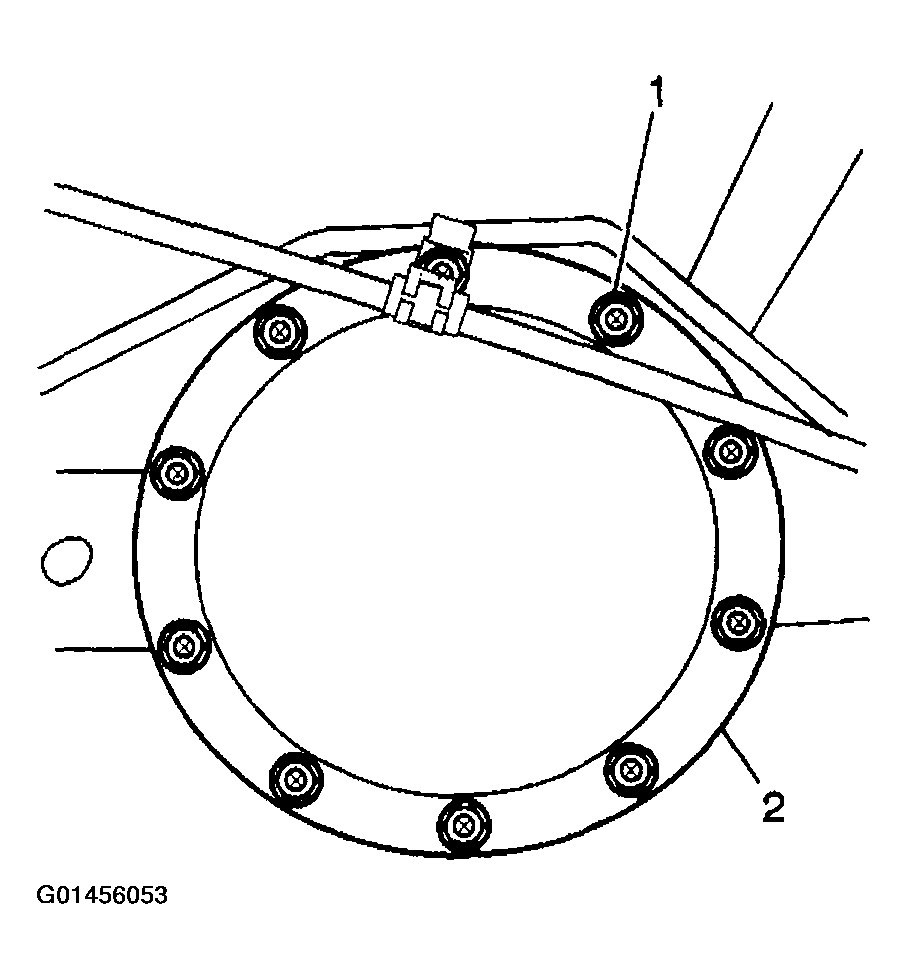

    Fig 1: Installing Rear Axle Housing Cover And A New Gasket
    G01456053Courtesy of GENERAL MOTORS CORP.
