Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
Remove the rear axle fill plug.

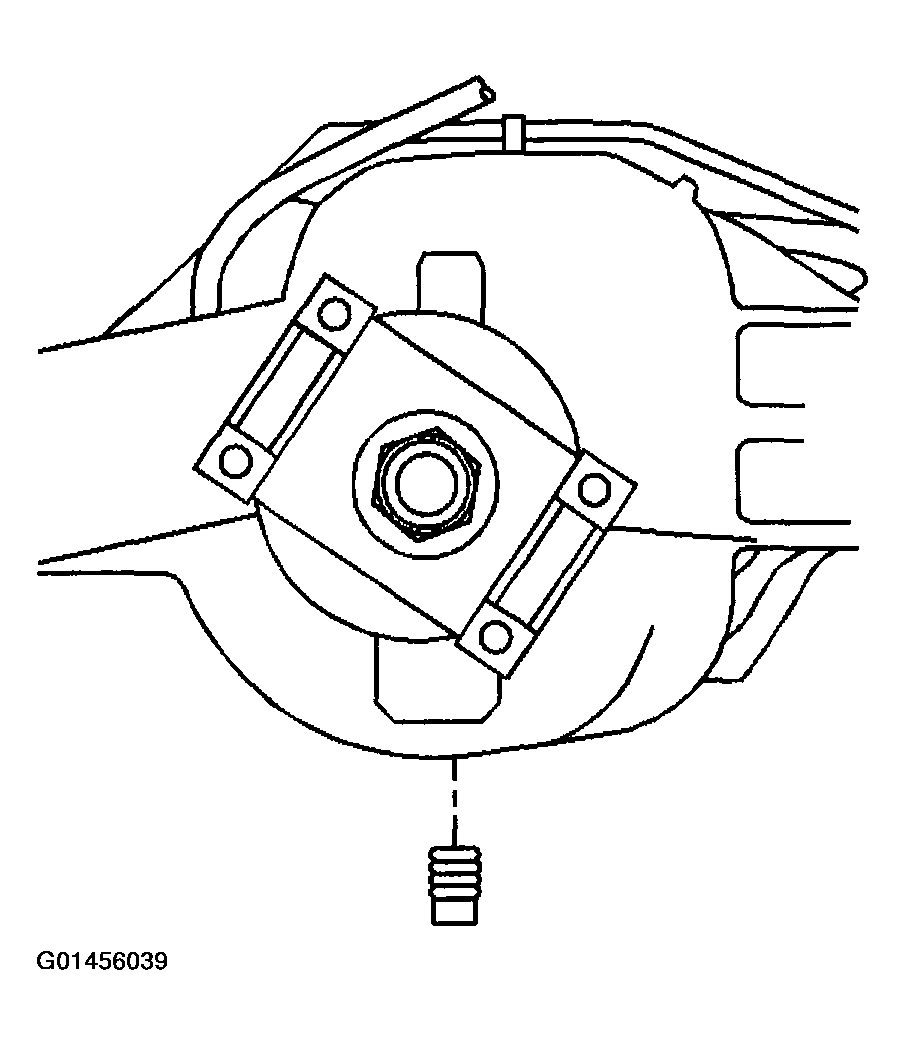

Fig 1: Remove The Rear Axle Fill Plug (9.5, 10.5 Inch Axle)
Courtesy of GENERAL MOTORS CORP.
Remove the rear axle drain plug.
Drain the lubricant into a suitable container.
Inspect the drain plug for excessive metal particle accumulation. This accumulation is symptomatic of extreme wear.
Clean the drain plug.

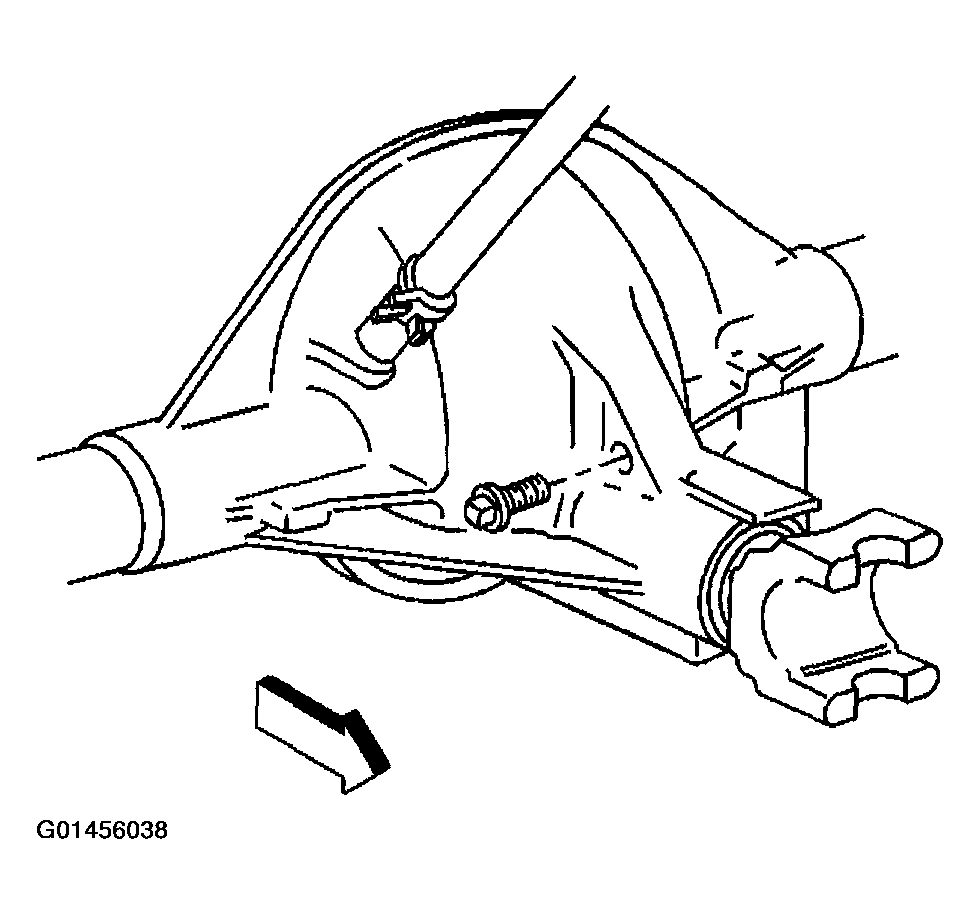

Fig 2: Removing Rear Axle Drain Plug (9.5, 10.5 Inch Axle)
Courtesy of GENERAL MOTORS CORP.
