Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the rear axle fill plug.

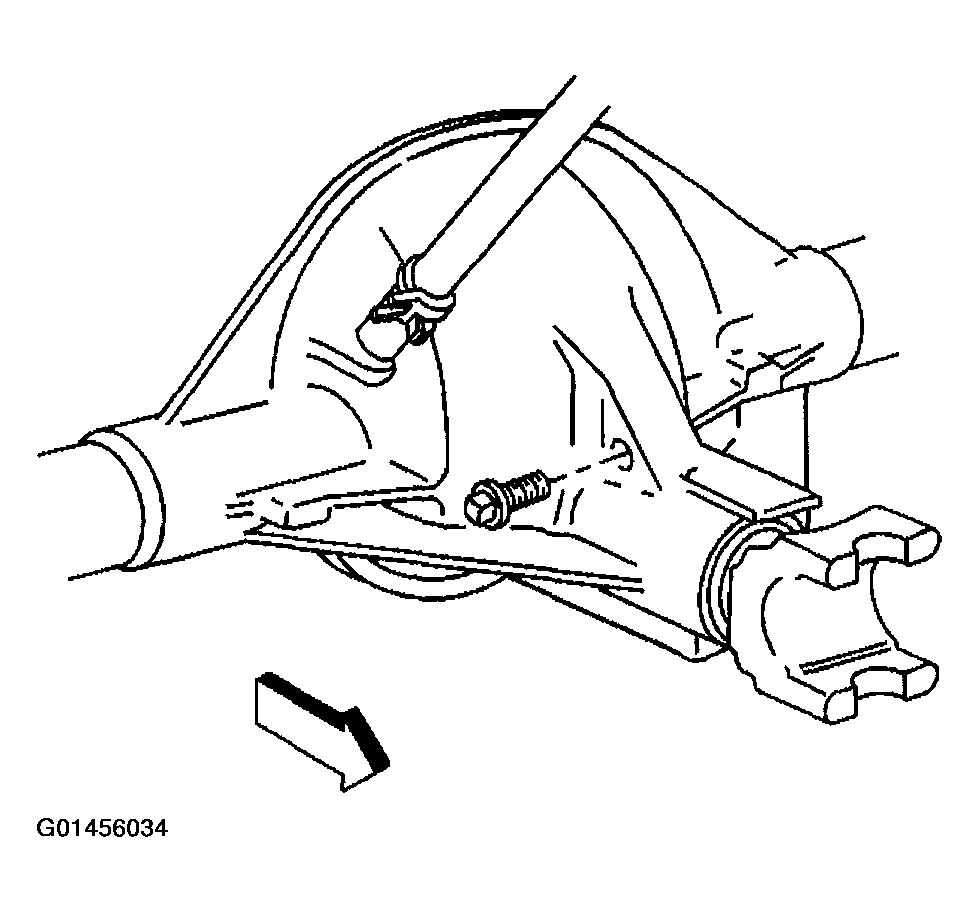

    Fig 1: Removing Rear Axle Fill Plug (8.6 Inch Axle)
    G01456034Courtesy of GENERAL MOTORS CORP.
  3. Remove the rear axle housing cover bolts (1). Discard the rear axle housing cover bolts.
  4. Carefully remove the rear axle housing cover (2) and drain the lubricant into a suitable container.
  5. Remove any gasket material from the rear axle housing and/or the rear axle housing cover.
  6. Inspect the bottom of the rear axle housing for excessive metal particle accumulation. This accumulation is an indication of extreme wear.

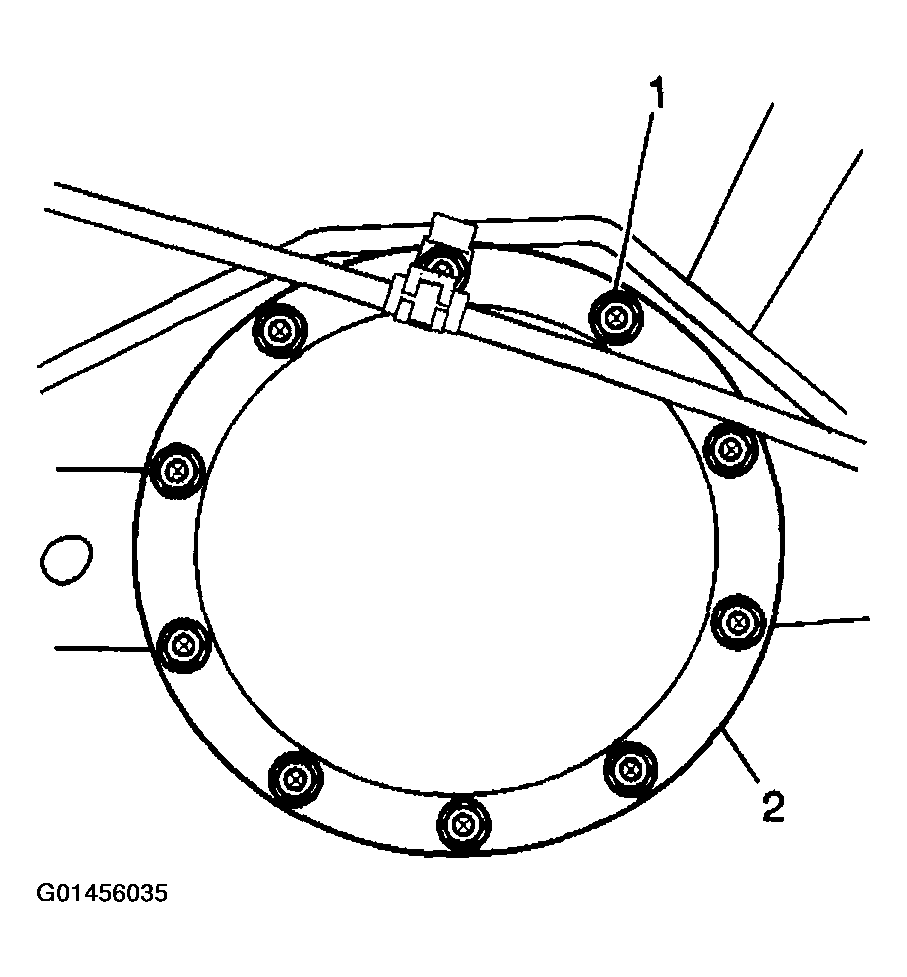

    Fig 2: Removing Rear Axle Housing Cover Bolts (8.6 Inch Axle)
    G01456035Courtesy of GENERAL MOTORS CORP.
