Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Install a new gasket and the rear axle housing cover (2).
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

Important: Do not reuse the rear axle housing cover bolts.
Install the new rear axle housing cover bolts (1).
Tighten

Tighten the bolts to 40 N.m (30 lb ft).
Fill the rear axle. Use the proper fluid.

Fig 1: Installing New Rear Axle Housing Cover Bolts (8.6 Inch Axle)
Courtesy of GENERAL MOTORS CORP.
Install the rear axle fill plug.
Tighten

Tighten the rear axle fill plug to 33 N.m (24 lb ft).
Lower the vehicle.

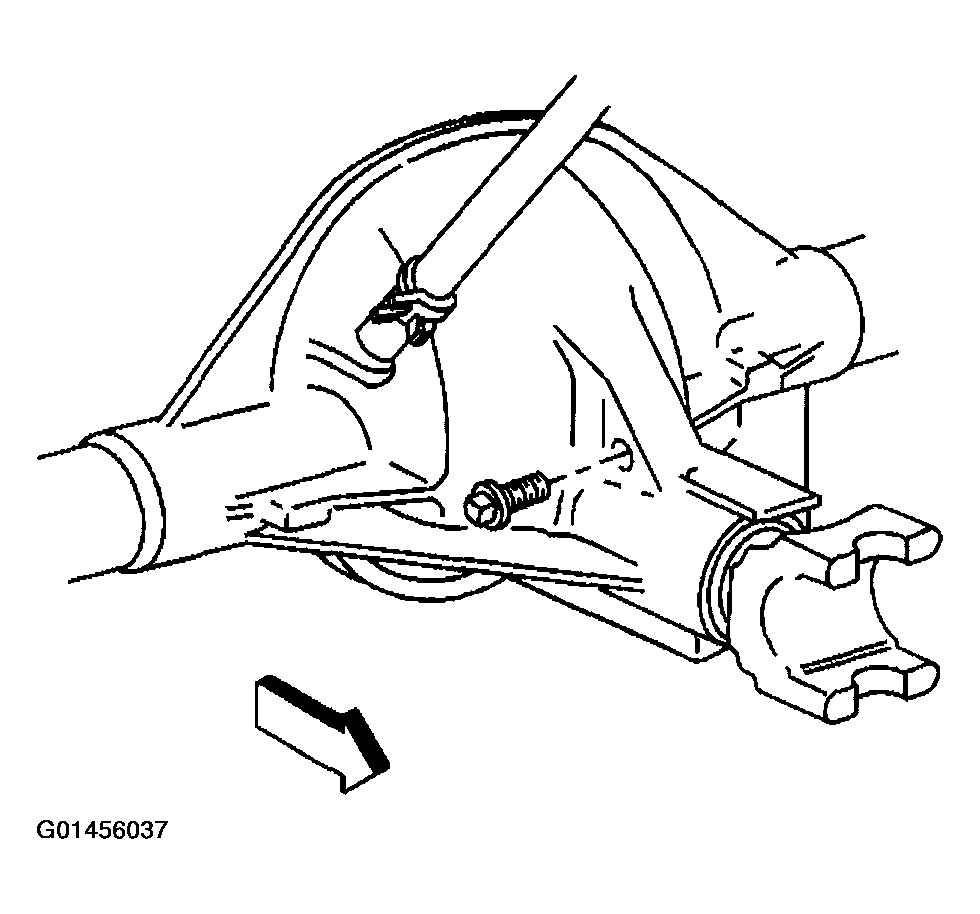

Fig 2: Installing Rear Axle Fill Plug (8.6 Inch Axle)
Courtesy of GENERAL MOTORS CORP.
