Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the differential assembly. Refer to DIFFERENTIAL REPLACEMENT (8.6 INCH, 9.5 INCH AXLES)  or DIFFERENTIAL REPLACEMENT (9.75 INCH AXLE)  or DIFFERENTIAL REPLACEMENT (10.5 INCH AXLE)  .
  2. Remove the differential side bearings by performing the following steps:
    1. For the 8.6 inch and the 9.5 inch axles, install the differential assembly in a vise.
    2. For the 10.5 inch axle, place a block of wood on each side of the differential case before installing the differential case into the vise.

      Install the differential assembly into a vise.

    3. Install the J 22888-20A  (2) and the J 8107-4  , 8.6 inch axle, or the J 36597  , 9.5 inch or 10.5 inch axles as shown.
    4. Remove the differential side bearings using the J 22888-20A  .
  3. Remove the differential assembly from the vise.

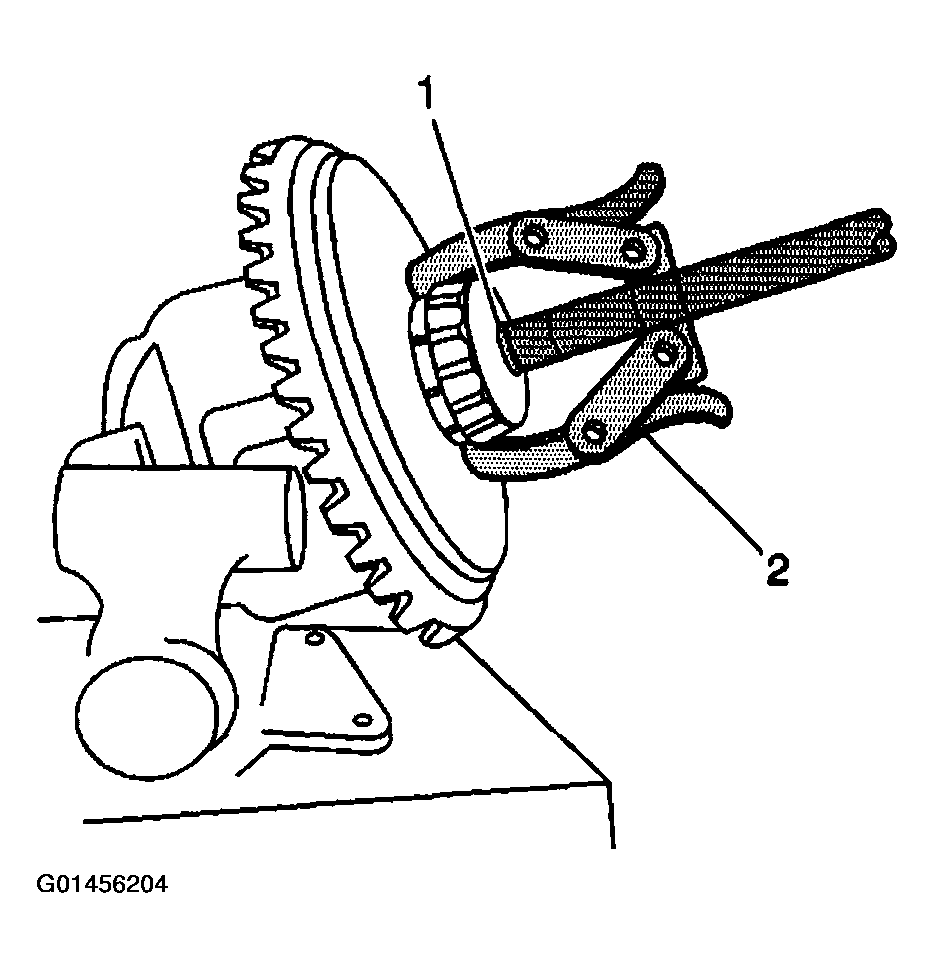

    Fig 1: Removing Differential Side Bearings (All Except 9.75 Inch Axle)
    G01456204Courtesy of GENERAL MOTORS CORP.
