Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the differential side bearings by doing the following:
    1. In order to protect the differential case, install the J 8107-4  , 8.6 inch axle, or the J 36597  , 9.5 inch or 10.5 inch axles, in the case on the side opposite the bearing installation.
    2. Install the J 21784  , 8.6 inch axle, or the J 29710  , 9.5 inch or 10.5 inch axle (2), and the J 8092  (1) onto the differential case bearing as shown.
    3. Drive the bearing onto the case using the J 21784  or the J 29710  and the J 8092  .
  2. Install the differential assembly. Refer to DIFFERENTIAL REPLACEMENT (8.6 INCH, 9.5 INCH AXLES)  or DIFFERENTIAL REPLACEMENT (9.75 INCH AXLE)  or DIFFERENTIAL REPLACEMENT (10.5 INCH AXLE)  .

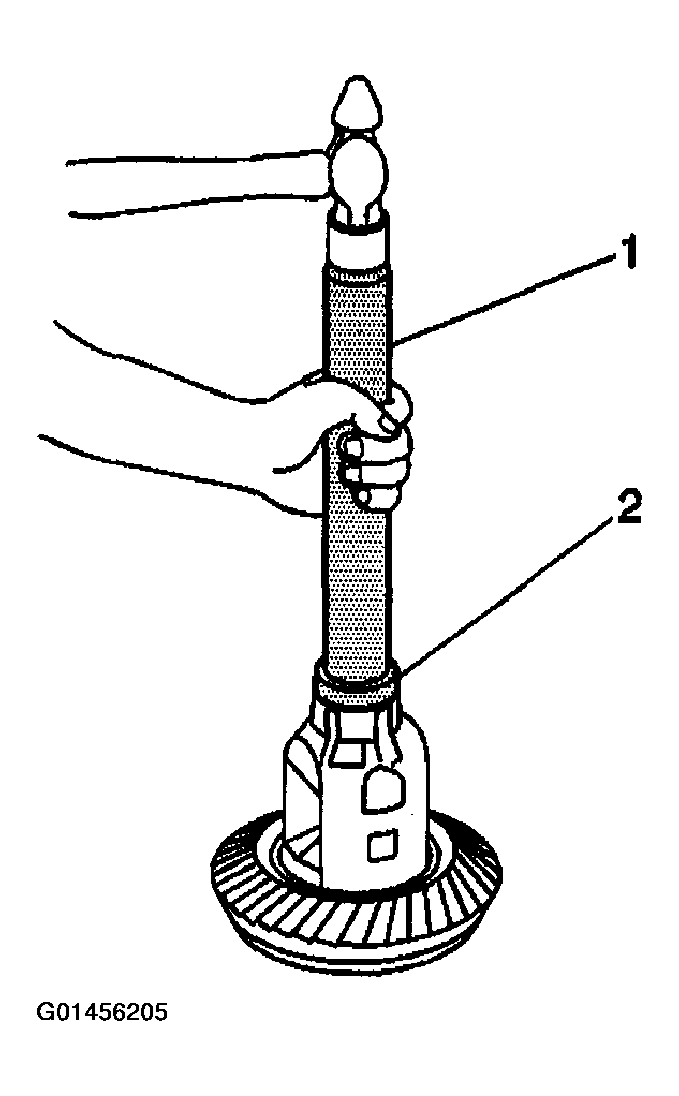

    Fig 1: Installing Differential Side Bearings (All Except 9.75 Inch Axle)
    G01456205Courtesy of GENERAL MOTORS CORP.
