Differential Adjustment Shims Specifications

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

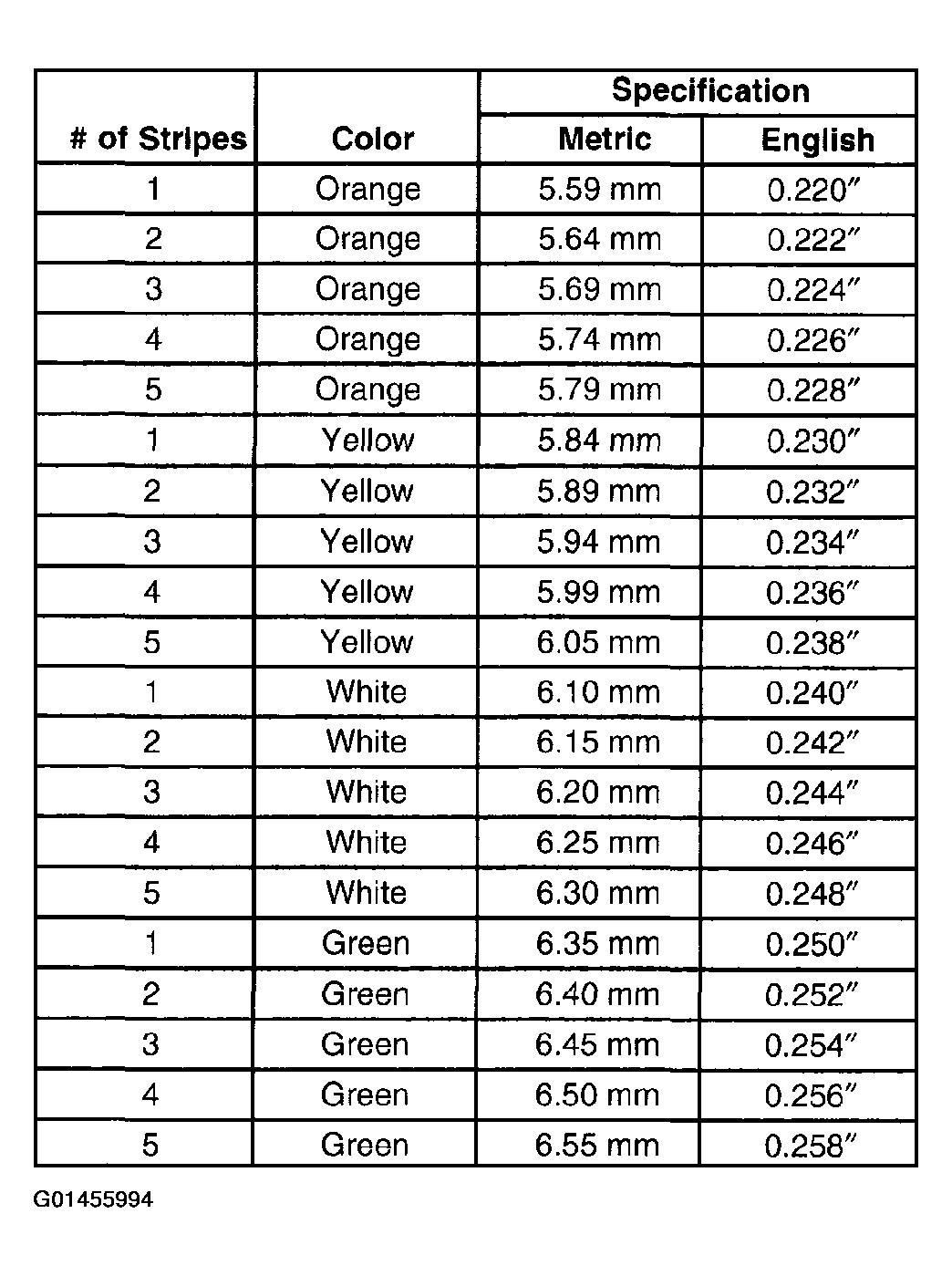

Fig 1: 8.5 Inch Axle Differential Adjustment Shims Specifications

Courtesy of GENERAL MOTORS CORP.

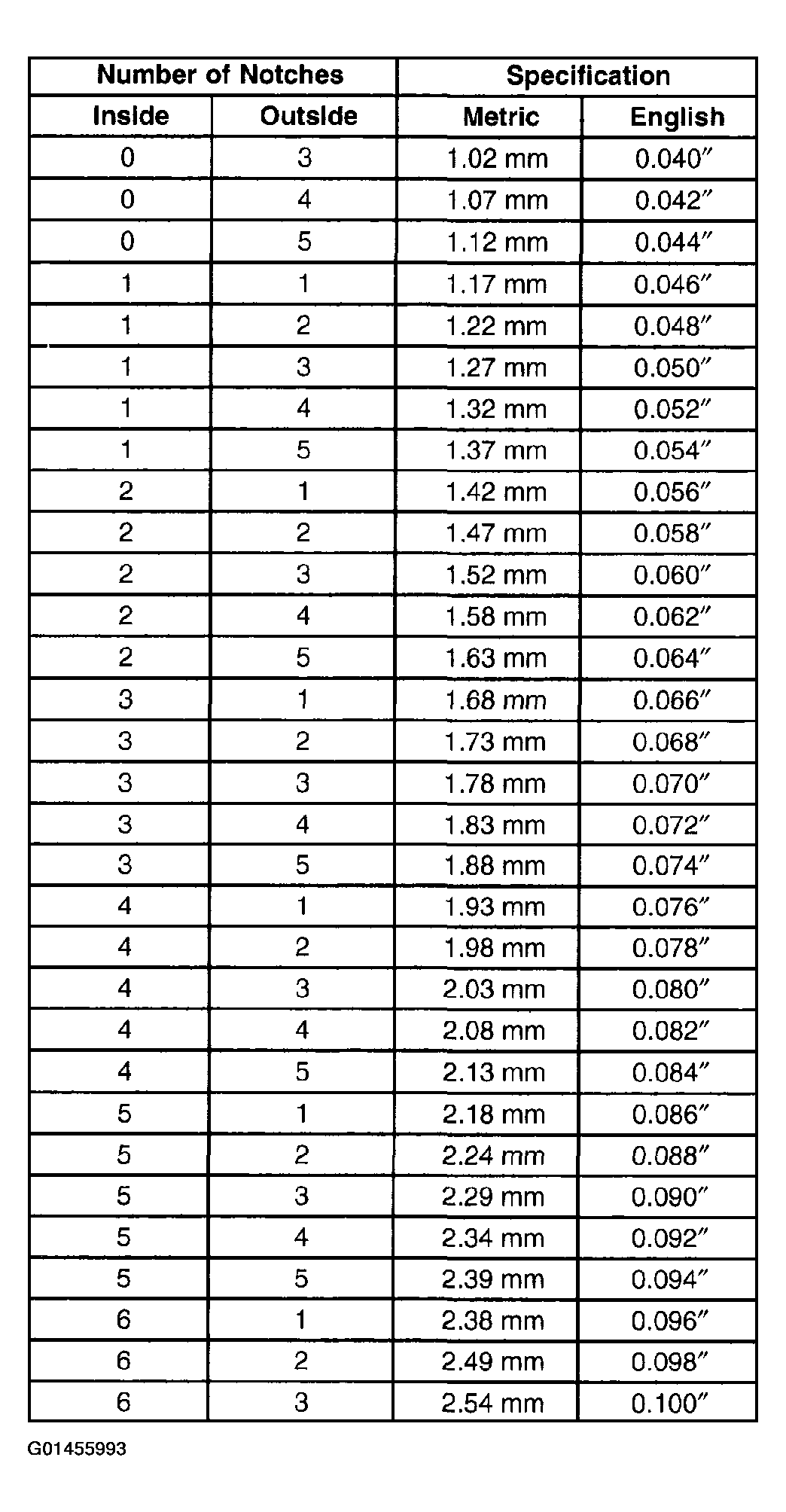

Fig 2: 9.5 Inch Axle Differential Adjustment Shims Specifications

Courtesy of GENERAL MOTORS CORP.

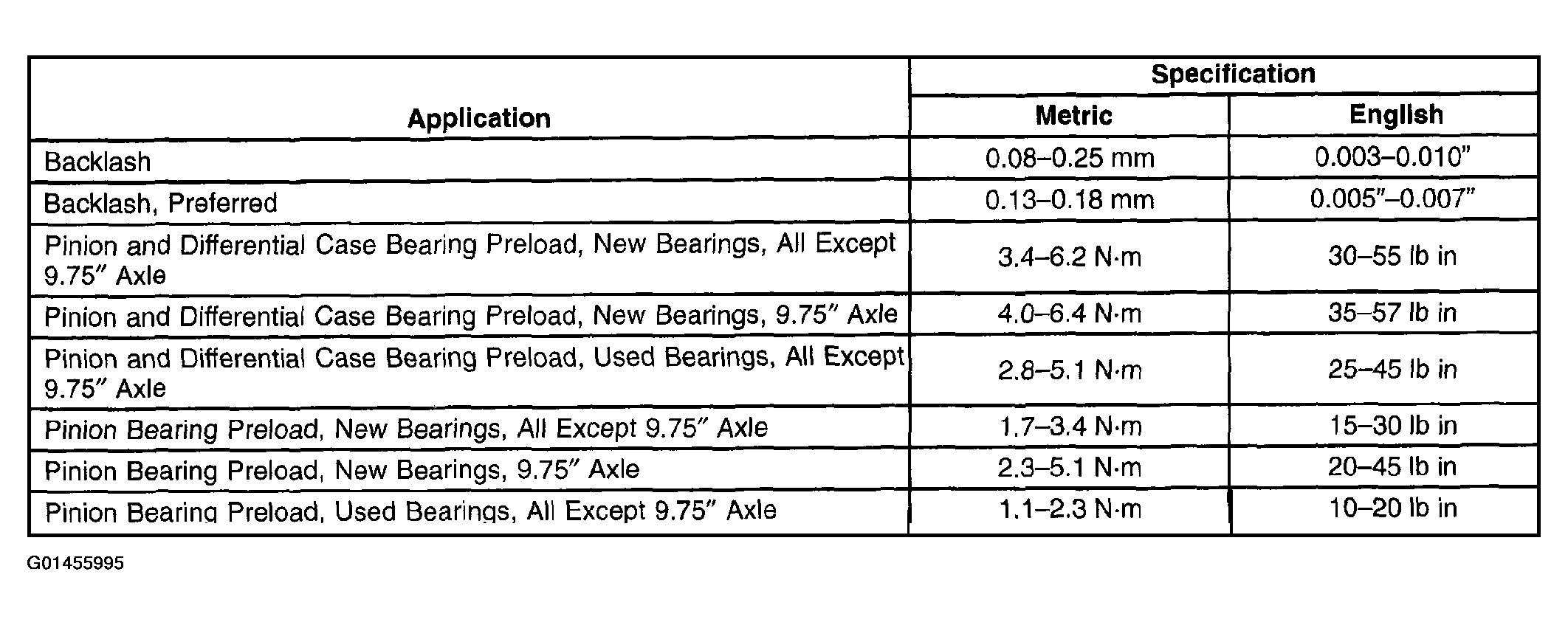

Fig 3: Axle Preload and Backlash Specifications

Courtesy of GENERAL MOTORS CORP.

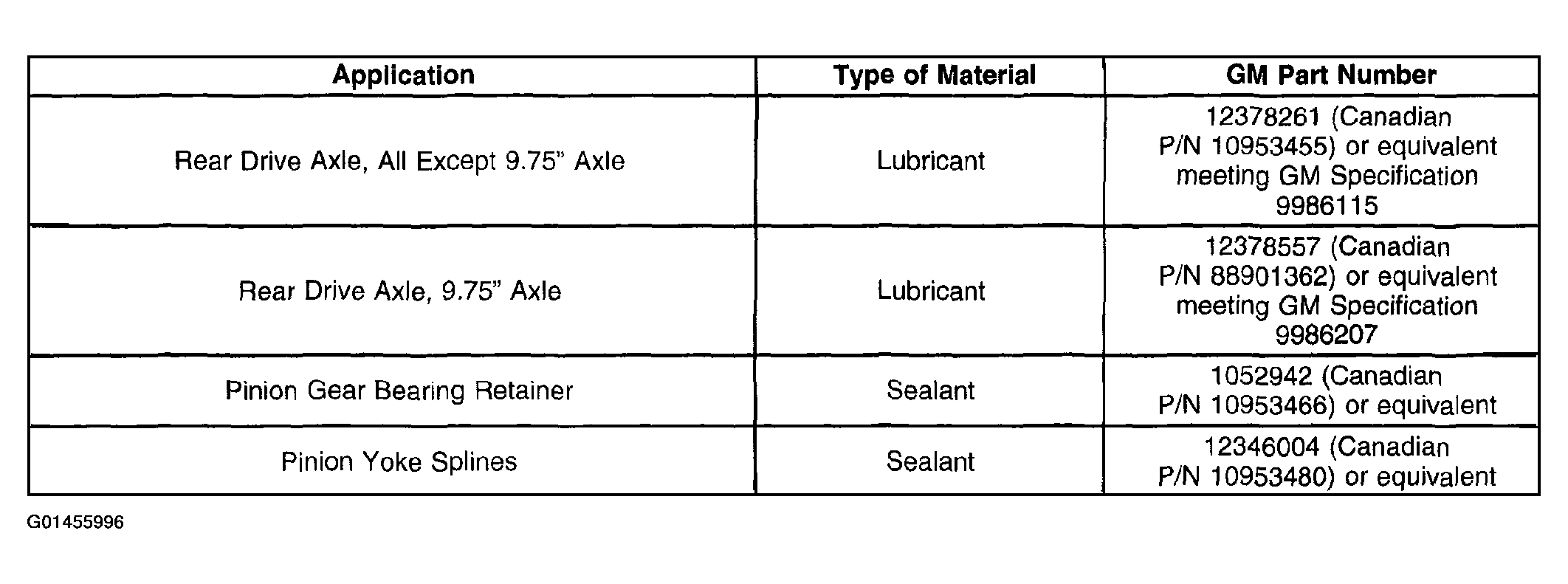

Fig 4: Sealers, Adhesives, and Lubricants

Courtesy of GENERAL MOTORS CORP.
