Test Description

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

2. Command both the ON and OFF states. Repeat the commands as necessary.
3. Tests the coil of the relay for continuity.
4. Tests for voltage at the coil side of the compressor motor relay. The IGN 3 fuse supplies power to the coil side of the compressor motor relay.
5. Verifies that the suspension control module is providing ground to the compressor motor relay.
6. Tests if ground is constantly being applied to the compressor motor relay.
7. Test for a short to voltage or an open in the control circuit of the compressor motor relay.
13. The replacement suspension control module must be calibrated.

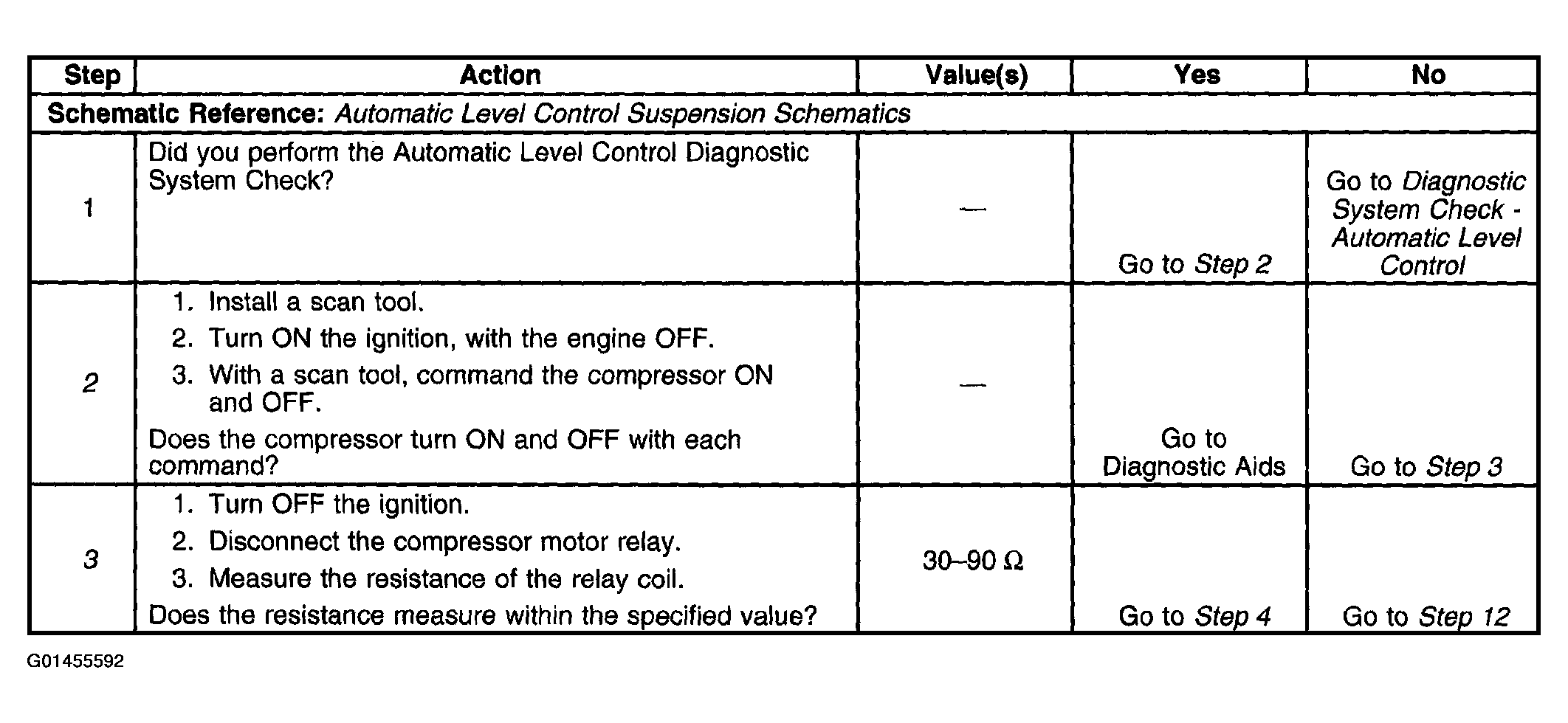

Fig 1: DTC C0655 Diagnostic Procedure (Step 1 To 3)
Courtesy of GENERAL MOTORS CORP.

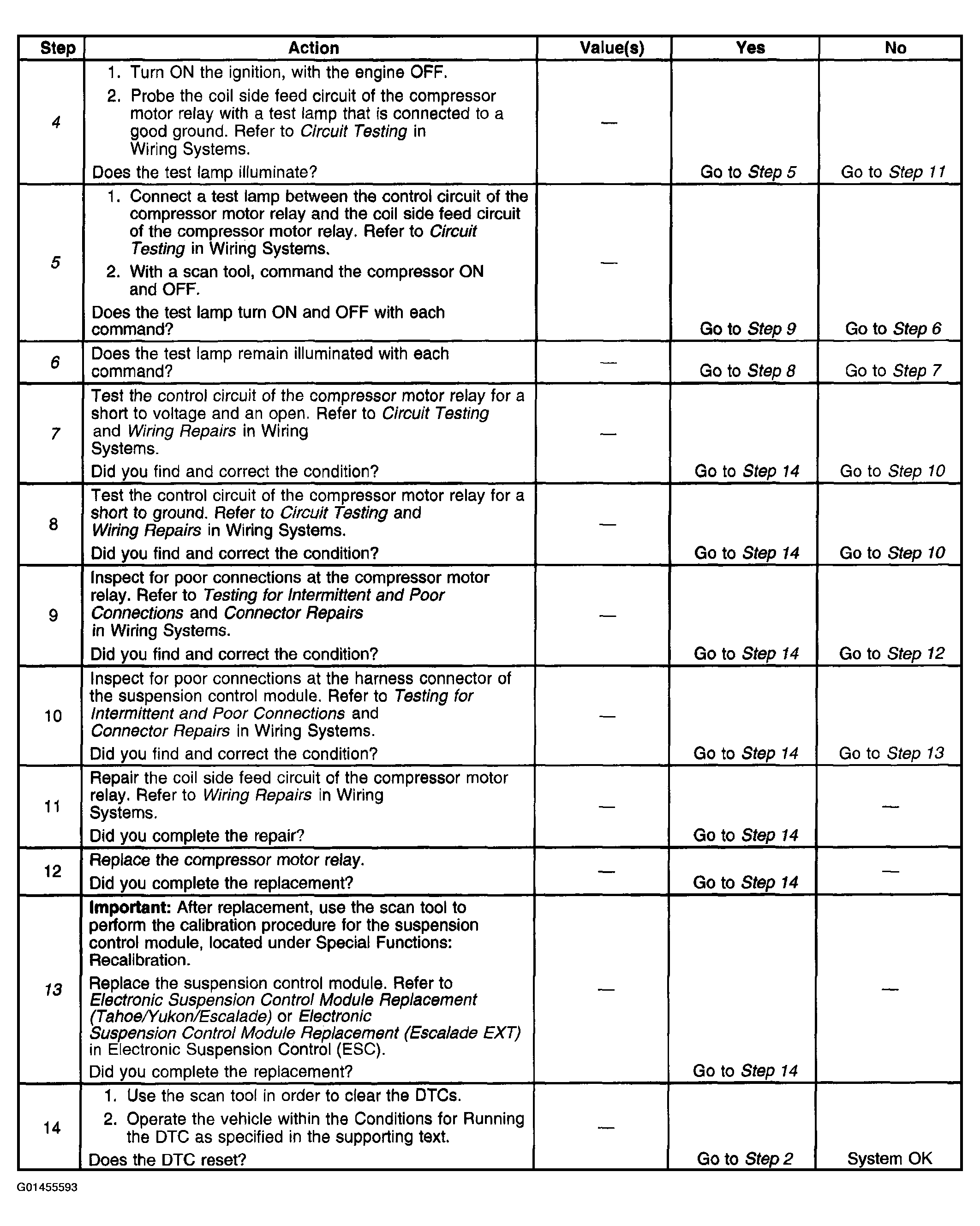

Fig 2: DTC C0655 Diagnostic Procedure (Step 4 To 14)
Courtesy of GENERAL MOTORS CORP.
