Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the lift gate trim panel. Refer to TRIM PANEL REPLACEMENT - LIFT GATE  .
  2. Disconnect the window defogger wiring connectors
  3. Disconnect the key switch connector.
  4. Disconnect the window ajar switch connector.
  5. Disconnect the wiper module connector.
  6. Disconnect the door lock actuator connector.
  7. Disconnect the door ajar switch connectors.
  8. Remove the wiring harness clips.
  9. Pull back the rubber boot on door side grommet to expose plastic snap ring.
  10. Release the snap ring locks.
  11. Remove the wiring harness from door.

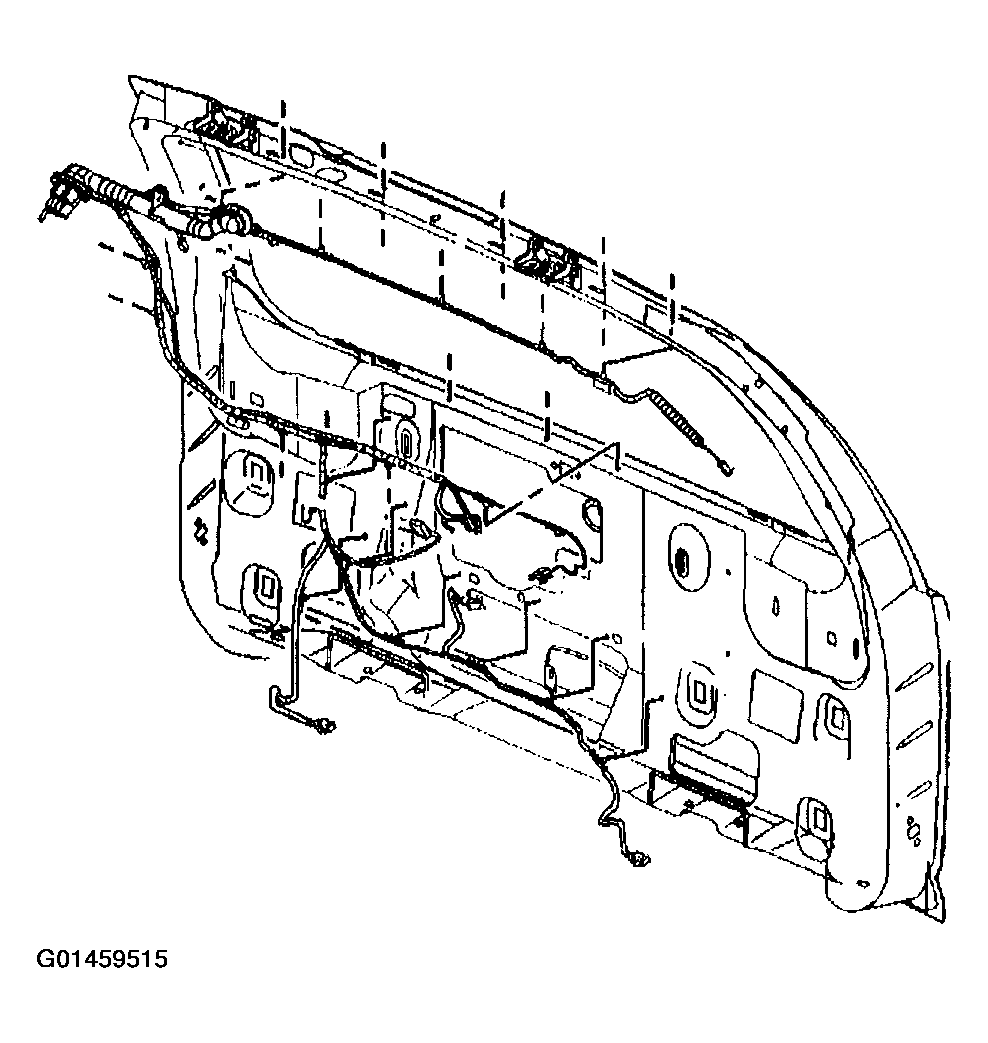

    12. Fig 1: Removing Wiring Harness From Door
    G01459515Courtesy of GENERAL MOTORS CORP.
