Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the harness to door.

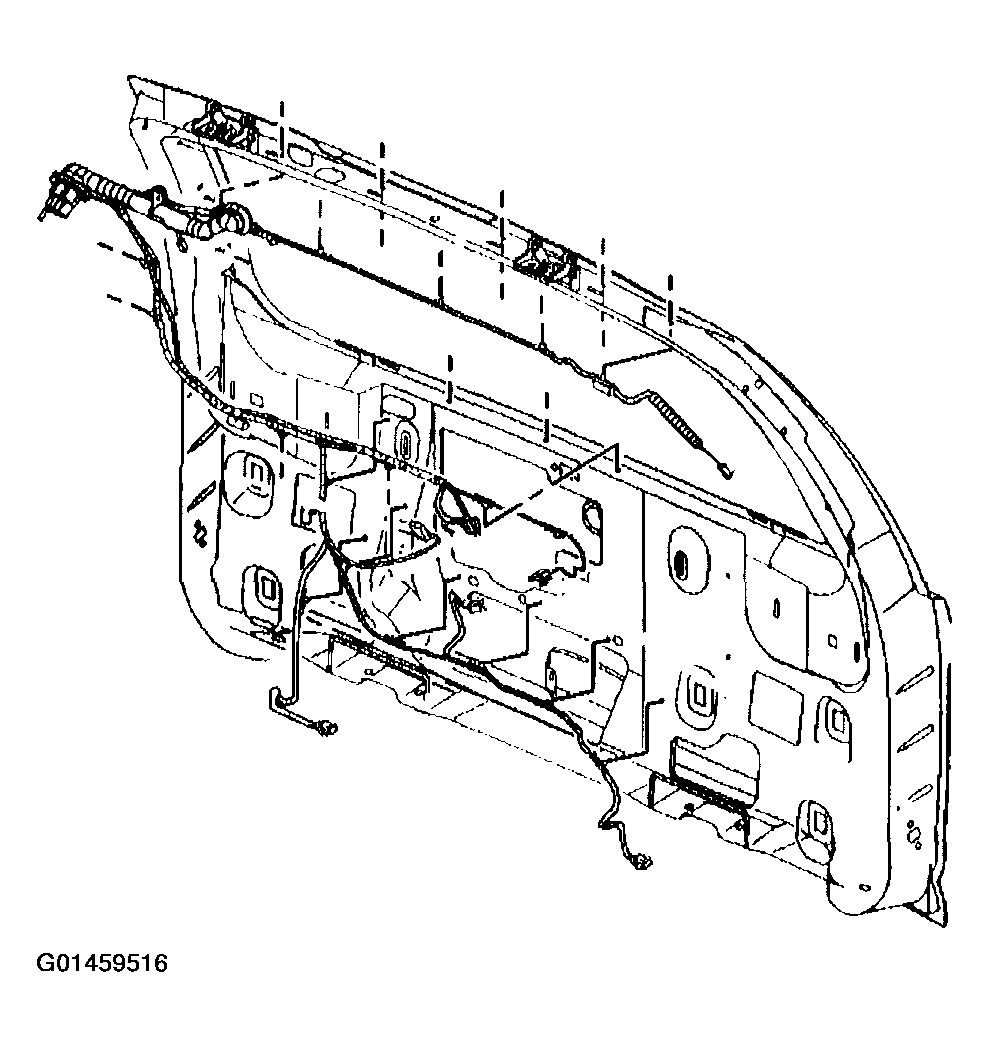

    2. Fig 1: Installing Harness To Door
    G01459516Courtesy of GENERAL MOTORS CORP.
  2. Engage the snap ring locks.
  3. Push on rubber boot over plastic snap ring connector.
  4. Install the wiring harness clips.
  5. Connect the door ajar switch connectors. V3. Connect the door lock actuator connector.
  6. Connect the door wiper module connector.
  7. Connect the wiper module connector.
  8. Connect the window ajar switch connector.
  9. Connect the key switch connector.
  10. Connect the window defogger wiring connectors.
  11. Install the lift gate trim panel. Refer to TRIM PANEL REPLACEMENT - LIFT GATE  .
