Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the retainer strap from the backside of the inner panel extension (1).

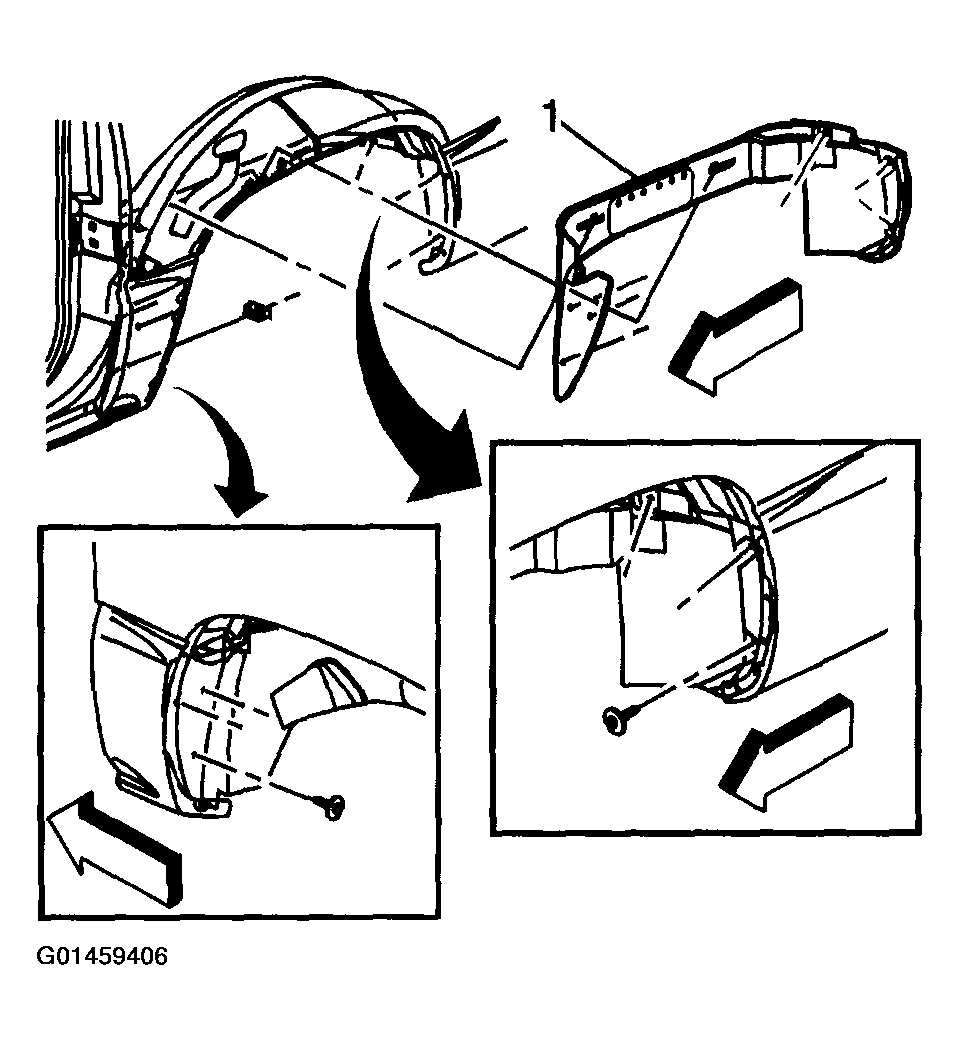

    2. Fig 1: Removing Retainer Strap From Backside Of Inner Panel Extension
    G01459406Courtesy of GENERAL MOTORS CORP.
  2. Remove the retainers from the inner panel extension front.
  3. Remove the retainers from the inner panel extension rear.
  4. Remove the rear wheelhouse inner panel extension from the vehicle.
