Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Important:  Apply the weatherstrip in an environment that is free from dust or dirt that could come into contact with the adhesive backing. Foreign material may cause improper adhesion.

  1. Install the weatherstrip to the mounting surface by completing the following steps:
    1. 1.1. Peel off the backing paper.
    2. 1.2. Press the retainers into place.

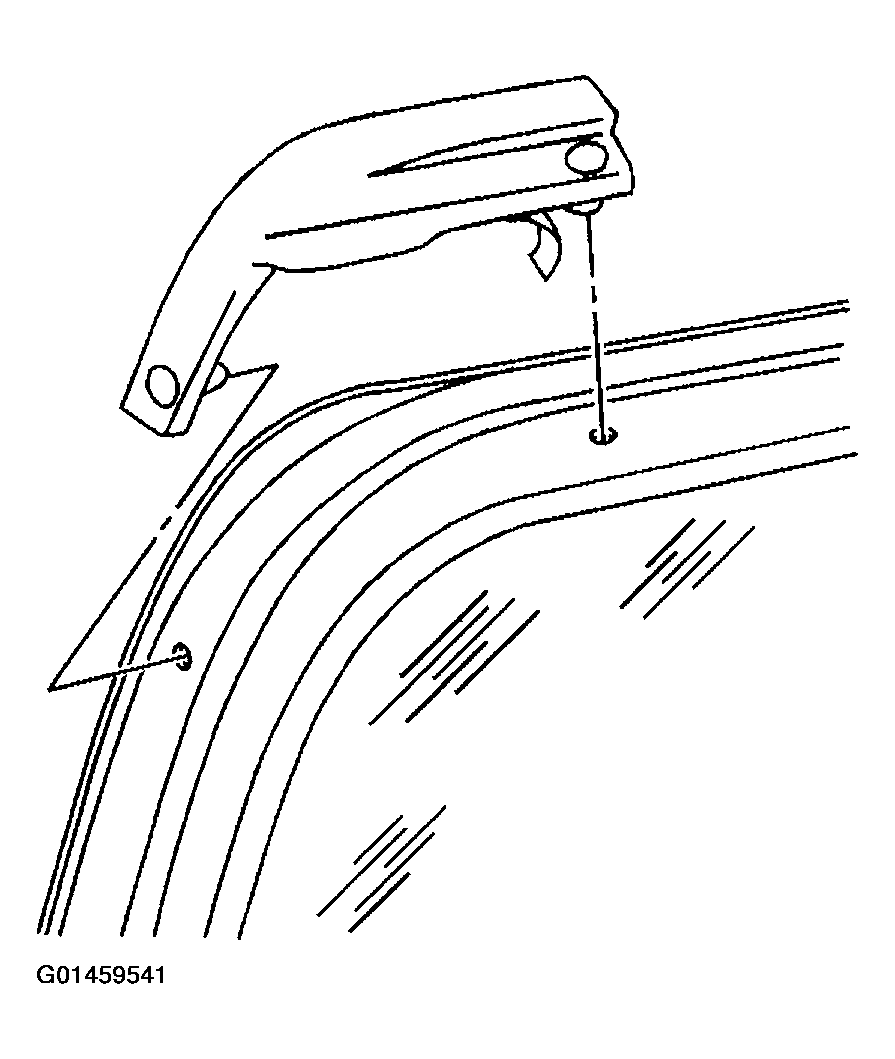

    2. Fig 1: Installing Weatherstrip To Mounting Surface
    G01459541Courtesy of GENERAL MOTORS CORP.
  2. Close the door.
