Installation Procedure
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
Important: To begin the installation of the weatherstrip, ensure the weatherstrip is at a minimum of 21°C (70°F).

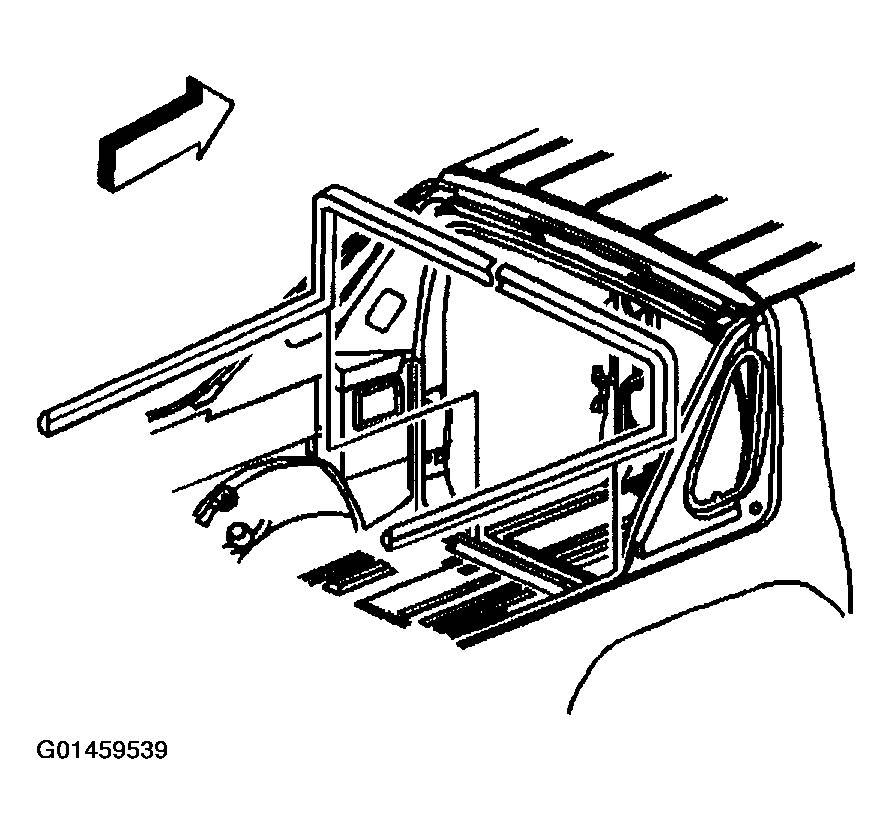

- Starting from one end of the weatherstrip, install the weatherstrip.
- Ensure the corners of the weatherstrip are fully seated.
- Install the midgate. Refer to PANEL REPLACEMENT - REMOVABLE REAR - MID GATE .
- Close the midgate.
- Install the rear removable rear glass panel.
- Inspect the weatherstrip when the midgate is closed and the glass panel installed.
- Set the rear seat in the upright position.
