Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fold down the rear seat.
  2. Remove the rear removable glass panel.
  3. Remove the midgate. Refer to PANEL REPLACEMENT - REMOVABLE REAR - MID GATE  .
  4. Remove the floor hinge molding.
  5. Starting from one end remove the weatherstrip from the vehicle.

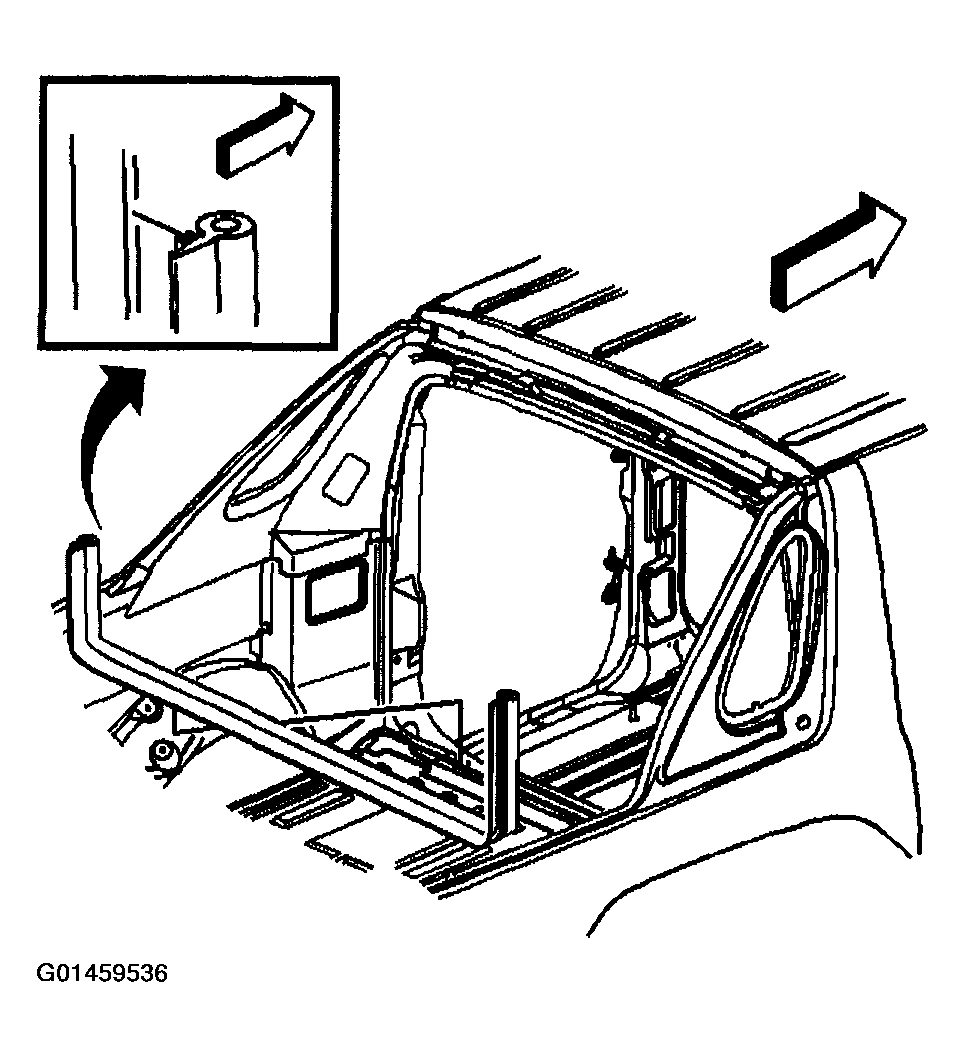

    6. Fig 1: Removing Floor Hinge Molding
    G01459536Courtesy of GENERAL MOTORS CORP.
