Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the liftgate.
  2. Remove the weatherstrip molding from the pinch-weld flange:
    1. 2.1. Firmly grip the weatherstrip.
    2. 2.2. Carefully pull the weatherstrip out and away from the vehicle.

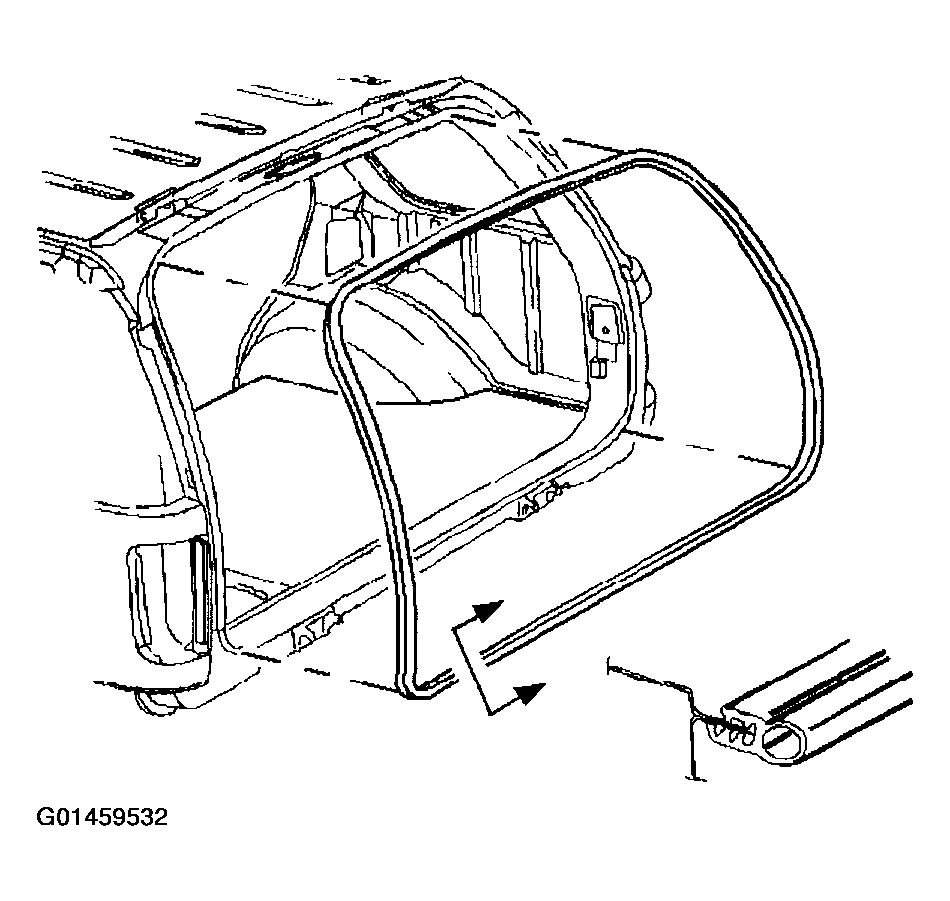

      3. Fig 1: Removing Weatherstrip Molding From Pinch-Weld Flange
      G01459532Courtesy of GENERAL MOTORS CORP.
