Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align paint mark on the weather-strip to outer top center of pinch weld flange.

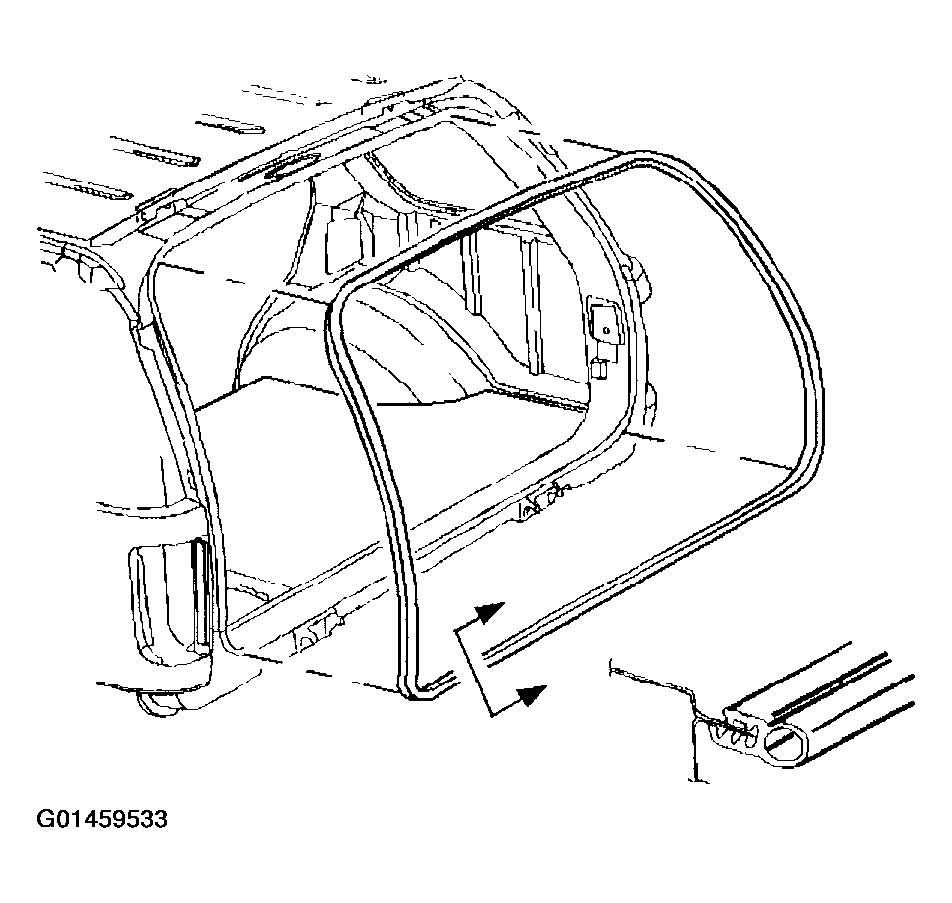

    2. Fig 1: Installing Weatherstrip Molding To Pinch-Weld Flange
    G01459533Courtesy of GENERAL MOTORS CORP.
  2. Push the weather-strip onto the pinch weld flange, beginning from the top center of the endgate opening.
  3. Completely seat the weather-strip around the liftgate opening.
