Installation Procedure
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
Important: Prior to installing the weatherstrip, ensure that the area is clean and free of foreign material.

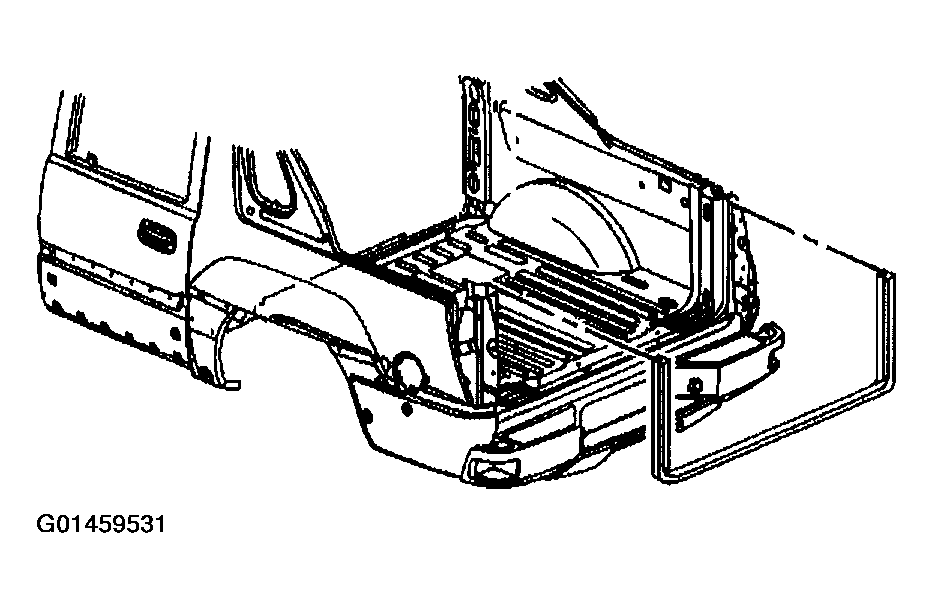

- Starting from either side, install the weatherstrip by inserting the groove to the endgate opening flange
- Close the endgate.
- Inspect for interference.
