Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door trim panel. Refer to TRIM PANEL REPLACEMENT - REAR DOOR  .
  2. Using a flat-bladed tool, break the bond between the sealer and the door.
  3. Pull off the water deflector from the inner door panel.

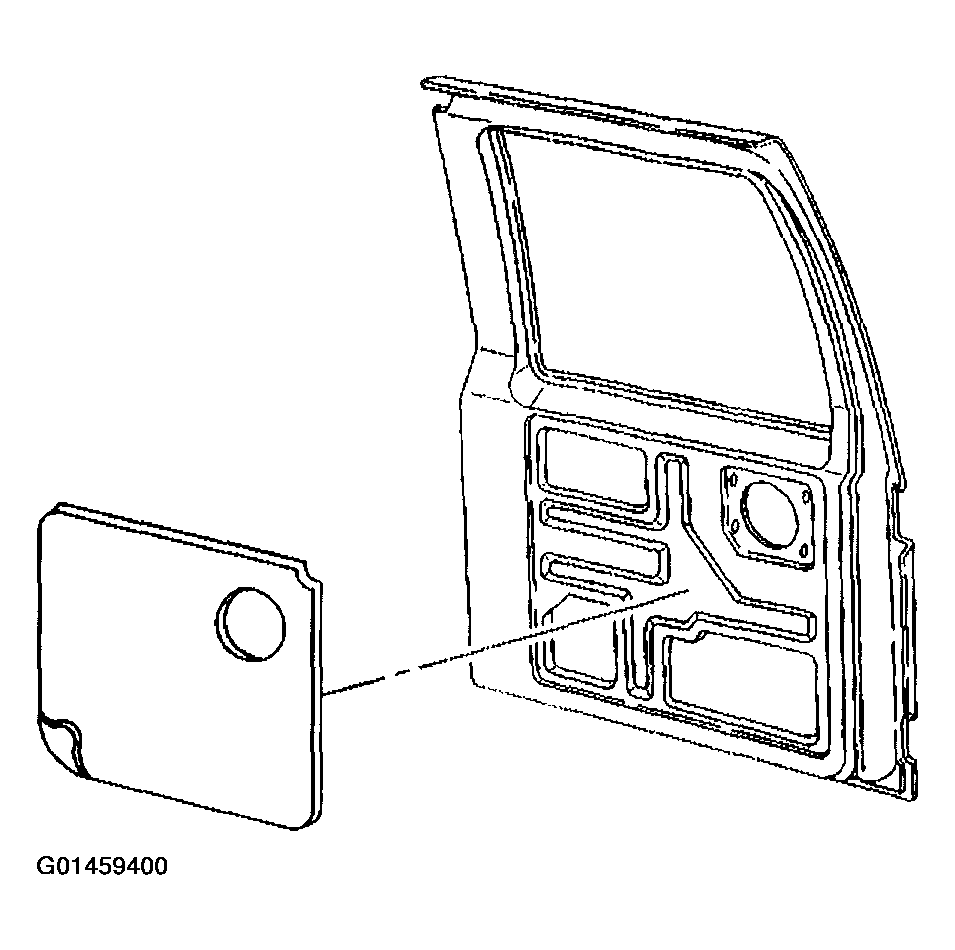

    4. Fig 1: Removing Water Deflector From Inner Door Panel
    G01459400Courtesy of GENERAL MOTORS CORP.
