Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove upper trim panel. Refer to GARNISH MOLDING REPLACEMENT - LIFT GATE  .
  2. Pry gently with a thin-bladed tool in order to release the clips.

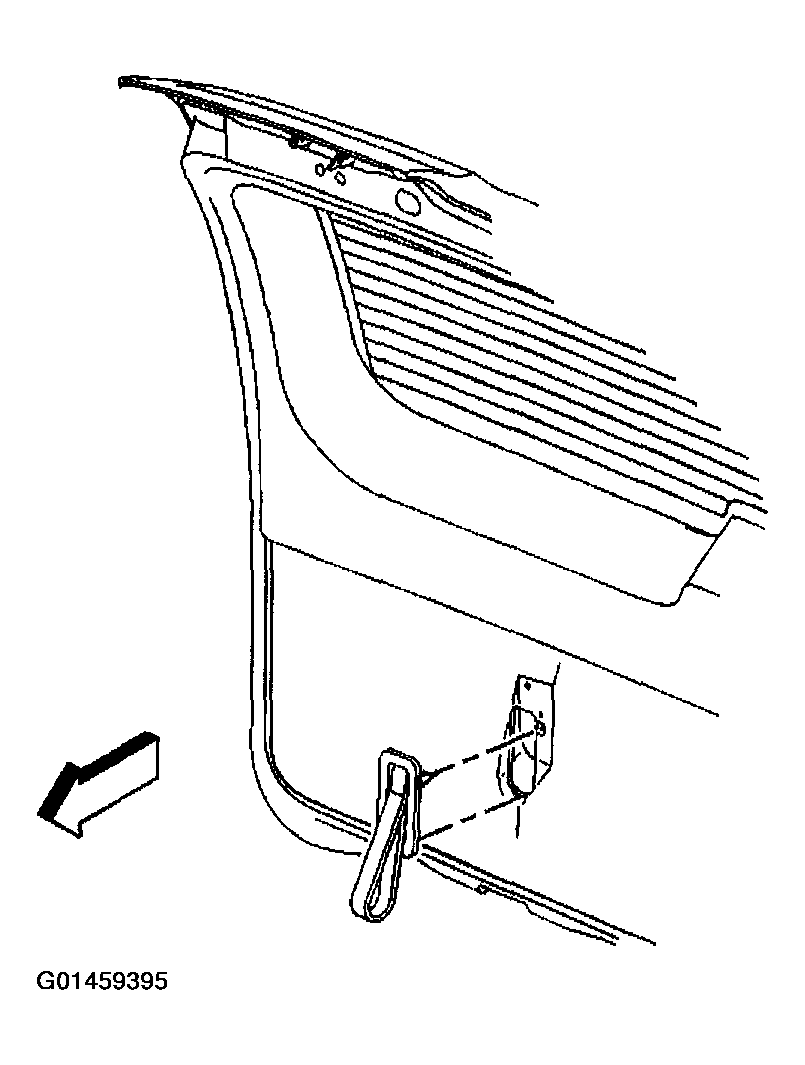

  3. Fig 1: Removing Pull Strap
    G01459395Courtesy of GENERAL MOTORS CORP.
  4. Slide the trim panel upward to disengage mounting hooks.
  5. Remove the trim panel from the liftgate.

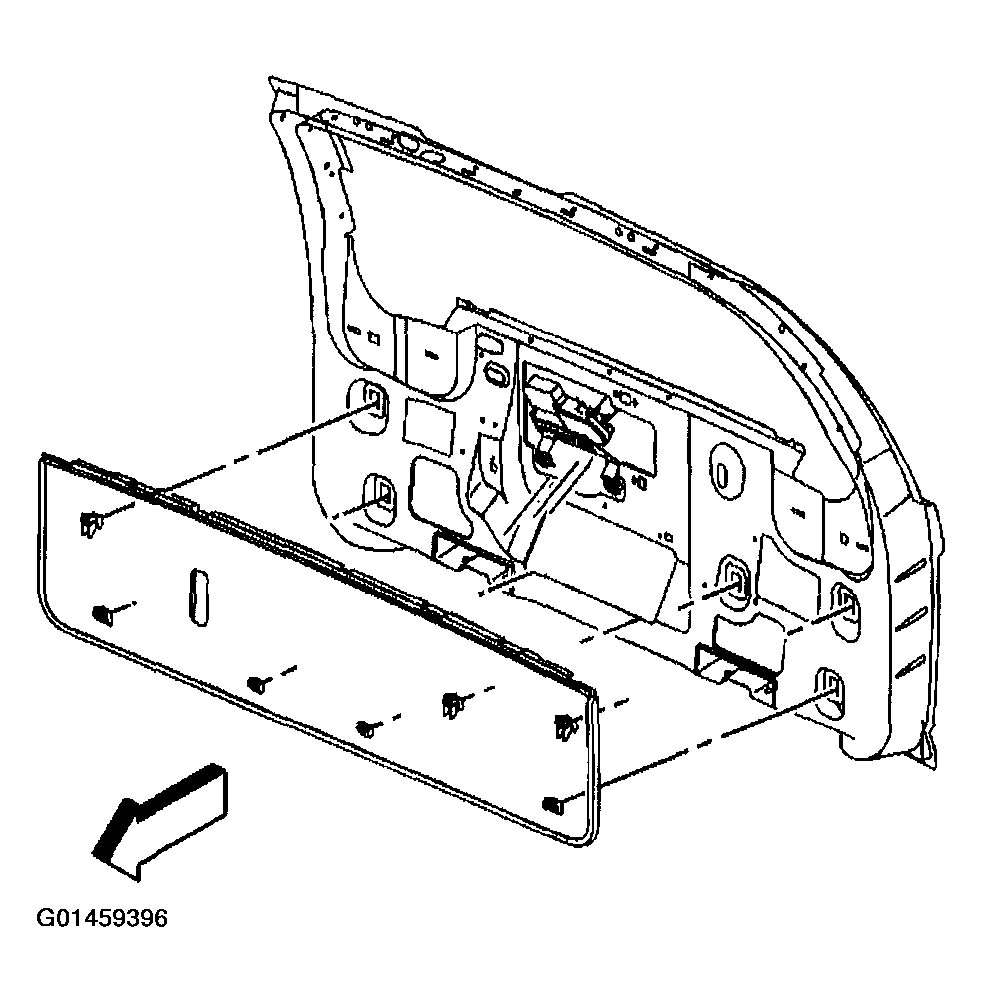

  6. Fig 2: Removing Trim Panel From Liftgate
    G01459396Courtesy of GENERAL MOTORS CORP.
