Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the trim panel to vehicle.
  2. Slide the trim panel downward to engage mounting hooks.
  3. Install the upper trim panel. Refer to GARNISH MOLDING REPLACEMENT - LIFT GATE  .
  4. Install the pull strap.

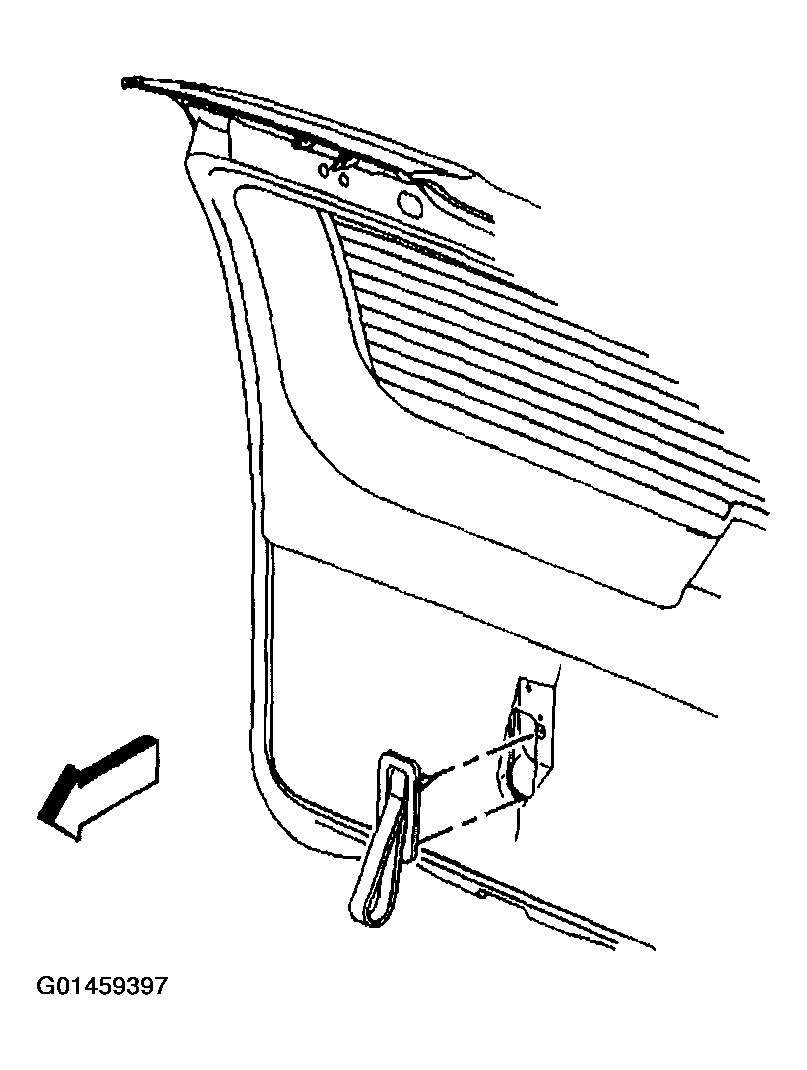

    5. Fig 1: Installing Pull Strap
    G01459397Courtesy of GENERAL MOTORS CORP.
