Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: When a hood hold open device is being removed or installed, provide alternate support to avoid the possibility of damage to the vehicle or personal injury.
  1. Open and support the lift gate.
    NOTE: Apply pressure only at the end of the hood assist rod that you are removing or attaching. Do NOT apply pressure to the middle of the rod because damage or bending will result.
  2. Lift up the retainer clips on the assist rods using a small flat-bladed tool.
  3. Remove the upper end of the assist rods from the ball joint.
  4. Remove the lower end of the assist rods from the ball joint.
  5. Remove the assist rods from the lift gate.

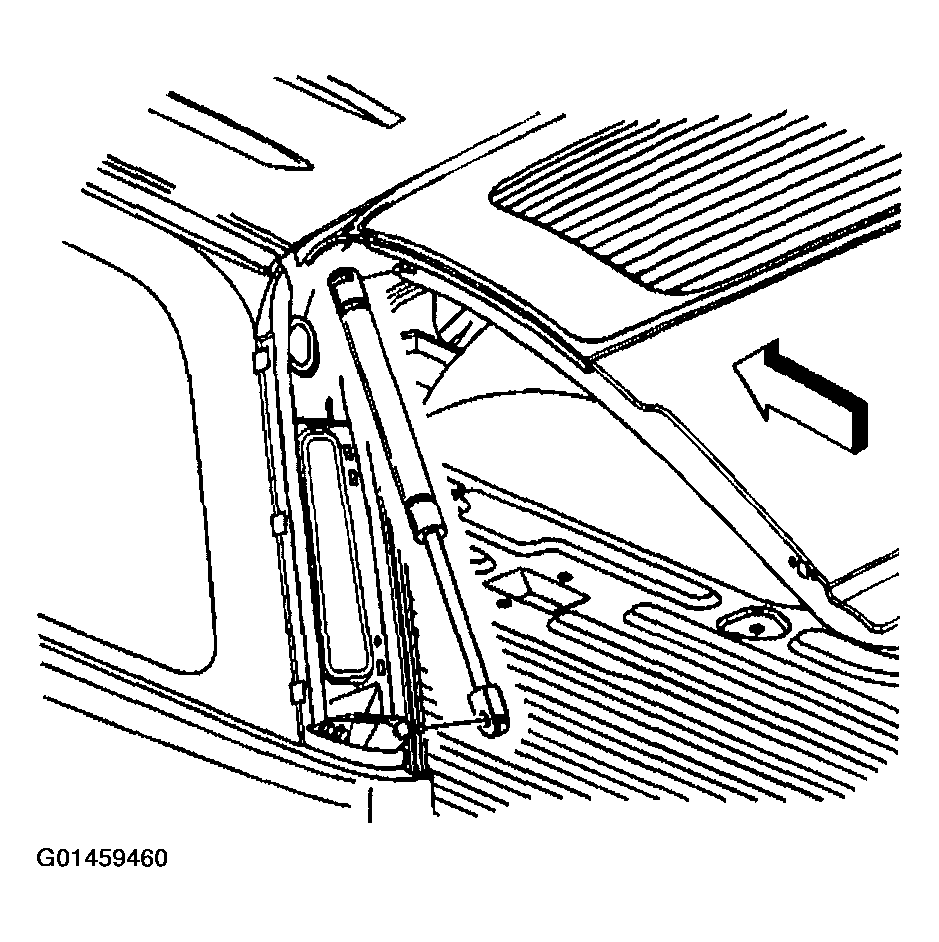

    6. Fig 1: Removing Assist Rods From Lift Gate
    G01459460Courtesy of GENERAL MOTORS CORP.
