Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the assist rods to the lift gate.
  2. Install the upper end of the assist rods to the ball joint. Press into place until fully seated.

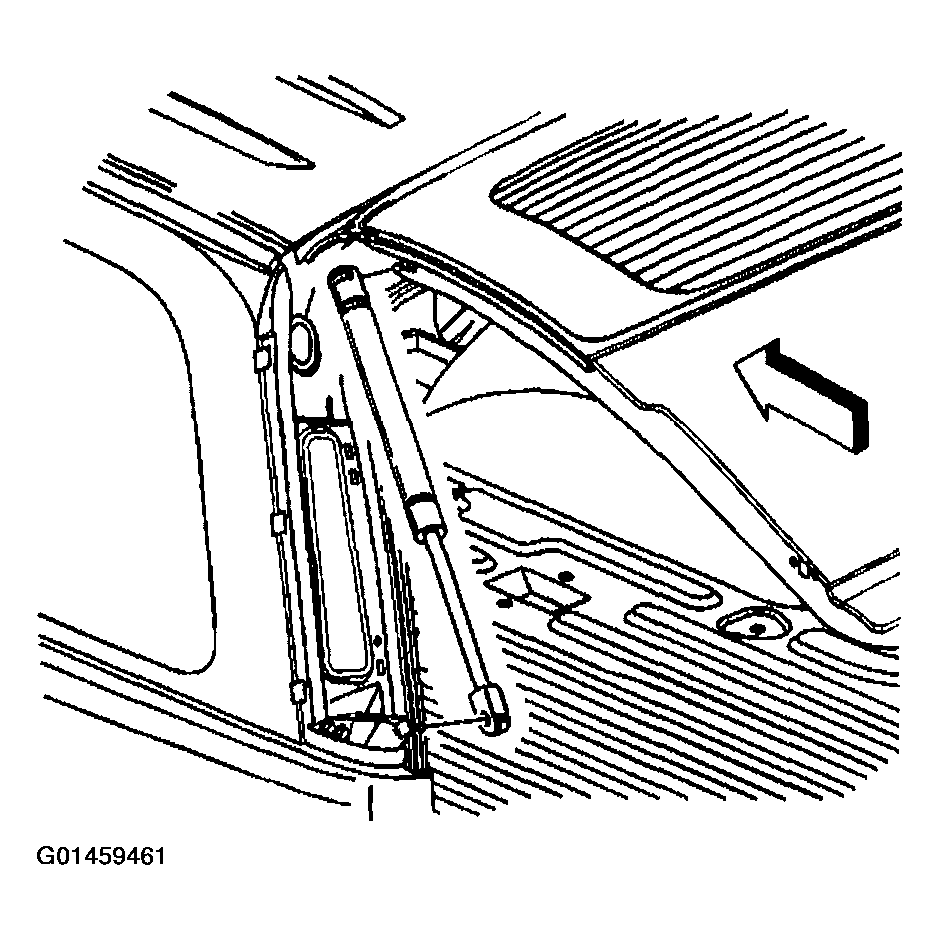

    3. Fig 1: Installing Assist Rods To Lift Gate
    G01459461Courtesy of GENERAL MOTORS CORP.
  3. Install the lower end of the assist rods to the ball joint. Press into place until fully seated.
  4. Remove the support from the lift gate.
  5. Close the lift gate.
